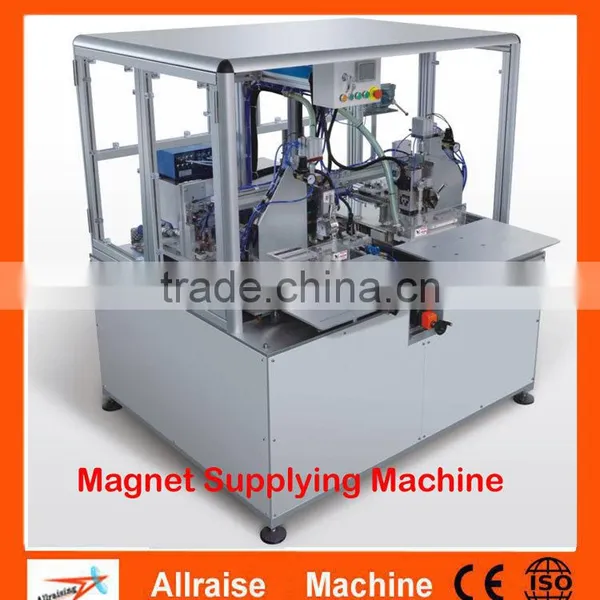

Semi auto magnet supplying machine, magnet insert machine for Hardcover gift
Application of Semi auto magnet supplying machine, magnet insert machine for Hardcover gift
OR-VM800 Semi-automatic magnet supplying machine use particular mechanism to completion of the milling holes, gluing, magnets installation in the cardboard automatically.
Effective substitution the manual installation process in domestic technology .

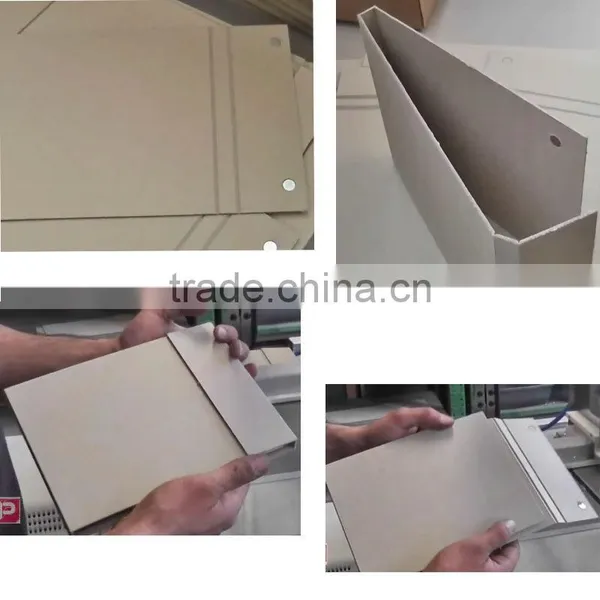

Applicable to book-case, folders, hardcover, gift boxes, calendar and other products for any need magnet assembly.

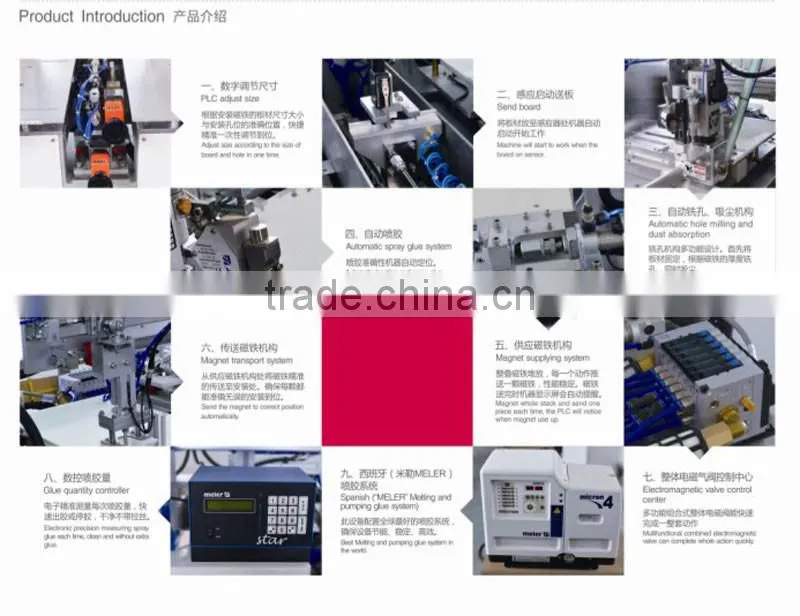

Characteristics of Semi auto magnet supplying machine, magnet insert machine for Hardcover gift
1.Adjust size according to the size of board and hole in one time.
2.Machine will start to work when the board on sensor.
3.At first, fix the board, then milling hole as the thickness of magnet and dust absorption at the same time.
4.Automatic location and spray glue
5.Magnet whole stack and send one piece each time, the PLC will notice when magnet use up.
6.Send the magnet to correct position automatically.
7.Multifunctional combined electromagnetic valve can complete whole action quickly.
8.Electronic precision measuring spray glue each time, clean and without extra glue.
9.Best Melting and pumping glue system in the world.
Specification of Semi auto magnet supplying machine, magnet insert machine for Hardcover gift
| Board thickness | 1.5-4mm |
| Magnet Diameter | 5-10mm |
Magnet thickness |
1-2mm |
Board width |
250-800mm |
Magnet spacing |
240-680mm |
| Production speed | 10times/min |
Power |
2Kw 380V |
| pneumatic consumption | 160NL/min (6bar) |
overall dimensions |
1560 x 1300 x 1700mm |

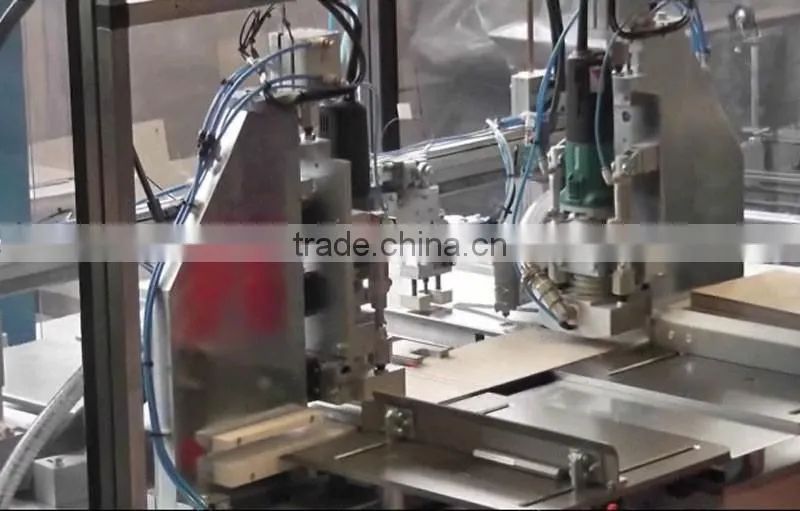

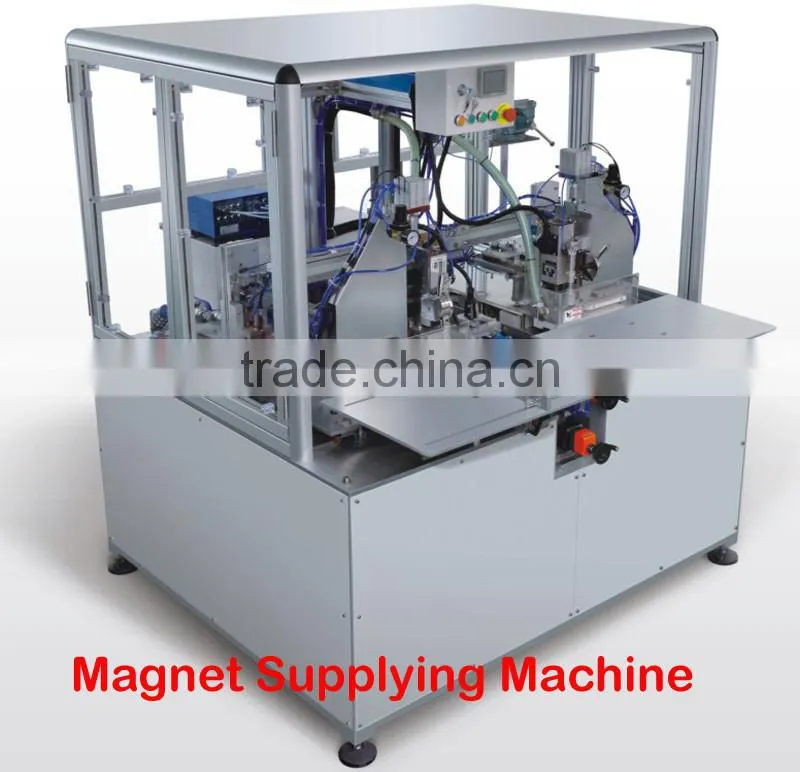

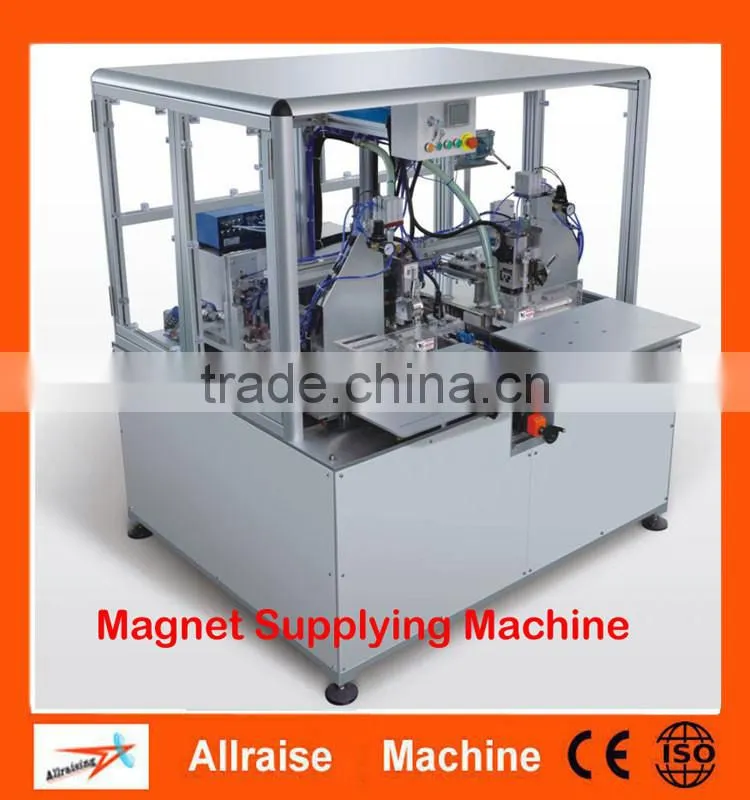

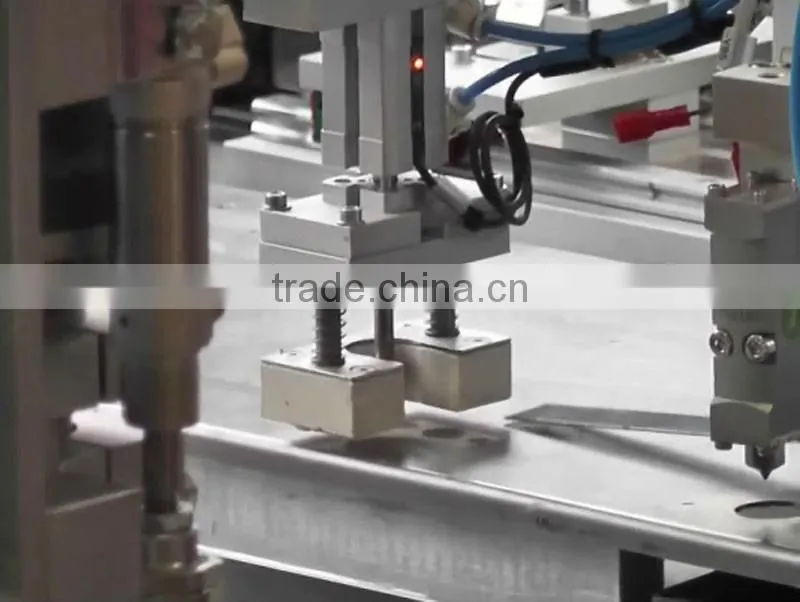

Deatil picture of Semi auto magnet supplying machine, magnet insert machine for Hardcover gift
Packaging & Shipping:
| Packing Detailed | Normal standard packing for Collating Machine |
Delivery Detailed |
According to order |
