Specification
1. Auto 2 Color metal sheet offset printing machine
2. Three printing cylinders are arranged vertically for easy operation
3. Full automatic metal sheet offset printing machine
4. CE

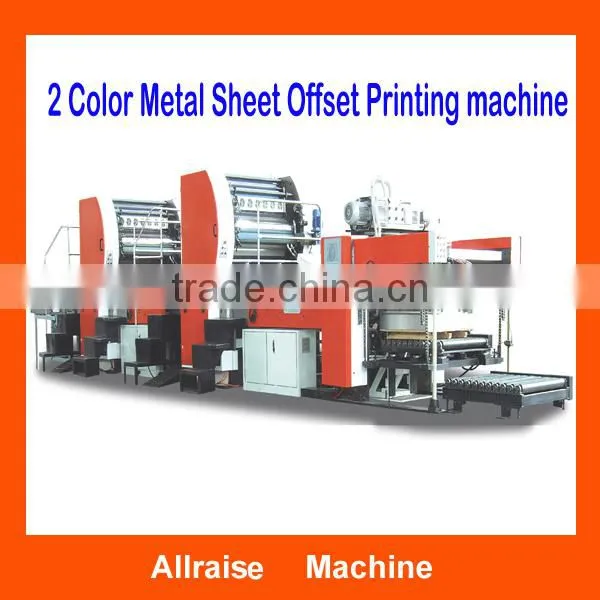

Auto 2 Color Metal Sheet Offset Printing machine
Features of Auto 2 Color Metal Sheet Offset Printing machine
1. Three printing cylinders are arranged vertically for easy operation;
2. Quick gripper for printing plate and rubber cloth to reduce lead time;
3. Drive system of ink/water supply can be separated from the main motor to avoid dry abrasion of the rubber roller;
4. Advanced structure for dynamic pressure adjustment of water/ink roller makes easy operation;
5. Automatic adjustment of synchronization between feeder and main motor by easy operation of push button;
6. Shaft-less drive is used. Four printing couples are controlled by individual motor so they are independent.
7. Synchronized optic cable between printing couples, through virtual main axis as reference, makes the two units quite synchronized.
8. Main drive device with simple structure has only one communication bus to connect PLC and is easy for service;
9. All cylinders/rollers and delivery device and double sheet ejector are coupled pneumatically featuring simple structure and easy operation;
10. Water/ink duct rollers are controlled separately by frequency converter for continuous speed change, and are synchronized/traced with main motor;
11. Reasonable and advanced arrangement of water/ink rollers guarantees printing quality;
12. All three big cylinders use advanced high precision bearing support to ensure quality printing;
13. Hard lining structure ensures solid screen dot;
14. High point closing of jaws with strong gripping force and reliable transfer;
15. Sheet transfer by imported electronic device and standard air cylinder features simple structure and accurate transfer;
16. Stock lift mechanism is operated by worm wheel and chain wheel with strong load capability and without slip;
17. No-sheet detector for stock controls the air pump operation and holds back the stock lift.
Technical parameters of Auto 2 Color Metal Sheet Offset Printing machine
Item |
Single color metal sheet offset printing machine |
2 color metal sheet offset printing machine |
3 color metal sheet offset printing machine |
4 color metal sheet offset printing machine |
Model |
OR1451W |
OR2451W |
OR3451W |
OR4451W |
Max. size metal plate |
1145x950mm |
1145x950mm |
1145x950mm |
1145x950mm |
Min. size metal plate |
712x510mm |
712x510mm |
712x510mm |
712x510mm |
Thickness metal plate |
0.15-0.4mm |
0.15-0.4mm |
0.15-0.4mm |
0.15-0.4mm |
Max. space of printing |
1135x945mm |
1135x945mm |
1135x945mm |
1135x945mm |
Size of printing plate |
1160x1040x0.3mm |
1160x1040x0.3mm |
1160x1040x0.3mm |
1160x1040x0.3mm |
Size of rubber plate |
1175x1120x1.9mm |
1175x1120x1.9mm |
1175x1120x1.9mm |
1175x1120x1.9mm |
Blank side width |
6mm |
6mm |
6mm |
6mm |
Max. speed |
5000 (sheets/hr) |
5000 (sheets/hr) |
5000 (sheets/hr) |
5000 (sheets/hr) |
Height of feeding line |
916mm |
916mm |
916mm |
916mm |
Max. Material feeding |
2.0 (ton) |
2.0 (ton) |
2.0 (ton) |
2.0 (ton) |
Power of main motor |
15KW |
15KW+15KW |
15KW+15KW+15KW |
15KW+15KW15KW+15KW |
Capacity of air pump |
80+100 (m3/hr) |
80+100 (m3/hr) |
80+100 (m3/hr) |
80+100 (m3/hr) |
Dimension(LxWxH) |
7900x2800x2460mm |
12200x2800x2460mm |
14300x2800x2460mm |
22300x2800x2460mm |

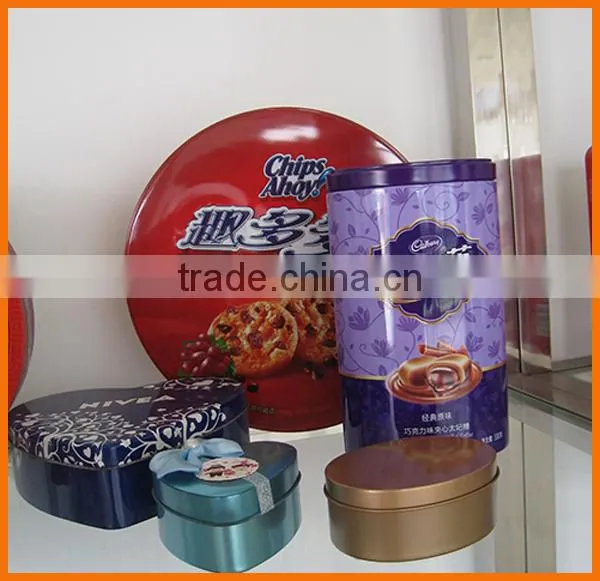

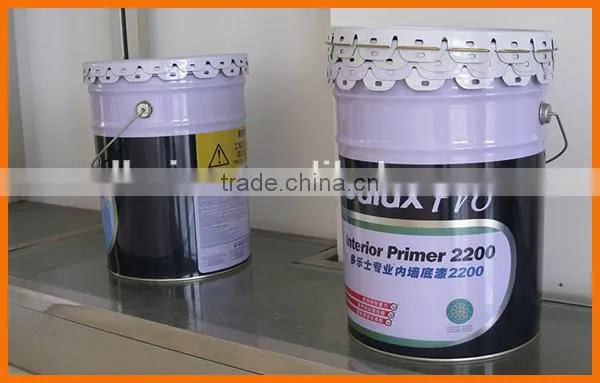

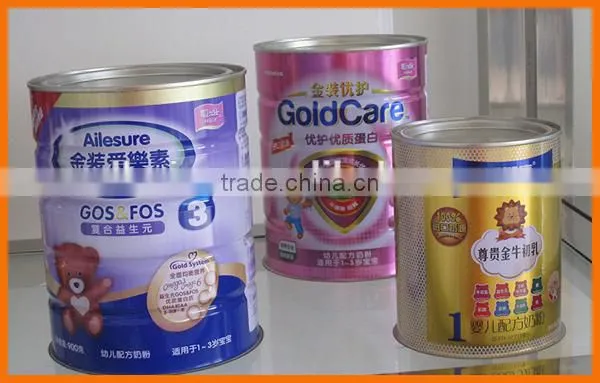

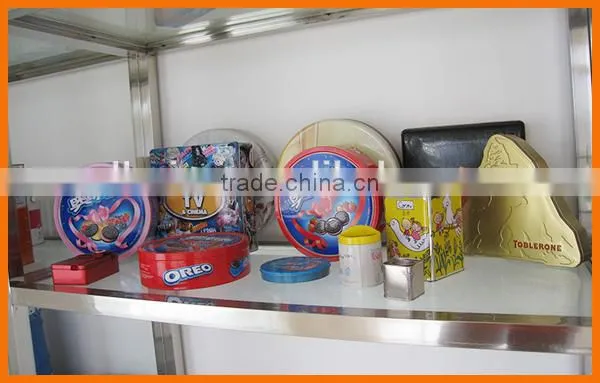

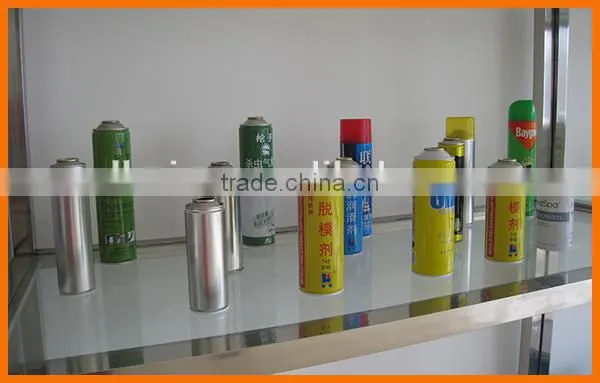

The finished product of Auto 2 Color Metal Sheet Offset Printing machine

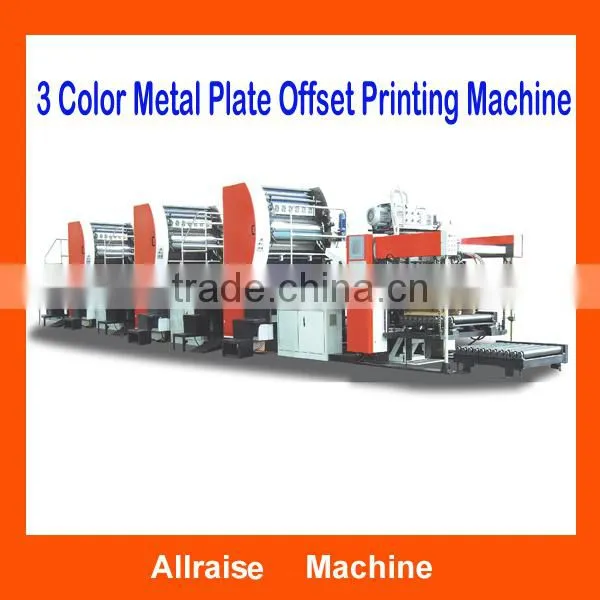

The related product of Auto Metal Sheet Offset Printing machine
Package & Shipping of Auto 2 Color Metal Sheet Offset Printing machine
Packaging Detail: |
| Two 40H O/T |
Delivery Detail: |
Within 7 month after the payment |
Records of delivery of Auto 2 Color Metal Sheet Offset Printing machine
Company information
Zhengzhou Allraise Imp & Exp Co., Ltd have been designing, developing, manufacturing and
marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers,
In order to adapt to world market development, now we do the exporting business directly. After these
years of development, we have high quality professional teams, skillful talents, strong technical force,
strong and independent research and development capabilities advanced production equipment and
a perfect after-sales service system.
"Better Quality, Lower Cost, Preferential service"is the principle which we have been following.
We warmly and sincerely welcome any potential customer to visit our factory any time. Let's work
hand in hand to create a resplendent future.

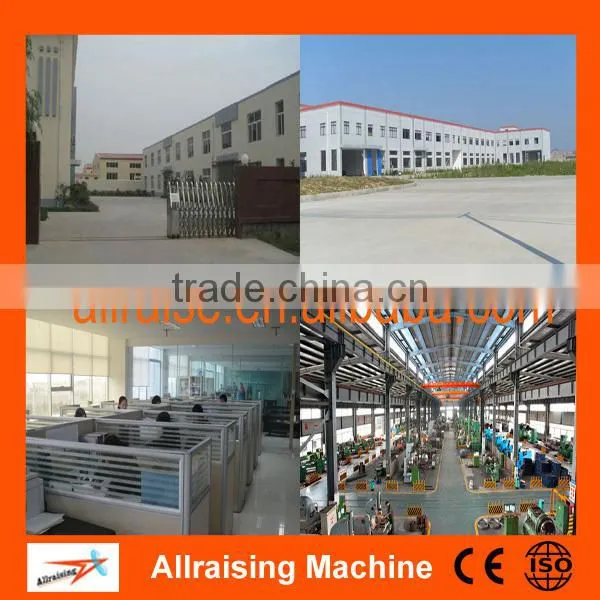

Our factory
Our service
♥ Your quickly reply will be replied within 12 hours.
♥ Fast delivery time and good after service.
♥ Keep the mass production as the sample in high quality
♥ Freight forwarder: faster, safer, and convenient.
♥ Good factory price.
♥ One million business card cutting guarantee.
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample , as long as you afford the express freight.
3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
Please contact me if anything I can do for you!!!
