1. Automatic 4 color offset printing machine price in India
2. Easy to operate, precise location, separating damping from inking.
3. High-quality, reasonable price.
4. Quickly service after sales
Specifications of offset printing machine
| Model | OR447IINP |
| Max. sheet size | 470 x 365mm |
| Min. sheet size | 140 x 90mm |
| Max. print format | 450 x 345mm |
| Plate size | 470 x 395 x 0.15mm |
| Blanket size | 466 x 415 x 1.95mm |
| Paper size | 28-250g/sqm |
| Max. speed | 7000 sheets/hour |
| Ink roller | 14pcs (3 forme inking rollers) |
| Dampening roller | 5pcs (2 forme dampening rollers) |
| Numbering device | Straight type (horizontal): 49 heads Max. |
| (7 heads on a ring × 7 rings on a shaft) | |
| Convex type (vertical): 40 heads Max. | |
| (5 heads on a ring × 8 rings on a shaft) | |
| Letter press device | Cylinder type: 90 × 345mm Max. |
| Mounting ring type: 30 × 40mm Max. | |
| Perforating device | Cross perforation: Min 25mm |
Vertical perforation: 5mm (blade-perfo type) 2mm (rotary-perfo type) | |
| Ink rollers for NP unit | 6pcs(2 former inking rollers) |
| Speed adjustment | Frequency converter |
| Gripper margin | 8-10mm |
| Inking rollers | 14pcs per unit(3 form) |
| Dampening | 4pcs per unit(1 form) |
| Power supply | 220v/50Hz |
| Main motor | 2.2kw |
| Air pump motor | 0.55kw |
| Weight | 2200kg |
| Package dimension | 4010(L) x 935(W) x 1340(H)mm |
Features of offset printing machine
1. Easy operation: Water & ink feeding and impression are all operated by one switch
dividedly. The impressing roller on/off is controlled by electric eye accurately and reliably.
2. Precise location: Front guide, side-pulled-guide, feed-table tune-up, plate tune-up, ensure
locating precision of paper sheets and perfect printing results.
3. Separating damping from inking: Damping system is separated from inking system.
It can adjust damping and inking flexibly, which can content the request of different
prints for water and ink.
4. Presetting counter: It adopts electromagnetic presetting counter. If the printing of pre-setting finish, the input stop automatically.
5. Overlap detection: It can exclude the trouble such as overlap and non-stop printing.
6. The whole machine is controlled by PLC, with the function of stopping printing automatically when paper is blocked.
7. For Paper transporting from two units, one big cylinder (2nd generation) or 2+1 small
cylinders are optional.
8. Numbering and Perforating Function added.(Vertical and Horizontal)

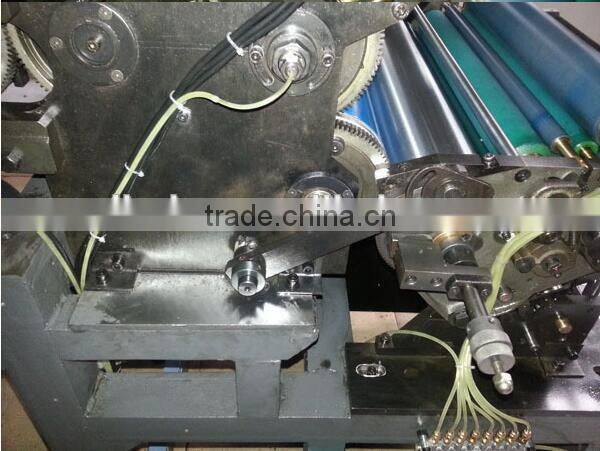

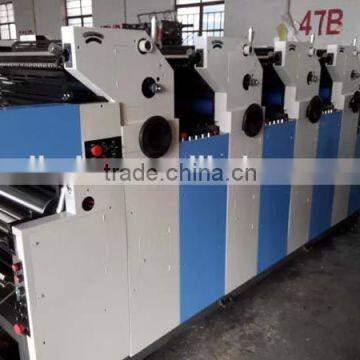

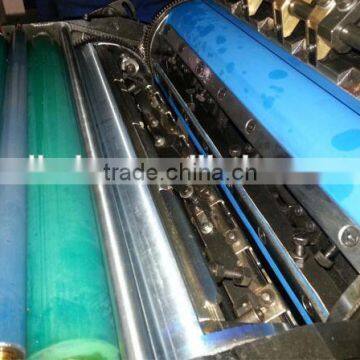

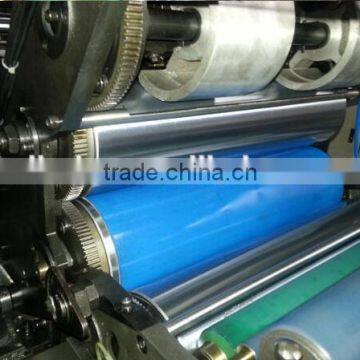

Detail shows of offset printing machine
Applications of Automatic 4 color offset printing machine
Automatic 4 color offset printing machine price in India is used in school and small printing factory widely for the task as exam papers, lectures, receipts, flyers, bills, non-setting adhesives.
Related Porducts
Please click here to view more offset printing machine
Packaging Details: | wooden case |
Delivery Detail: | 5-15 days after receiving 50% advance payment |
One of B/L
Company information
Zhengzhou Allraise Co., Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. Firstly we mainly sever china mainland customers,
In order to adapt to world market development, now we do the exporting business directly. After these
years of development, we have high quality professional teams, skillful talents, strong technical force,
strong and independent research and development capabilities advanced production equipment and
a perfect after-sales service system.
"Better Quality, Lower Cost, Preferential service"is the principle which we have been following.
We warmly and sincerely welcome any potential customer to visit our factory any time. Let's work
hand in hand to create a resplendent future.
Our Customers
Factory corner
Our services
Your quickly reply will be replied within 12 hours.
Fast delivery time and good after service.
Keep the mass production as the sample in high quality
Freight forwarder: faster, safer, and convenient.
Good factory price.
One million business card cutting guarantee.
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent, please call us or tell us in your email so that we will regard your inquiry priority.
2) How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. We will provide you sample, as long as you afford the express freight.
3) What about the leading time for mass production?
Honestly, it depends on the order quantity. Normally, 15 days to 20 days after your deposit if no tooling needed.
