High Precision 4 Colors Offset Printing Machine
Technical Specifications of High Precision 4 Colors Offset Printing Machine:
Product name |

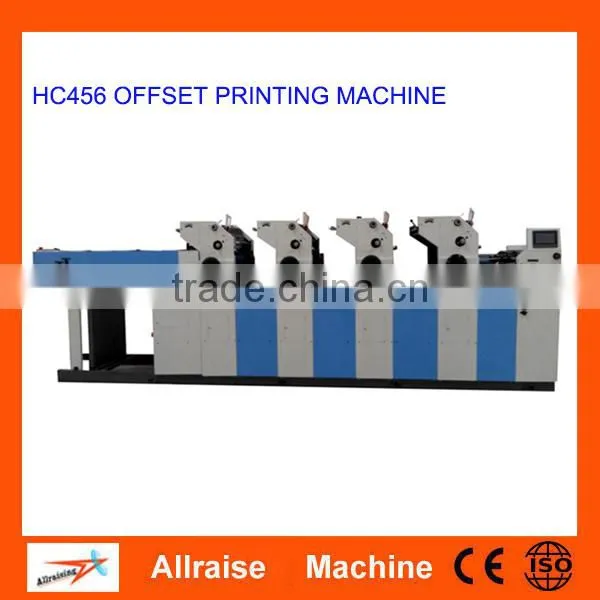

560mm 4 Color Auto Offset Printing Machine HC456(DPNP) Price |
Model |
HC456(DPNP) |
Max sheet size |
560*400mm |
Max printing area |
550*375mm |
Paper sheet weight |
28-300g/sqm |
Printing speed |
2000-7000sheets/hour |
Plate size |
560*420*0.15mm |
Blanket size |
560*460*1.95mm |
Form roller number |
Three ink two water |
Power Of main motor |
3KW |
Power of air-pump motor |
0.55KW |
Voltage |
380V/50HZ |
Machine weight |
3200kg |
Overall dimensions |
4300*1000*1490mm |
Main Features of High Precision 4 Colors Offset Printing Machine
1.Three point suspension technology and pneumatic clutch pressure:
The adjustment of rubber roller will not affect each other, which protected the roller bearing properly.
2. External high-precision helical gear driver and walk-way iron cylinder:
To ensure a stable pressure of the printing and delivery of a smooth rotating, to ensure the large printing and very clear mesh work print or copy well, including the small text printing.
3. The way of self-lubricating:
Ensure that all gears and bearings both in the boot of lubrication at the same time.
4. The whole unit of the ink supply Composed by 15 rollers:
The system responds quickly, with good ink absorption function. The ink duct controlled by the ink sub control key, also can be adjusted by separately, will not affect each other to ensure the enough ink reservoir and uniformity smoothly.
5. With the professional high-quality and reliable feeding system:
Ensure the paper feeding smoothly and accurately. Semi-automatic version Loading, printing version was controlled or adjusted electronically, this shorten the time of version installed and adjusted, reducing the requirements for operators.
6. With the function of synchronization hydro power:
When the speed of host-run version changes, then motor of lubricating also changes the speed at the same time.

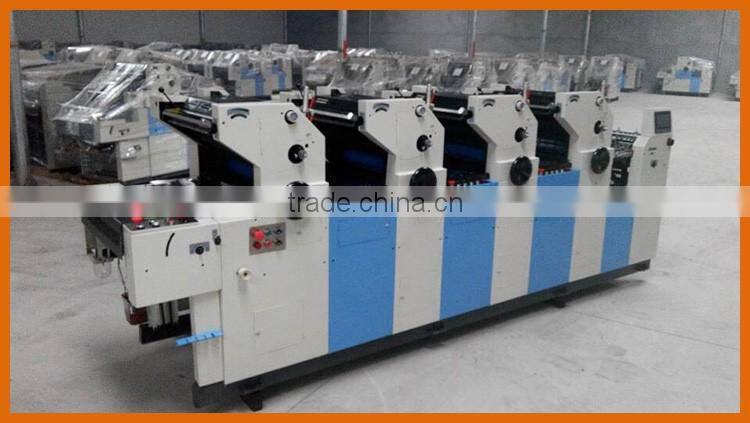

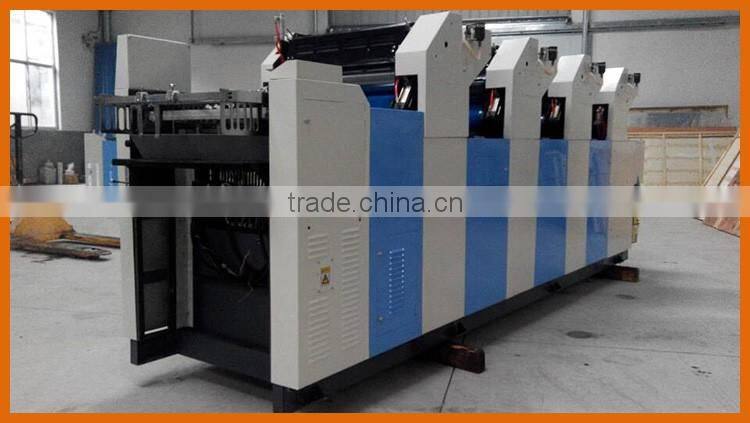

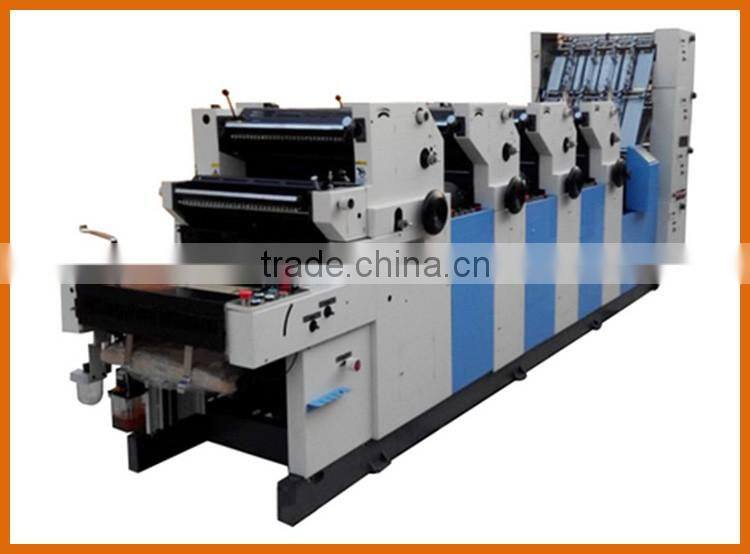

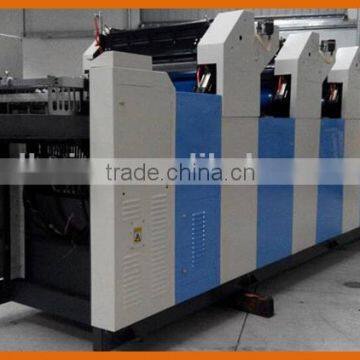

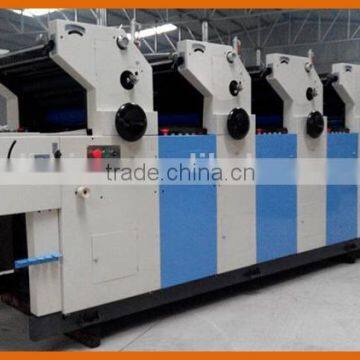

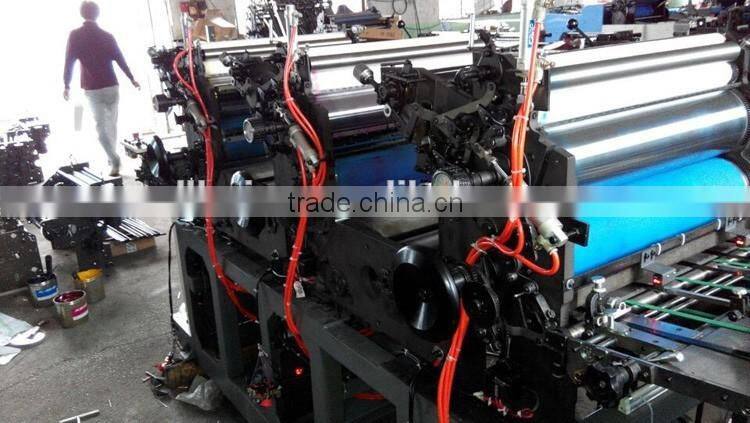

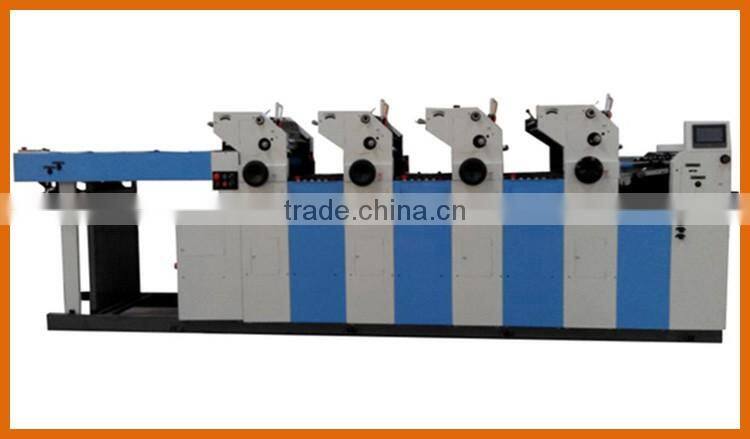

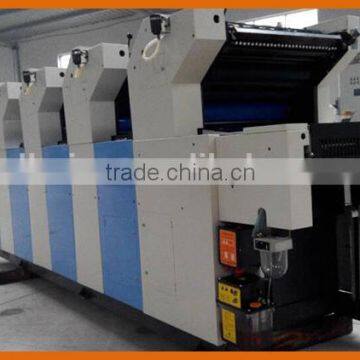

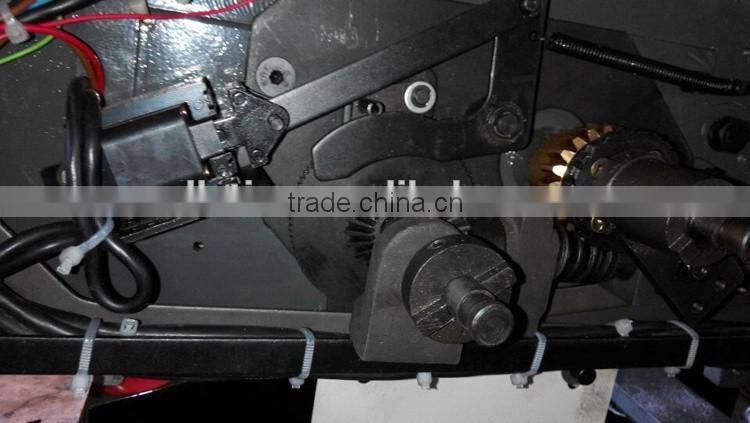

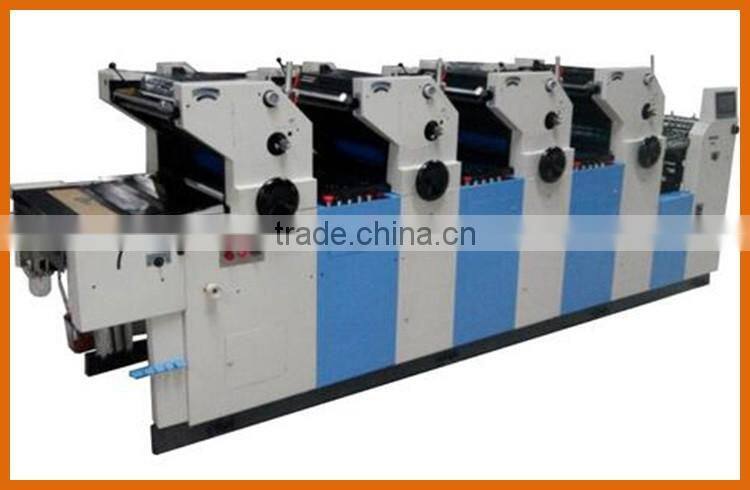

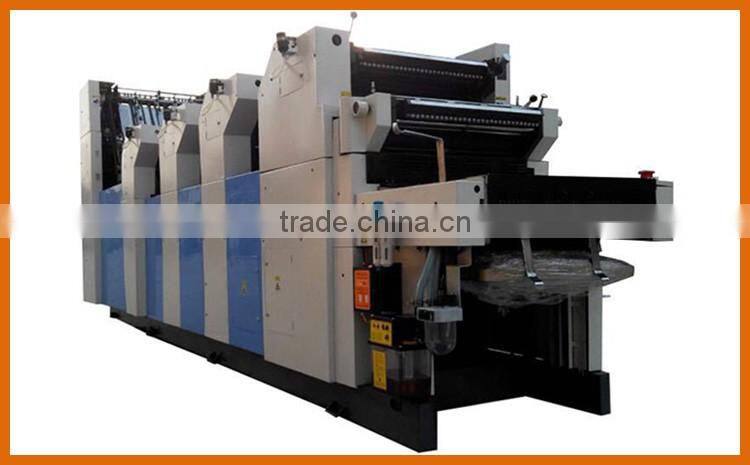

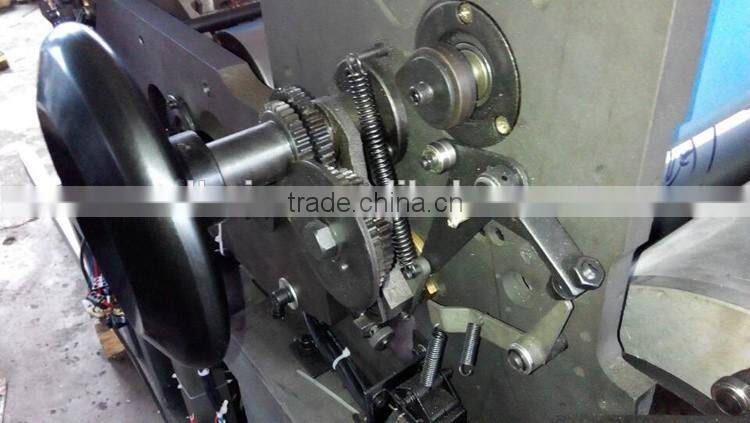

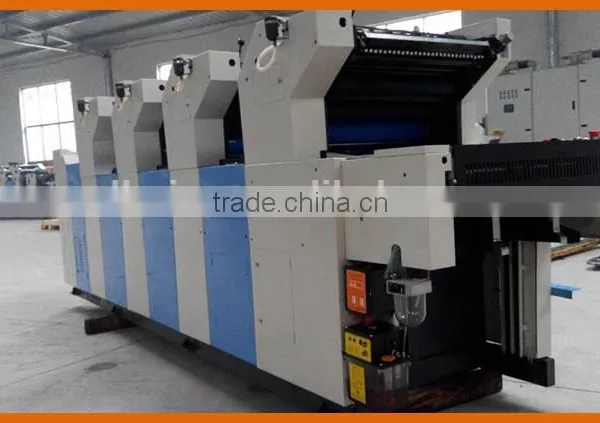

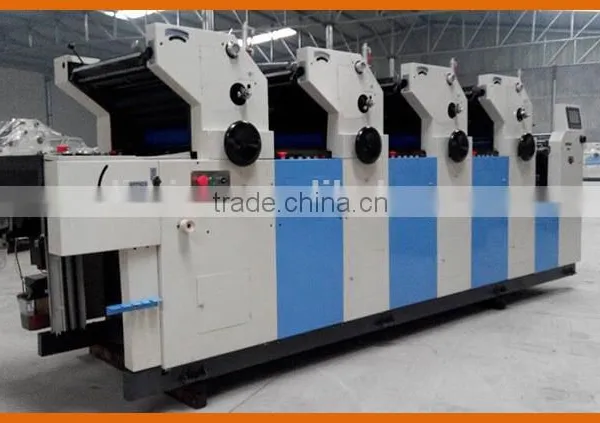

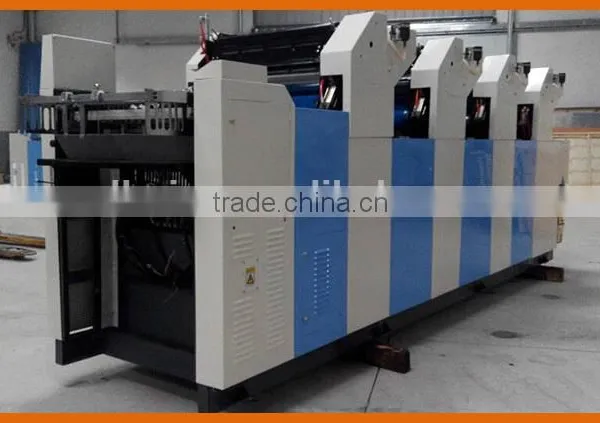

Detailed Images of High Precision 4 Colors Offset Printing Machine
Packaging Detail: |
Export international wooden case. |
Delidery Detail: |
15 days after the payment. |
1. professional person reply your questions.
2. one year warranty for you.
3. perfect and careful after-sale service.
4. 24 hours on-line service for you.
Certificate
Zhengzhou Allraise company Ltd have been designing, developing, manufacturing and marketing machinery for more than 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
If you have any question, please contact me freely.
