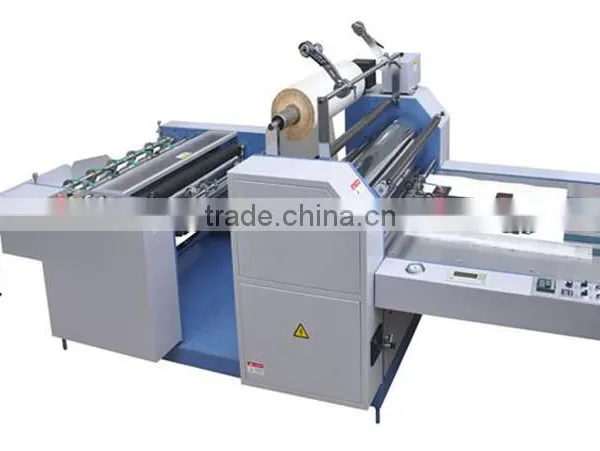

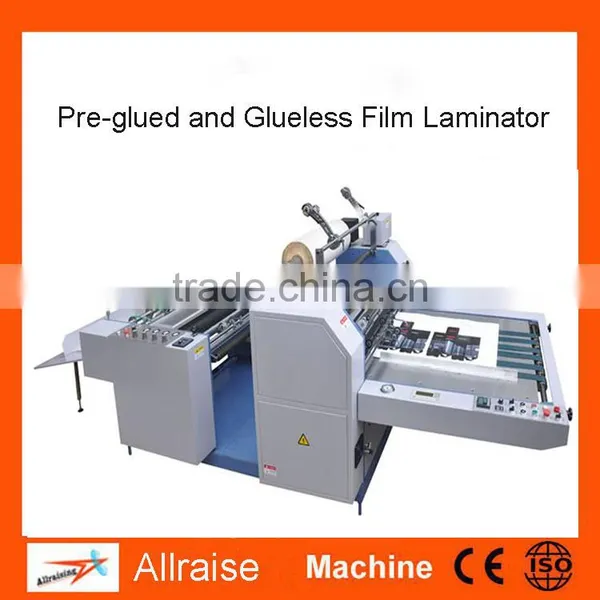

SEMI-AUTO glueless and pre-coated thermal film laminating machine
Introduction:
Semi-auto laminating machine is a competitive laminator which is designed and manufactured elaborately basing on the combination of advanced technology and the international similar products. This machine is a kind of dual-function product which is for both pre-glued and glueless film. It has compact structure, easy operation and high degree of automatization. All the main components adopt the international noted brands. The electrical and pneumatic devices are controlled by PLC system, and can be operated by only one person. The operator can realize both laminating and separating processes at the same time as long as the size of workable paper is input on the text screen.
Parameters of SEMI-AUTO glueless and pre-coated thermal film laminating machine :
Model |
ORC-920C |
Max laminating Width |
920mm |
Max laminating Speed |
0-30m/min |
Paper Thickness |
100-500g |
Power |
22KW |
Dimensions |
4600*1760*1500mm |
Total Weight |
1900kg |

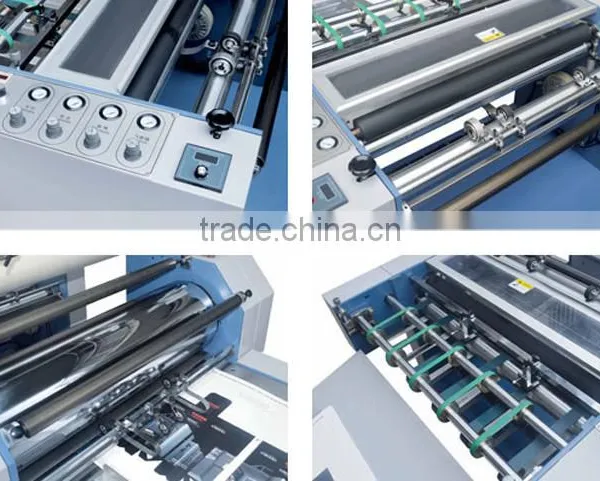

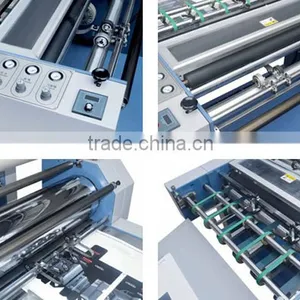

Features:
1.Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine's running stable.
2.One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
3.Manual paper feeding.
4.Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
5.High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
6.Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
7.Air expansion shaft releases film, and precision film release, and also makes the loading and unloading of film roll more convenient.
8.The combination of air expansion shaft and braking device can adjust film release tension and speed.
9.Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
10.Film perforating wheel perforates film edge for the automatic cut of laminated paper.
11.Anti-curvature device: when going through anti-curature device, the laminated paper shall be leveled at conce and wont curve again after cut.
12.Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the wirkable paper size on the text screen.
13.The cut paper is sent to paper receiving table. And the table height is adjustable upon application
Welcome to visit our company website to visit our products, PLEASE Click here!
Packing Detail |
Strong wooden case |
Delivery Detail |
3-7days after receiving the prepayment |
Mode of transportation |
By sea,By Air, By Express |
Port of shipment |
Main port in China mainland |
Terms of payment |
L/C,T/T,Western union,Paypal/Escrow |
♥ Presale: product consultation and solution design can be provided.
♥ Sale: spares parts can be provided at a certain discount.
♥ After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
Zhengzhou Allraise Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Better Quality, Lower Cost, Preferential service" is the principle which we have been following. We warmly and sincerely welcome any potential customer to visit our factory any time. Let's work hand in hand to create a resplendent future.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other businesses temporarily. So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q: Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture. You will get lower.
IF you have any question, please contact me freely!
