Aluminum Layer Truss System , Scaffolding Construction Layer Truss

Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-1
Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-2
Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-3
Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-4
Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-5
Aluminum Layer Truss System , Scaffolding Construction Layer Truss thumbnail-6
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-1
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-2
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-3
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-4
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-5
Aluminum Layer Truss System , Scaffolding Construction Layer Truss photo-6
US$ 18 - 38 MOQ: 1 Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sgaier-scaffolding truss
Model Number:
Sgaier08
Contact Supplier Request Quote Chat Now
Sgaier Industrial (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Huangpu port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sgaier-scaffolding truss
Model Number Sgaier08

Aluminum layer truss system , scaffolding construction layer truss

Aluminum scaffolding

Buy from us Included:
-Full Factory Warranty
-More connection Accessories

-24hours Live Tech Support by Phone or E-Mail



1.Material:Aluminum alloy

2.Feature:Professional welders and engineers to ensure high quality Aluminum scaffolding .

3.Application:Exhibition setup- Interior refurbishing, All the towers can be connected together for multi-purpose



Aluminum layer truss system , scaffolding construction layer truss

  What are the specifications of our truss?

 Aluminum layer truss system , scaffolding construction layer truss



Aluminum scaffolding size

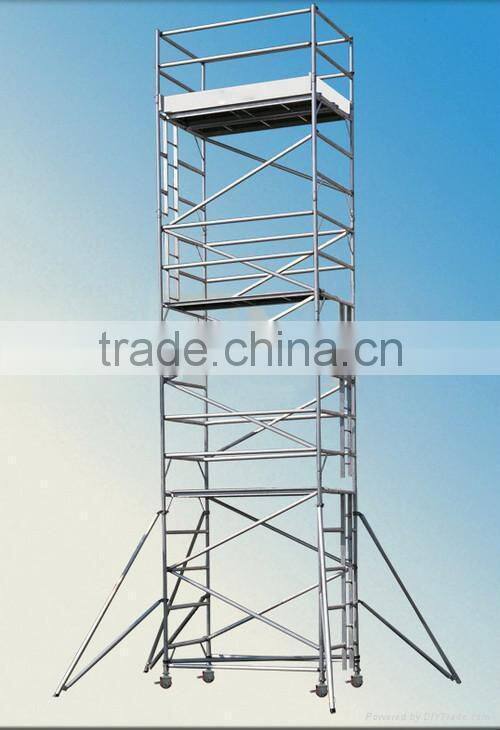

   Single Width          2*  0.75m width mobile aluminum scaffolding(3m-10m)
Materials aluminum alloy  6061-T6, 50*3.0mm
Load capacity Max load of platform is 272kg, Max load of tower is 900kg
Tower height    3m   4m   5m   6m   7m   8m  9m  10m
Platform height 2.1m 3.1m 4.1m 5.1m 6.1m 7.1m 8.1m 9.1m
Work height 4.1m 5.1m 6.1m 7.1m 8.1m 9.1m 10.1m 11.1m
Per set(weight) 81 113 139 175 187 219 223 277
Per set(m³) 0.58 0.83 0.96 1.22 1.34 1.59 1.68 1.95
20GP quantity 45 30 25 20 18 15 15 13
40Gp quantity 90 60 50 40 36 30 30 26

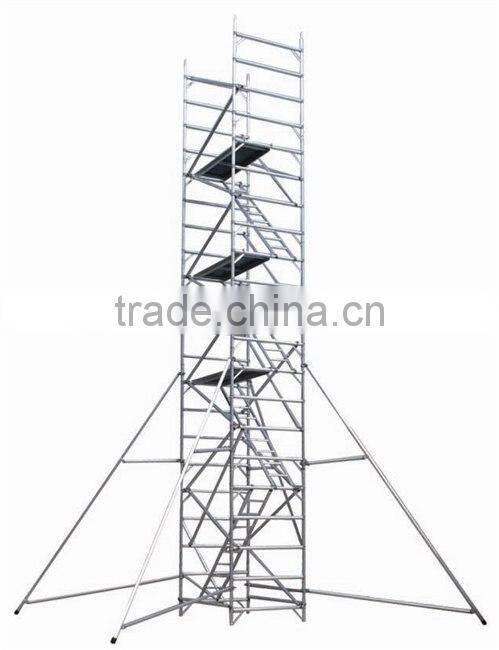

      Double Width      2* 1.35m width mobile aluminum scaffolding  (3m-10m)
Materials aluminum alloy  6061-T6, 50*3.0mm
Load capacity Max load of platform is 272kg, Max load of tower is 900kg
Tower height    3m   4m   5m   6m   7m   8m  9m  10m
Platform height 2.1m 3.1m 4.1m 5.1m 6.1m 7.1m 8.1m 9.1m
Work height 4.1m 5.1m 6.1m 7.1m 8.1m 9.1m 10.1m 11.1m
Per set(weight) 102 123 163 203 215 236 255 313
Per set(m³) 0.95 1.13 1.46 1.81 1.98 2.1 2.46 2.81
20GP quantity 25 20 15 15 13 13 12 10
40Gp quantity 50 40 30 30 26 26 24 20



Products advantages:

Special design can be used for limited space, such as narrow footpath and passage,

It can be built in the elevator or other stair.

Steady and parts high utilize rate.

Our ladder has enough strength, while you only need spend short time to remove and put all of them into microbus, easy to carrying.



Products Feature:

1. Flexible frame parts ensure you increase work height 0.5m step by step, erect height you need.

2. Easy handling and structures can be a single set of independent use.

3. Use aviation aluminum alloy materials durable, stable and reliable.

4. Work platform can be built in each rung, two rung interval 0.4m.

5. Passed SGS safety standard and GS certification.



Products detail:

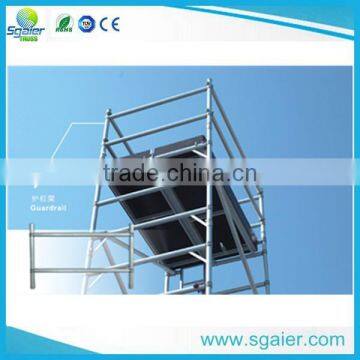

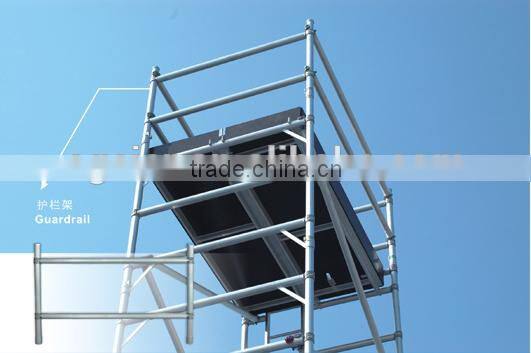

1. Frame: width 0.75m, height 1.5m, 2m, handrail: width 0.75m, height 1m.

2. Single width: Can choose: 750*2000mm, 750*2500mm, 750*3000mm.

3. Tower height: Can choose from 2m to 10m, special design can be up to 20m.

4. Carrying capacity: total load 900kg, each plank max 272kg.

5. Materials: Dia 50mm, aluminum alloy 6082-T6/6061-T6.

6. Thickness:  3.0m.

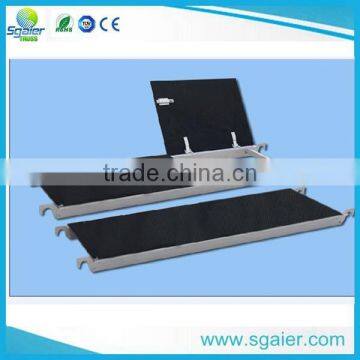

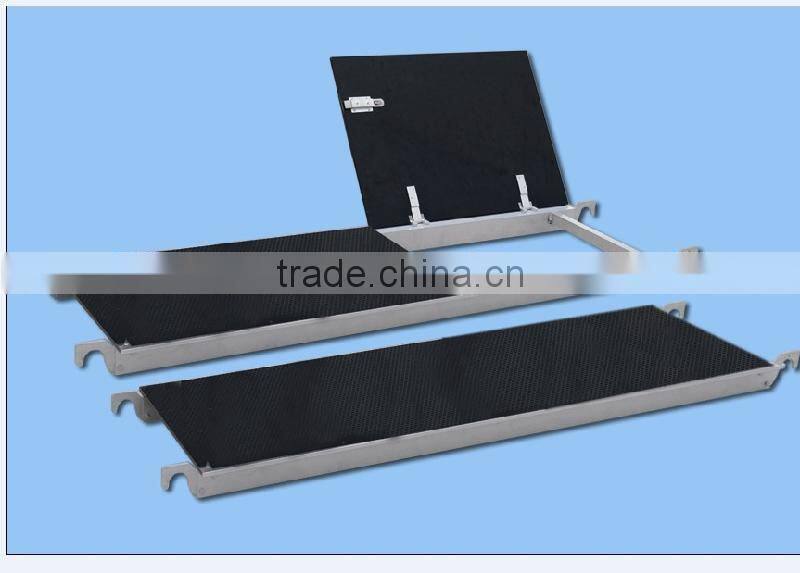

Material: Aluminum profile, Plywood decking (Non-Slip)



Advantages:

Single Width

Suitable for use with workspace constraints

Lighter



Double Width

Able to reach a maximum height of 15.8m

Bigger base for added stability

Light weight

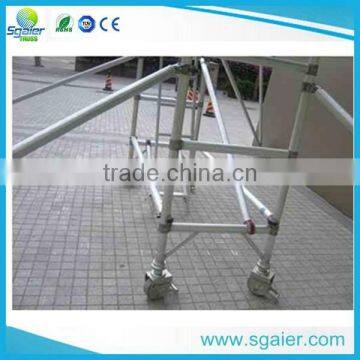

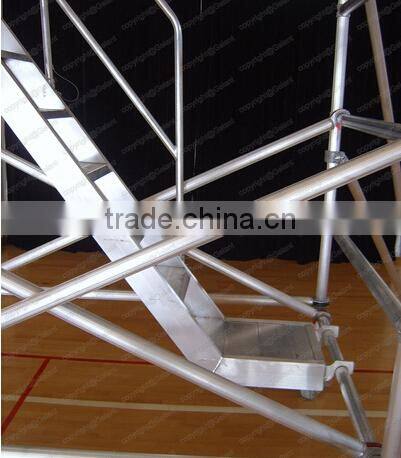

  What are the details of our truss?

Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss

Aluminum layer truss system , scaffolding construction layer truss

Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss

Aluminum layer truss system , scaffolding construction layer truss

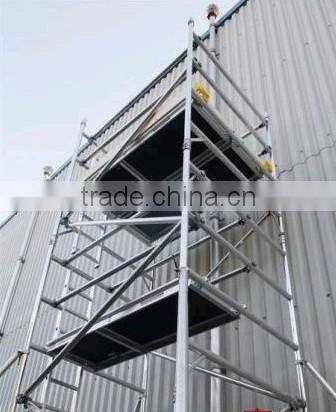

   What are the applications of our truss?



Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss



  Packaging and shipping

Packaging: Air bubble film or carton

Shipping: We can arrange shipping truss and stage by sea,air or express with competitive cost.



Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss

Aluminum layer truss system , scaffolding construction layer truss

Aluminum layer truss system , scaffolding construction layer truss



Aluminum layer truss system , scaffolding construction layer truss
