stainless steel wire mesh net/ stainless steel wire mesh price/ cheap stainless steel wire mesh
1, plain stainless steel wire mesh:
One of the most common weaving methods has been widely used in industrial production and civil life , the main characteristic is the same density of warp and weft wire diameter.
2, stainless steel square wire mesh
a.Material: galvanized iron wire, stainless steel wire, copper wire, aluminum wire, etc.
b.Features: structural precision, uniform mesh, good corrosion resistance, strong and durable.
c.Application: widely used in industry and construction industry, screening sand, filter liquid and gas.It also be used for the mechanical attachment of safety protection, etc., and it can also be used to replace the slivers of walls and ceiling.
3, stainless steel mat type nets/lp network
a.Material: stainless steel wire, low carbon steel wire, nickel wire, copper wire, polyester wire, etc.).
b.Weaving: plain weave, twill weave weaving, bamboo weaving, contrast.
c.Features: good filtration precision, high strength contrast network load.
d.Usage: used for aerospace, petroleum, chemical industry, scientific research and transportation industry, still can make lunch box nets, coal washing nets, and so on.
For example:250 mesh specification
Material |
316L |
Weave way |
Plain |
Mesh number |
250 |
Wire diameter |
0.030mm |
Width |
1m/1.2m |
Length |
30m |
Aperture ratio |
49% |
Aperture size |
0.070mm |
Material |
316L |
Weave way |
Twill |
Mesh number |
250 |
Wire diameter |
0.040mm |
Width |
1m/1.2m |
Length |
30m |
Aperture ratio |
37% |
Aperture size |
0.060mm |
1.>stainless steel mesh plain weave
stainless steel wire specification(Plain weave) | |||
mesh |
wire dia(mm) |
Opening(mm) |
Material(Alsl) |
7 |
1 |
2.63 |
304 or 316 |
10 |
0.6 |
0.94 |
304 or 316 |
12 |
0.5 |
1.62 |
304 or 316 |
16 |
0.4 |
1.09 |
304 or 316 |
16 |
0.35 |
1.24 |
304 or 316 |
18 |
0.35 |
1.06 |
304 or 316 |
20 |
0.4 |
0.87 |
304 or 316 |
24 |
0.26 |
0.8 |
304 or 316 |
30 |
0.3 |
0.55 |
304 or 316 |
35 |
0.17 |
0.56 |
304 or 316 |
40 |
0.23 |
0.4 |
304 or 316 |
50 |
0.2 |
0.31 |
304 or 316 |
60 |
0.15 |
0.27 |
304 or 316 |
70 |
0.12 |
0.24 |
304 or 316 |
2.>stainless steel mesh twill weave
stainless steel wire specification(Twill weave) | |||
mesh |
wire dia(mm) |
Opening(mm) |
Material(Alsl) |
250 |
0.04 |
0.063 |
316 |
300 |
0.04 |
0.044 |
316 |
325 |
0.035 |
0.043 |
316L |
350 |
0.03 |
0.042 |
316L |
400 |
0.03 |
0.033 |
316L |
450 |
0.028 |
0.028 |
316L |
500 |
0.025 |
0.026 |
316L |
3.>stainless steel mesh dutch weave
stainless steel wire specification(Dutch weave) | ||
mesh |
wire dia |
Material(Alsl) |
12*64 |
0.058*0.04 |
304 or 316 |
24*110 |
0.36*0.25 |
304 or 316 |
14*88 |
0.5*0.33 |
304 or 316 |
30*150 |
0.23*0.18 |
304 or 316 |
40*200 |
0.18*0.13 |
304 or 316 |
50*250 |
0.14*0.11 |
304 or 316 |
80*700 |
0.1*0.08 |
304 or 316 |
165*800 |
0.071*0.04 |
304 or 316 |
165*1400 |
0.06*0.04 |
304 or 316 |
200*1800 |
0.05*0.032 |
304 or 316 |
325*2300 |
0.035*0.025 |
304 or 316 |
400*2800 |
0.03*0.02 |
304 or 316 |
4.Stainless Steel Wire Mesh Feature:
- Corrosion resistance.
- Anti-acid and alkali.
- Anti-high temperture.
- Good filter performance.
- Long using life
5. stainless steel wire mesh Application:
- In acid, alkali environment conditions sieving and filtering.
- Petroleum industry as mud mesh,.
- Chemical fiber industry as screen mesh.
- Plating industry as acid cleaning mesh.
Stainless steel crimped wire mesh
6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures
If you need the proucts as following,I can also supply.
6. Performance of stainless steel wire mesh:
acid resistance, alkaline resistance, high temperature resistance, strong tension, and good abrasion resistance.weaving type: plain weave, twill weave, Dutch weave (plain), Dutch weave (twill).

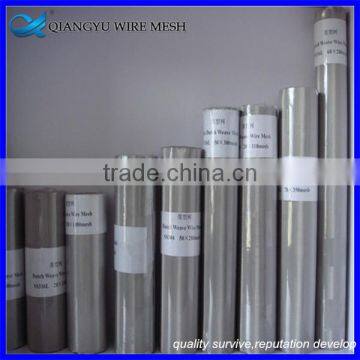

Product show
Other material
If any inquiry,welcome your timely contact!
