80*100mm mesh size 2m x 1m x 1m Gabion Box / cheap wire baskets for sale
Product describtion
Gabions are wire mesh boxes, containers or baskets filled with rock to prevent soil erosion and to retain/contain soil particles. Gabions and geotextiles are normally used together to reduce water velocities and to re-capture river bed sediment in streams. Flat Gabions, called River or Reno Mattresses, are widely used in river courses where soil erosion is a problem over a large flat or sloped area in need of protection against soil loss or scour. They are used mostly in the civil engineering industry, especially in the construction of roadway drainage structures. Recently however, due to the many environmental benefits associated with gabions, they are being used in many various applications and industries.
Gabion mesh is known as by different shape of gabion box,gabion basket, gabion wall,gabion
mattresses, etc.It is hexagonal wire netting and can be finished by galvanized wire mesh or PVC
coated wire mesh.
Specification
wire diameter |
2.0-4.00mm |
mesh opening |
60x80 mm, 80x100 mm, 100x120mm, 120x150mm |
gabion box size |
2x1x0.5m, 2x1x1m, 3x1x1m, 4x1x1m ect. |
Material |
Hot dipped galvanized steel wire, Galfan Steel Wire, PVC coated steel wire ect.
|
Weaving |
Straight twist,reverse twist,straight and reverse twist(3 twist,5 twist etc.) |
package |
1. Packaged with pallet
2. Packaged in bulk
3. Packaged with steel strip and plastic film or as customer
|
Opening |
Wire Diameter(Steel Wire) |
Wire Diameter(PVC Coated) |
|
60X80
|
2.00-2.80
|
2.0/3.0-2.5/3.5
|
|
80X100
|
2.00-3.20
|
2.0/3.0-2.8/3.8
|
80X120 |
2.00-3.20
|
2.0/3.0-2.8/3.8 |
|
100X120
|
2.00-3.40
|
2.0/3.0-2.8/3.8
|
|
100X150
|
2.00-3.40
|
2.0/3.0-2.8/3.8
|
120X150 |
2.00-4.00
|
2.0/3.0-3.0/4.0
|
Tolerances : ±5% |
Normally: Mesh wire (2.7), Lacing wire(2.2), Selvedge wire (3.4) |
|
Packing and loading

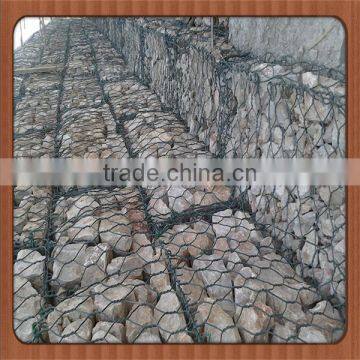

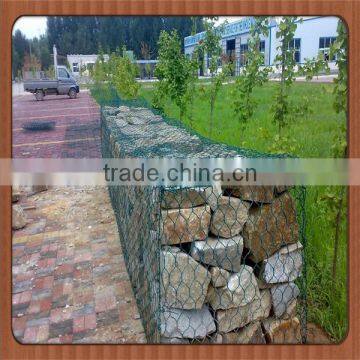

Application
Internationally, gabion materials have been commonly used since the early 1880’s all over the world and have become one of the main soil erosion control and retaining wall solution elements. Some have tried to use more rigid, welded-mesh elements and sometimes even plastic materials for gabion materials. However time and again the high strength and flexibility of the shaped (hexagonal) steel wire mesh has proven to provide the ultimate solution.
1. Flexible: Wire mesh structure tolerates huge forces from breaking or cracking
2. Durable: PVC coated galvanized wire mesh has very long life, better for hydraulic works
3. Permeable: The gabion mesh structure can provide effective permeability, they are self-draining
4. Economy: Gabion Structures are very economical compared to the conventional structures and require low maintenance
5. Strength: The Gabion can absorb huge amount of energy and strong tension for many decades.
we also offer Gabions and River Mattresses using a new Galfan wire coating, which is a new improved form of Galvanisation, including 95% Zinc coating alloy with 5% Aluminium, it has vastly improved corrosion protection properties
Any other questions contact Alison freely
