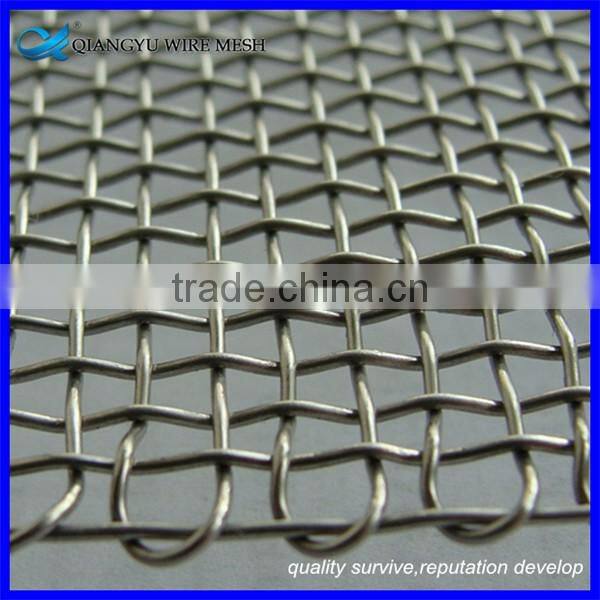

intermediate crimped wire mesh/ double crimped wire mesh screen
Crimped Wire Mesh can be also known as the iron crimped mesh, stainless steel crimped mesh, black iron crimped mesh according to different materials.

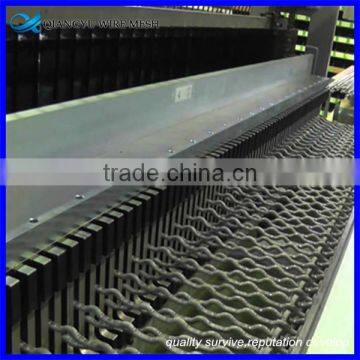

Crimped Wire Mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.
Crimped Wire Mesh Material: Iron wire, black wire, stainless steel wire, copper wire and other non-ferrous metal.

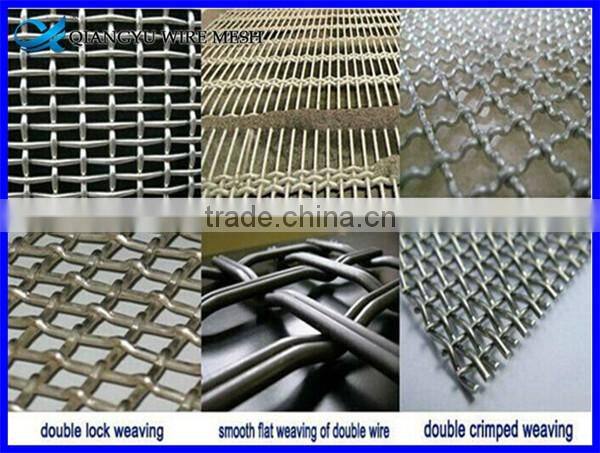

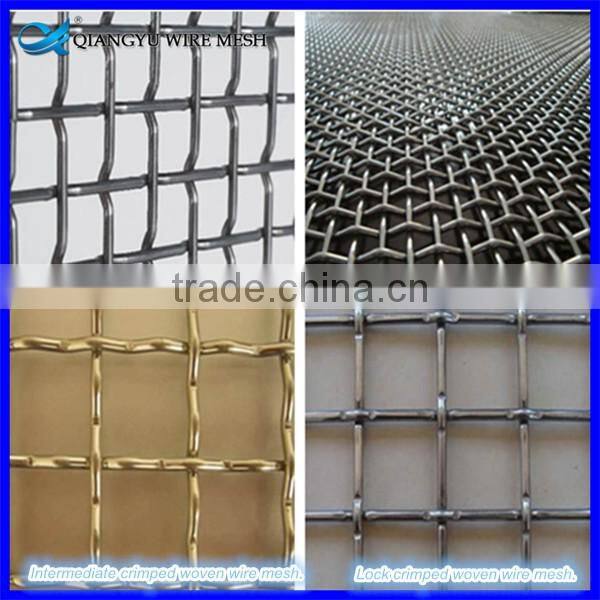

Crimping Styles
Crimped Wire Mesh is made through crimping mesh machine with pre-crimped wire in the following styles listed. Square or rectangular openings available due to the different crimping styles.
Locked crimping;
Flat-topped crimping;
Double crimping;
Intermidiatewave crimping
Features
Galvanized crimped mesh offers firm structure, good strength and economic cost.
Stainless Steel Crimped Mesh Features:
High temperature resisting, acid resisting, alkali resisting, corrosion resistanting, etc.
Size
Diameter 1.0mm x mesh opening 8mm or 10mm
Diameter 1.5mm x mesh opening 12.5mm, 15mm or 20mm
Diameter 3mm x mesh opening 15mm, 20mm, 30mm
Length and width specifications: 1mX25m 1mX30m 1.2mX25m 1.2mX30m
Light type crimped woven wire mesh
· Mesh size: 2 mesh - 22 mesh.
· Width: 1m - 2m.
· Length: 30m.
· Heavy duty crimped wire mesh panel
· Mesh size: 2mm - 30mm.
· Wire diameter: 1mm - 6mm.
· Width: 1m.
· Length: 2m.
Wire Gauge | Wire Diameter | Mesh/Inch | Aperture |
14 | 2.0 | 21 | 1 |
8 | 4.05 | 18 | 1 |
25 | 0.50 | 20 | 0.61 |
23 | 0.61 | 18 | 0.8 |
24 | 0.55 | 16 | 0.1 |
24 | 0.55 | 14 | 0.12 |
22 | 0.71 | 12 | 0.14 |
19 | 1 | 2.3 | 0.18 |
6 | 4.8 | 1.2 | 2 |
6 | 4.8 | 1 | 2 |
6 | 4.8 | 0.7 | 3 |
14 | 2.0 | 5.08 | 0.3 |
14 | 2.0 | 2.1 | 1 |
14 | 2.0 | 3.6 | 1.5 |
Major Application
· Crimped woven wire mesh can be used for the protective screens for the machines.
· Crimped woven wire mesh can be used as fences for the workshops, stairs.
· Crimped woven wire cloth can be used as barbecue grill mesh for the restaurants, camping and travels.
· Heave duty crimped woven wire mesh can be used as the woven wire vibrating screen in the mining,
coal and other industries.

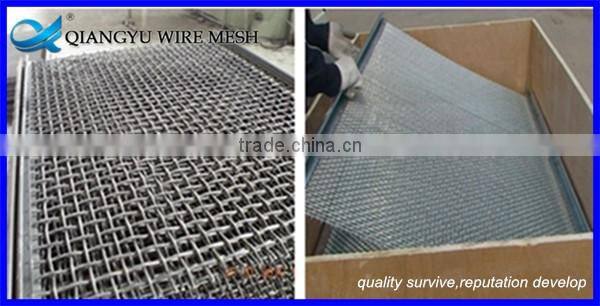

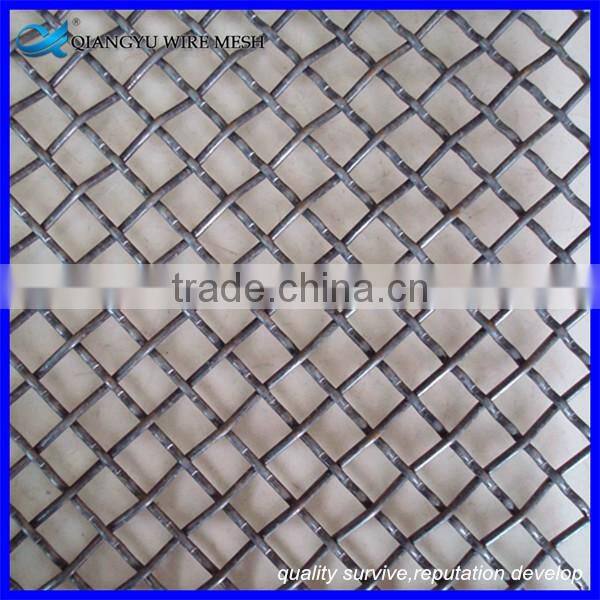

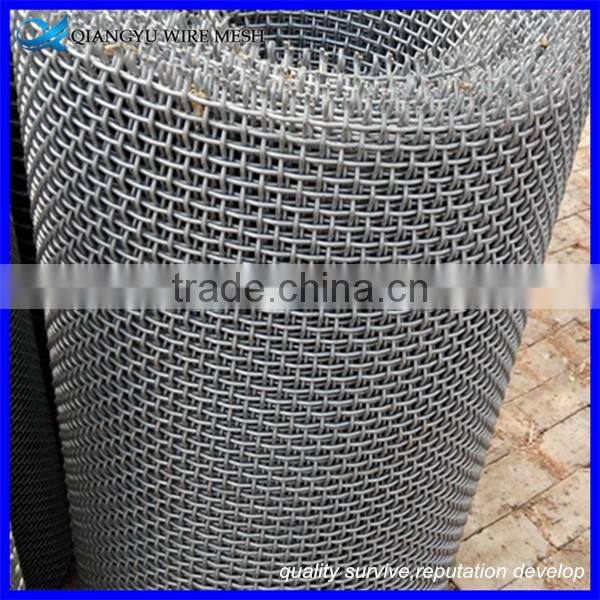

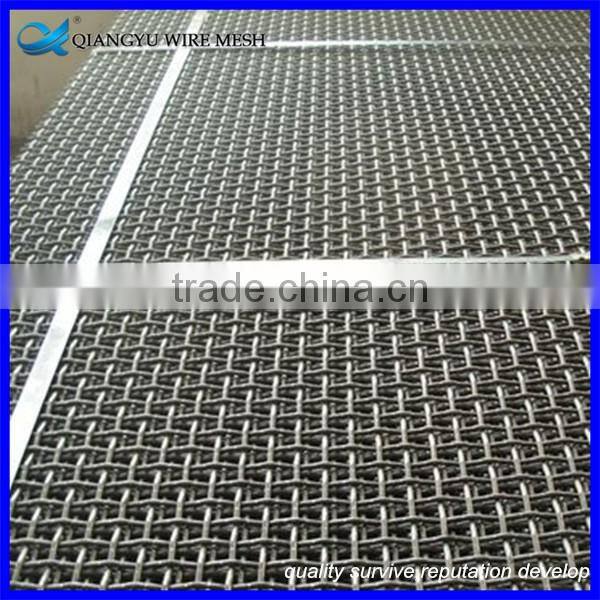

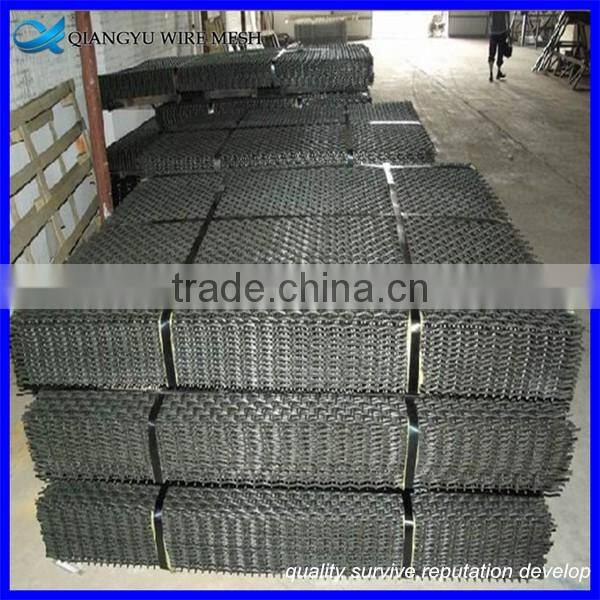

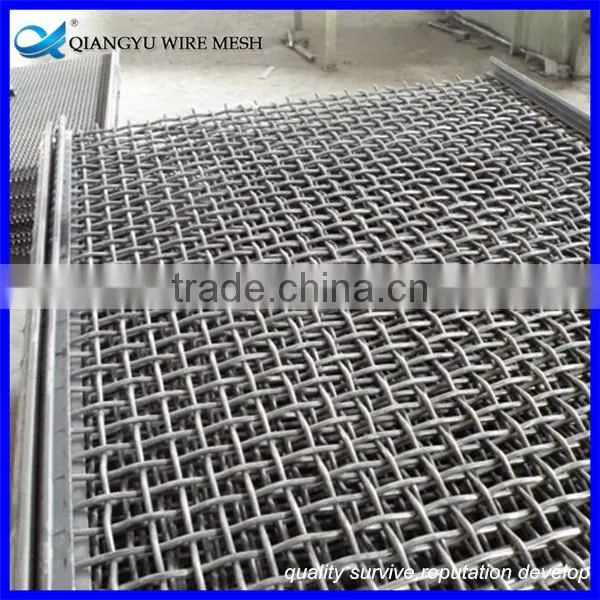

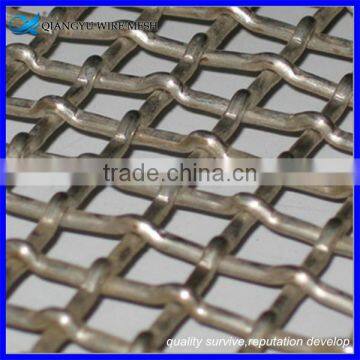

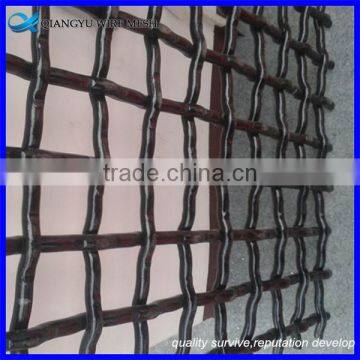

Picture show
Your contact is welcomed!!!
