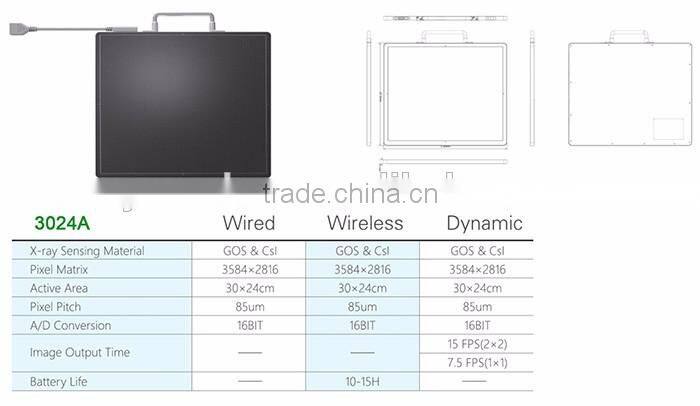

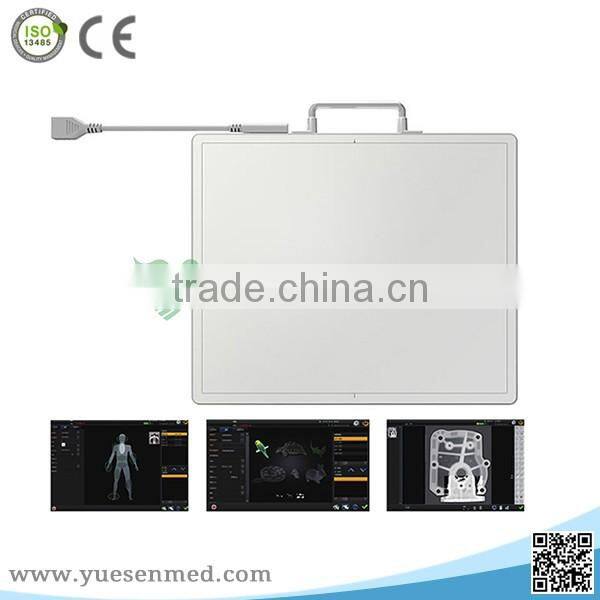

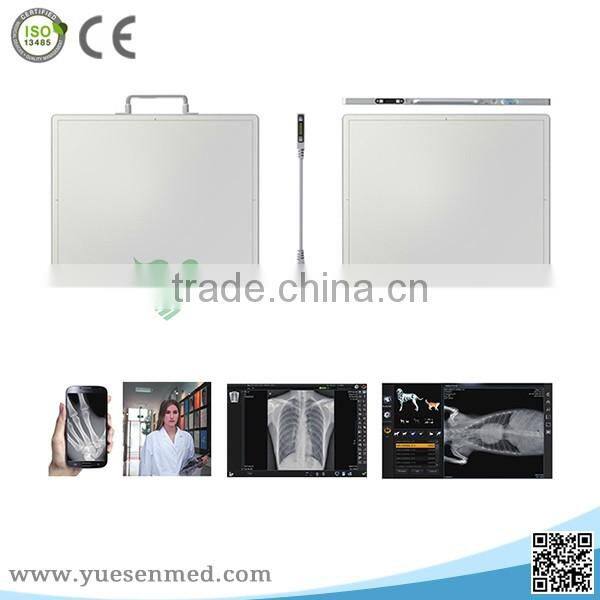

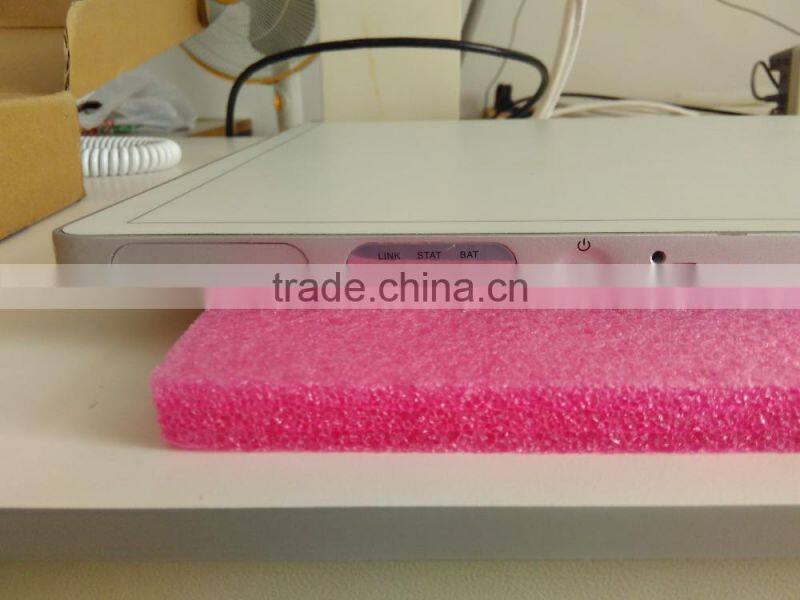

wired or wireless High resolution flat panel detector for sale
Model:YSDR-GOS/1417AGA
ntroduction:
Easy Upgrade to DR
Highest image quality(High resolution)
Portable use available
Application: Retrofit Market
Feature
*Fully transformable
Fully transformable working modes have made 1417AGA suitable for various DR application. In STA mode where Relay Box(RB)is used, the connection between PC and RB, and the connection between RB and FP, can both be either wired or wireless; In AP mode where RB is not used, the connection between PC and FP can also be wired or wireless. All the 6 working modes can be freely switched from one to another.
*12Hours
With power consumption as low as 5w, 1417AGA can be continuously operated for more than 12 hours(1 image per minute) without charging, sufficient for a long and busy day of a crowded X-ray room. Meanwhile, the ultra low power consumption facilitatesless temperature rise, henceless electronic noise and longer product life.
*AGA(ALLGenerator Adaptable)
Assisted by the programmable Relay Box,the widely configurable exposure window ,and the highly consistent image quality under various customized image acquisition timing sequence, 1417AGA can be easily adapted to virtually all existing generators.
*AED, Full lmage
1417AGA can automatically synchronize image acquisition with the x-ray exposure without any connection to the generator. The Automatic Exposure Detection (AED) function is realized through the flat panel detector itself, instead of any separate exposure sensor. Therefore the detection is highly sensitive throughout the full imaging area.
*RIA(Reliable lmage Acquisition)
1417AGA is embedded with the design of reliable communication and data integrity. RIA(Reli-able Image Acquisition)include: commands and feedbacks are transmitted through a special RUDP protocol to guarantee lossless and small-latency communication; Image data are transmitted through optimized TCP/IP protocol to ensure integrity; Even in the extreme case when internet connection is completely lost, the image data can still be safely saved to the internal storage and later on trans mitted when the internet connection recovers.
*802.11ac
1417AGA is equipped the latest 802.11ac wireless standard. With up to 1G bps speed, a full resolution image can be transmitted within 1s.

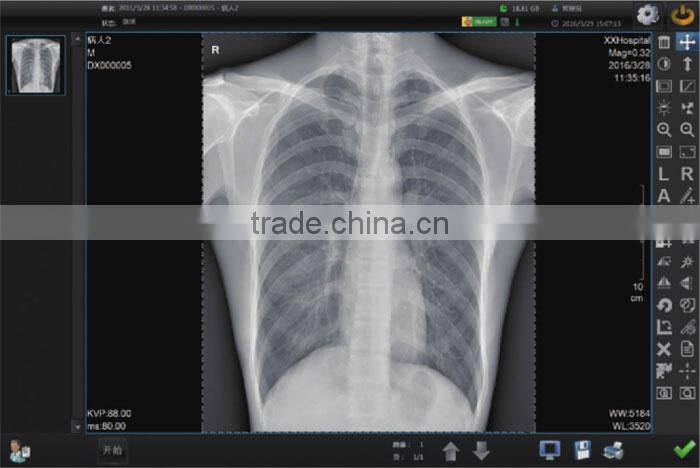

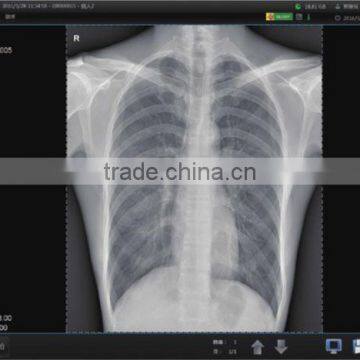

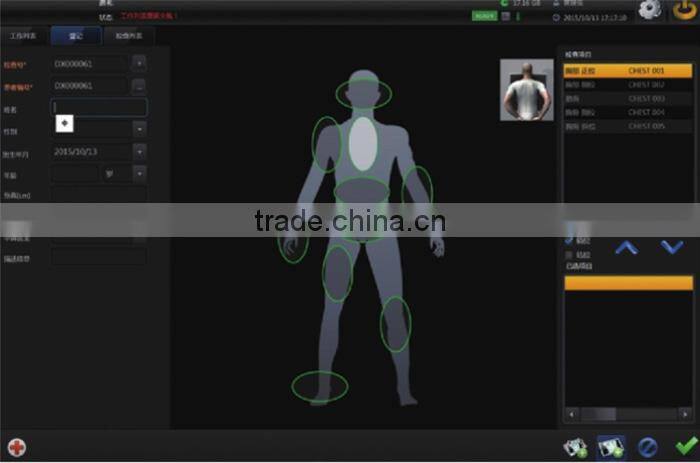

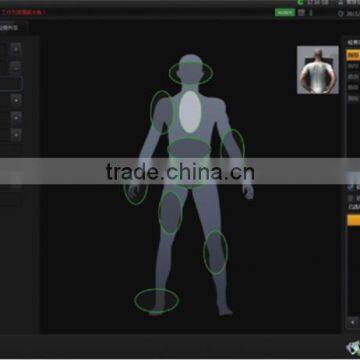

Image Processing System ( Chinese And English Two Versions)
*Fast image processing with one click function
*Grid artifact filtering function
*Wireless access to PACS / PDA or Worklist
*Can be individually optimized for different objects
*Image stitching

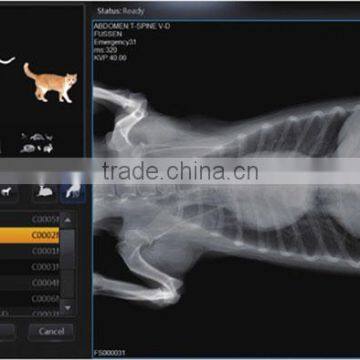

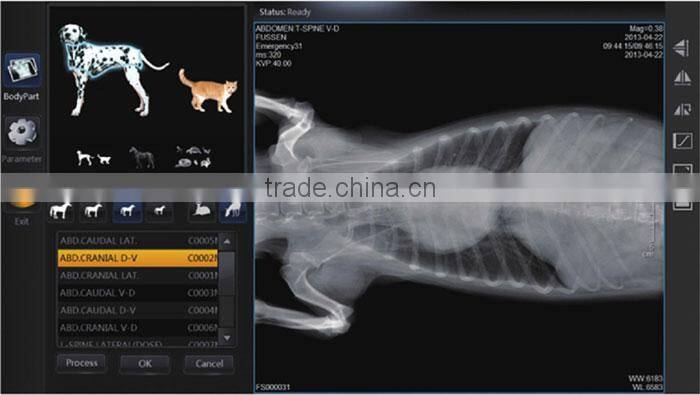

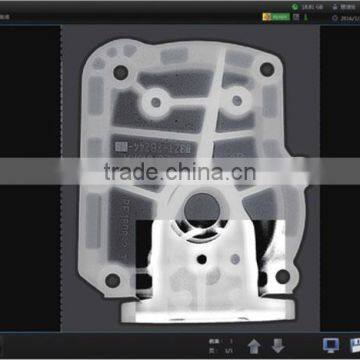

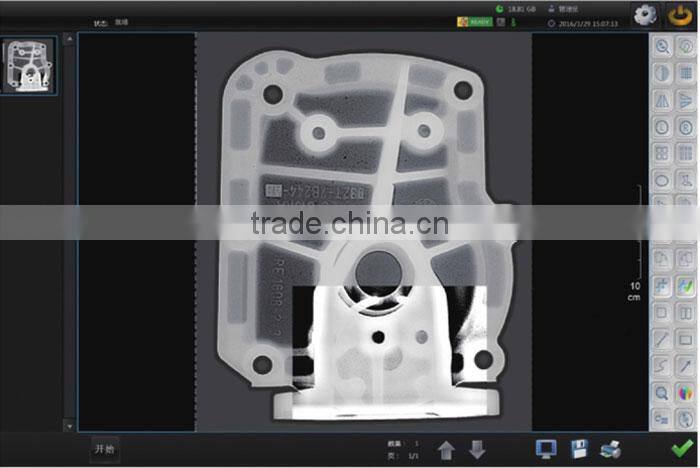

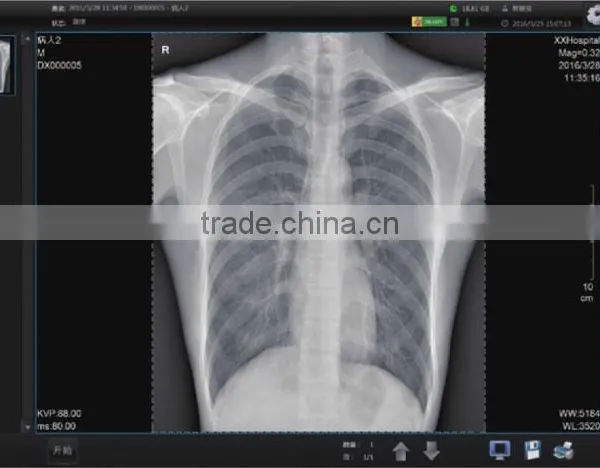

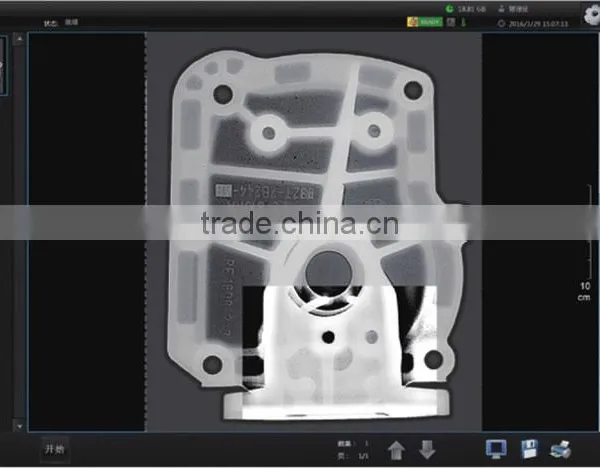

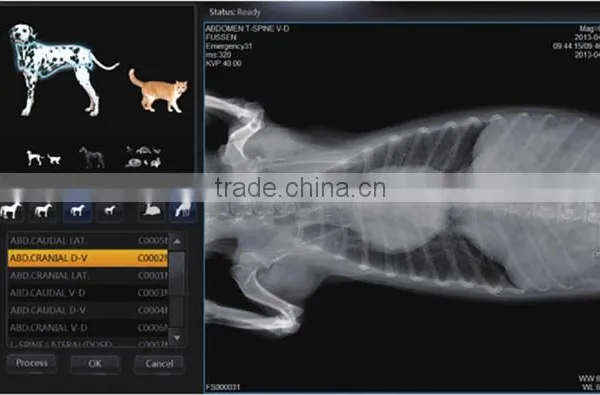

*Versions Available for Human Medical,Veterinarian and Industrial testing

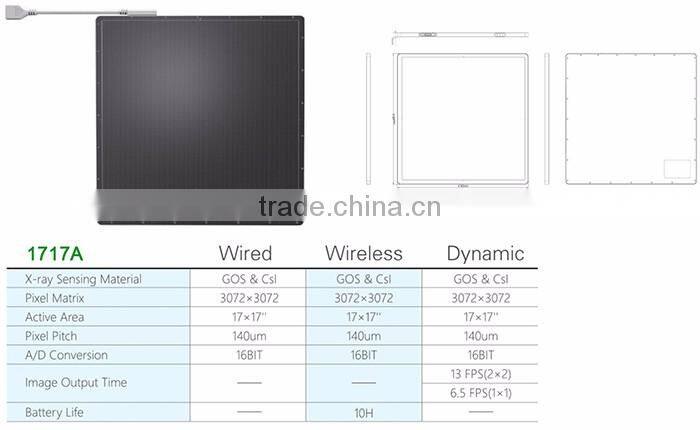

Parameters
| Item | Parameters |
| X-ray sensing Material | GOS and a-Si |
| Effectice Area | 14X17in or 17*17in |
| Pixel Pitch | 140μm |
| Acquisition Time (end of x-ray window to end of image transmission) | Wireless≤2s, Wired≤1s |
| A/D Resolution | 16Bit |
| Line Pair Rssolution | ≥3.6Lp/mm |
| Pixel Matrix | 2560x3072 or 3072*3072 |
| DQE | 50% |
| Dynamic Range | 84db |
| Operating Temperature | 5~35℃ |
| Operating Humidity | 0~75%(non-condensing) |
| Battery Life | 12Hours (wireless) |
| FP Housing | Carbon Fiber,Magnesium Alloy |
| FP Size | 460mmx383mmX15mm or 460mmx460mmX15mm |
| FP Weight | 3.2kg |
| Waterproof Rating | IPX3 |
| Communication Standard | 802.11n, 802.11ac |
| Docunment Standard | DICOM3.0 |
Human MedicalVeterinarian and Industrial testing flat panel detector digital radiography
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
Contact Person:Iris Chen
Mob:+0086 13826442089 (whatsapp available)
Skype: ysenmediris
E-mail also welcome!
