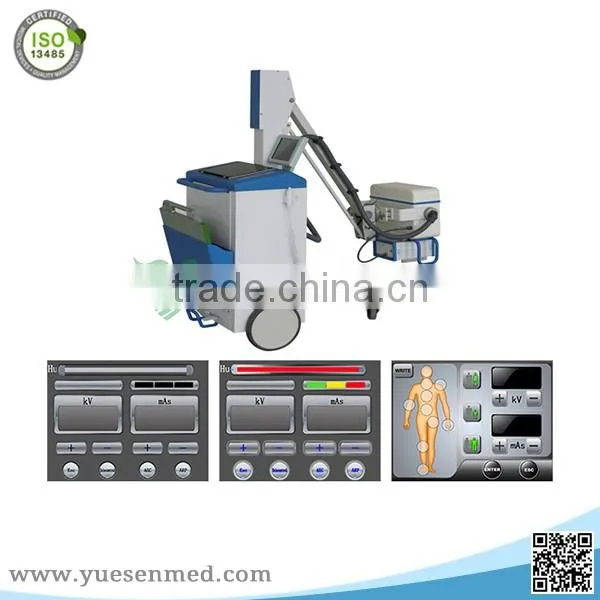

Medical 5KW high frequency mobile x-ray
Technique Specification
Model |
YSX70GM-B |
YSX100GM |
|
Power | |||
Input Voltage |
220V±10% |
||
Input Power |
5.5kW |
7.5kW |
|
Mains Frequency |
50Hz±1Hz |
||
Source Resistance |
≤0.5Ω |
||
Main Technical Parameters | |||
Power Modules |
30kHz |
|
|
Filament Frequency |
20kHz |
|
|
Focus |
1.5mm |
|
|
Max. Generator Output |
3.5kW; |
5kW |
|
Max. X-Ray Tube Voltage |
110KV |
120KV |
|
kV Range |
40~120kV |
||
mAs Range |
1~125mAs. |
1~200mAs |
|
Main Parameters Of Mechanical Parts | |||
X Ray Tube Vertical Motion Range |
≥500~1750mm |
||
X Ray Source Components Around The Cross Arm Vertical Rotation:≥±90° | |||
Exposure Size |
≥350mm*350mm(SID=65cm). |
||
Machine Main Function | |||
Fault Detection Error Prompt Functions. | |||
ARP Human Anatomy Program Function. | |||
Parameter Calibration Function. | |||
Combined X-Ray Tube Assembly
1,Adopt high frequency high voltage generator and combined X-ray tube assembly;
2,kV closed-loop control, stable output, good repeatability, quick response and high accuracy;
3,mAs digital closed-loop control technology and 32-bit microprocessor real-time control, which ensure the accuracy and repeatability of dosage;
Inverter for mobile x-ray unit for mammography:
1,Equipped with the functions of high voltage and over & under voltage protection, tube current over-current protection, output overload protection and fault prompt;
2,Perfect heat capacity protection function to protect X-ray tube target surface;
Corrugated Pipe:
Full consideration of hospital disinfection and cleaning, adopt high quality corrugated pipe, prolonging the service life of the equipment
Switch
Using high quality switch, safe and reliable, stable quality
Wheel
The machine moves very flexible, lightweight, even in a small space can also smoothly, quickly
through
X Optical Imaging
The high-frequency high-voltage technology and computer control technology integration, parameter, image definition

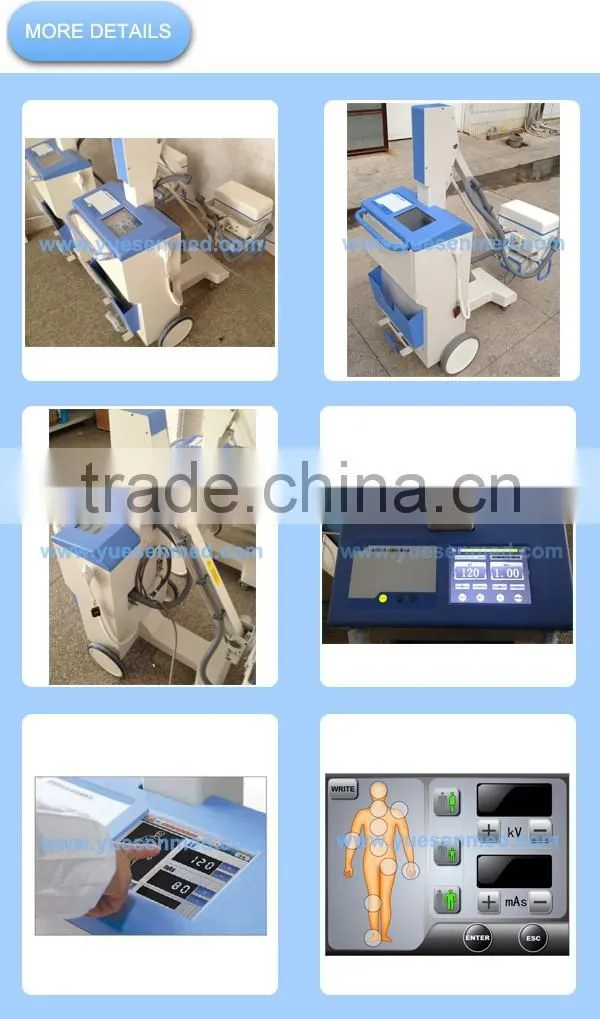

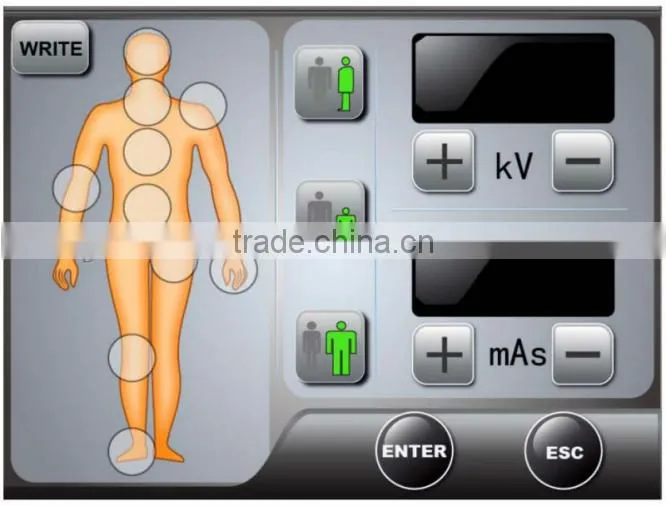

Touch Screen:
1,Touch screen regulation, color screen display, and dual core control;
2,Anatomical procedures are established. The users can also change the parameters on their own.
3,Of ergonomical structural design, easy and convenient to operate.
Remote Control
Remote equipment control, digital coding control, anti-jamming
Contact me to let me know your specfic request.
Contact Person:Sophie Lin
Mob:+86 15876599362 (Whats app / Viber available)
Skype: ysenmed-016
E-mail also welcome!
