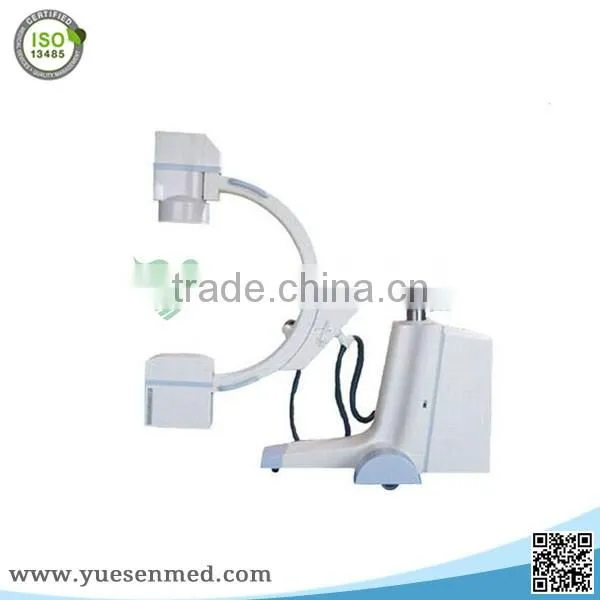

high performance 3.5kw 110kv 5kw 120kv 40khz cheap price for c arm x ray machine
Model:YSX-C35/YSX-C50
Specifications of High Frequency Medical C-arm X-ray Equipments: |
(Italy) IMD 3.5KW110KV40KHZ |
(Italy) IMD 5KW120KV40KHZ |
|
C-arm |
X-ray tube focus-distance between image intensifiers |
100cm |
|
C-arm rotation |
±180° |
||
C-arm bracket rotation(rotation around horizontal axis) |
115° |
||
Vertical movement |
400mm(electro motion) |
||
Backward-forward movement |
200mm(electro motion) |
||
Rotation around vertical axis |
±12.5° |
||
X-ray generator |
Fluoroscopy mode |
40-110KV(Step length-1KV) 0.1-5mA |
40-120KV(Step length-1KV) 0.1-5mA |
Pulse-fluoroscopy mode |
40-110KV(Step length-1KV) 0.1-10mA |
40-120KV(Step length-1KV) 0.1-10mA |
|
Radiography mode |
40-110KV(Step length-1KV) 23-71mA |
40-120KV(Step length-1KV) 23-71mA |
|
Digital exposure mode |
40-110KV(Step length-1KV) 0.1-20mA |
40-120KV(Step length-1KV) 0.1-20mA |
|
X-ray tube unit |
Medical C-arm X-ray Equipments |
(Stationary anode) 0.6*0.6mm 1.5*1.5mm |
(Rotating anode) 0.3*0.3mm 0.6*0.6mm |
Anode heat capacity |
|
30KJ(40KHU) |
150KJ(700KHU) |
Heat capacity of assembled heed |
|
500KJ(667KHU) |
600KJ(800KHU) |
Collimator |
|
Changeable field, auto-tack, double leaves |
|
Image intensifier |
Standard incidence entrance |
|
|
TV system |
CCD radiography |
Interlace-scanning CCD radiography system |
|
Monitor |
|
14" progressive-scanning monitor. |
|
Power supply |
Single-phase AC power supply |
220V50HZ20A. |
|
Capacity |
|
4KVA. |
|
Image storage |
|
8-Image storage,8-frame noise reduction, last image freezing |
|
Monitor(option) |
|
17" progressive-scanning monitor 1024*768. |
|
