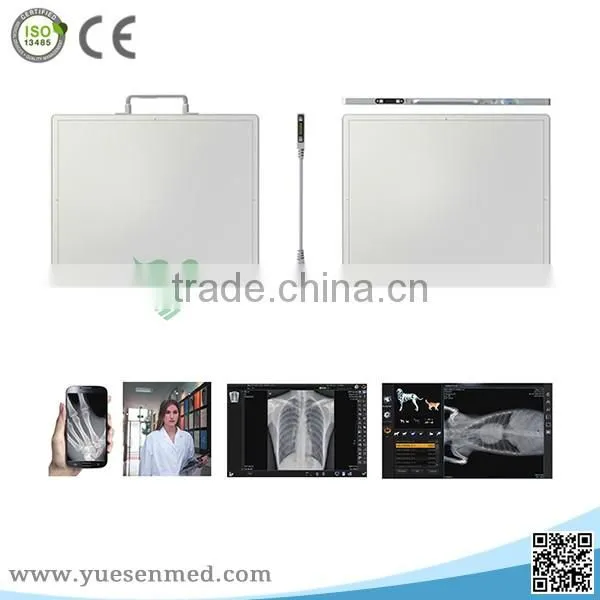

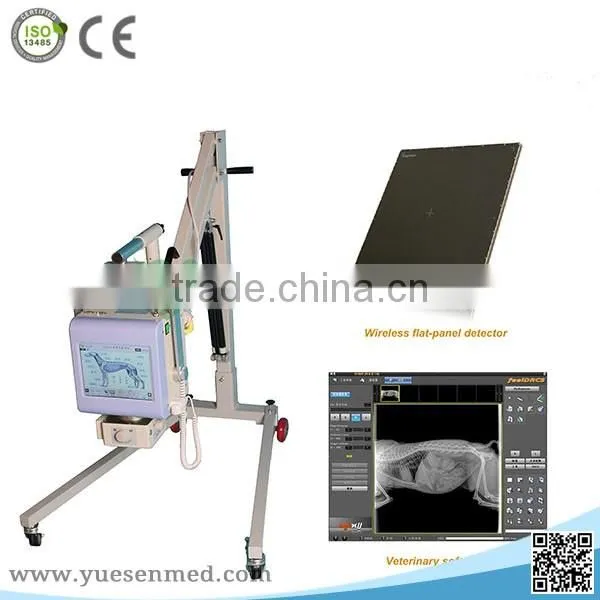

good quality image flat panel detector 4kw radiography system high frequency digital x ray
Model:YSX040-C
1. Application
4.0KW High frequncy flat panel detector digital radiography Portable X ray Machine is mainly suitable for extremities check,
especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.
2. Features:
1) Simple & light structure;
2) 6-segment LED display;
3) Anatomical memories for 24 selection program;
4) Double-loop (analog & digital) high precision control mode;
5) High precision control in tube voltage & current;
6) Self-protection & auto-diagnosis available when malfunction occurs.
3. Specifications:
Model |
YSX040-C |
Power supply |
Voltage: AC220V± 10%, 50/60Hz ± 1Hz Capacity: ≥5kVA Internal resistance: ≤0.5Ω |
Maximum output power |
P =110kV×36mA=4kW |
Nominal output power |
100kV,40mA,0.1s,4kW |
Frequency |
≥40kHz |
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
mA adjustable range |
36mA~60mA |
mAs adjustable range |
1mAs-190mAs |
Exposure time adjustable range |
0.04s~3.2s |
Toshiba X ray tube |
Toshiba X ray tube Focus: 0.5/1.6mm, Thermal Capacity: 76kHU |
Digital detector |
Limit resolution: 3.9LP/mm; A/D convert:14bit; Pixel region: 264×325mm; Pixel matrix: 2080×2560; |
Notebook Computer |
a) Model:Lenovo Y470N-IFI(H) b) Processor: Intel Core i5-2410M(2.3GHz) c) Memory capacity: 4GB d) Hard disk: 750GB e) Screen size: 14inch |
Anatomical program |
24 memory choices available. |
Accessories |
Standard: manual switch,cable Optional: mobile steel support |
good quality image flat panel detector 4kw radiography system high frequency digital x ray
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
Contact Person:Iris Chen
Mob:+0086 13826442089 (whatsapp available)
Skype: ysenmediris
E-mail also welcome!
