Medical X-ray Equipments xray
Features
1. High precision control mode: Adopting HF (≥30kHz) inverter circuit combined with
analog & digital double loop control mode (composed of microprocessor and PWM dedicated chip).
2. High-precision control in radiography time: Minimum exposure time is 0.0025 second, and quick radiography is accessible at any time without the influence of power phase, thus high-quality images are easily achieved and radiation to patients is minimized.
3. High-precision tube current control: The heating of x-ray tube adopts dual-stage high frequency converter, through taking sample tube current by high-speed running A/D converter and implement real-time control through micro-processor.
4. Various parameter-setting keys: You can select kV, mA and mAs to set the desirable radiography conditions.With quick human body parts programming, it simplifies the operation
procedures.
5. Self-protection & self-diagnosis: Once malfunction occurs, generator will self-protection and give an alarm.
6. Compact structure, reduce installation space.
7. Digital upgradable.

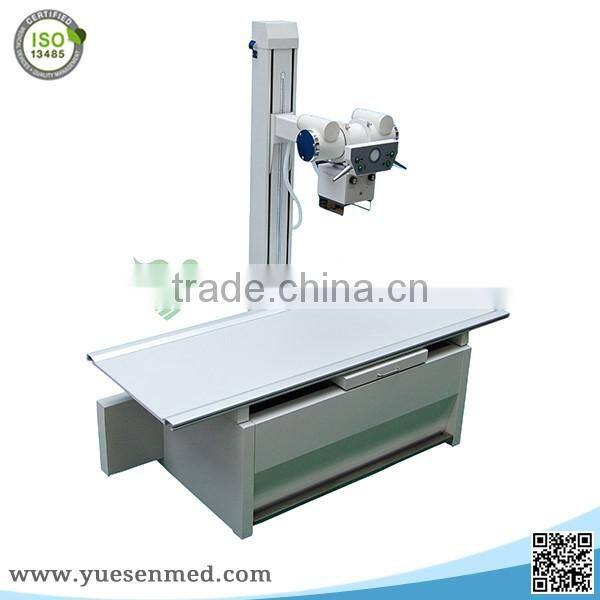

Configuration
No |
Part Name |
Qty |
1 |
X-ray tube |
1 |
2 |

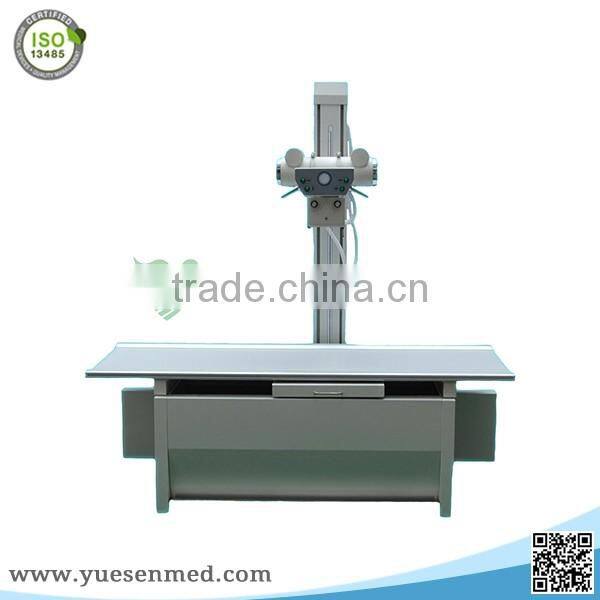

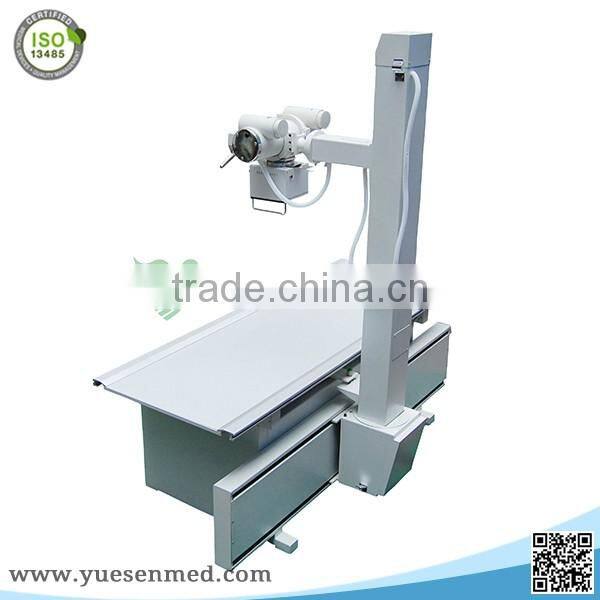

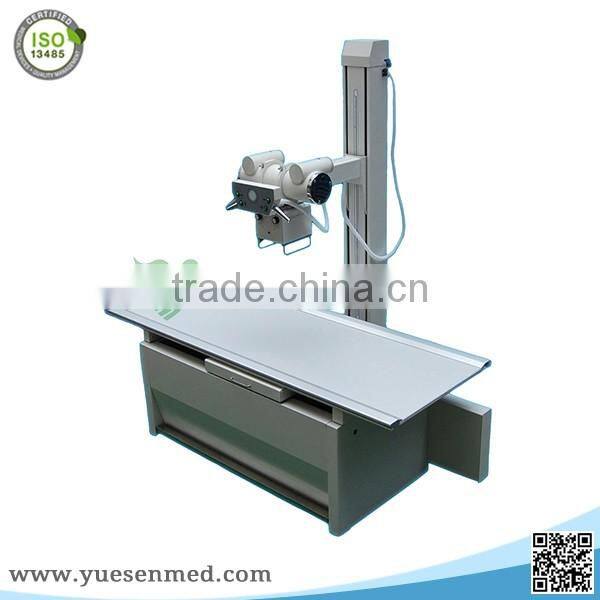

Radiographic floating table |
1 |
3 |
Collimator |
1 |
4 |
Microcomputer console |
1 |
5 |
High-voltage generator, |
1 |
6 |
High-voltage cable |
2 |
7 |

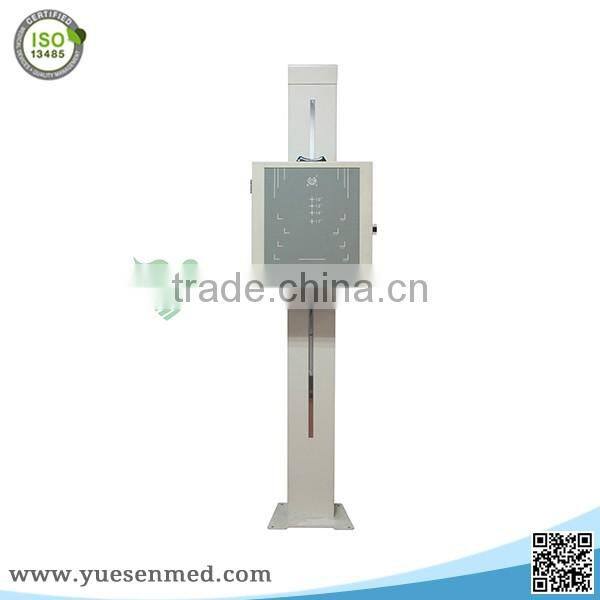

Vertical bucky stand |
1 |
Technical specifications
CONTENTS |
YSX200G(20kW) |
YSX500G (50kW) |
Intermittent mode |
100kV, 200mA, 20kW |
100kV, 500mA, 50kW |
Power voltage |
380V±10% 50Hz±10% |
380V±10% 50Hz±10% |
Tube current |
Radiography 16mA~200mA |
Radiography 46mA~630mA |
Output voltage |
Radiography 40-125KV step by 1kV; |
Radiography 40-125KV step by 1kV; |
Resistance power |
less than 0.5Ω |
less than 0.5Ω |
Output power |
20kW |
50kw |
Exposure time |
Radiography 0.0025s~6.4s adjustable |
Radiography 3ms~6s adjustable |
Nominal frequency |
30kHz |
30kHz |
Anode rotating speed |
2800r/min |
2800r/min |
Anode heat capacity |
140KHU |
150KHU |
Focus |
Small focus:1.0mm Big focus:2.0mm |
Small focus: 0.6mm Big focus:1.0-1.2mm |
|
Length*width*height of bed surface |
2000mm×750mm×690mm Deviation:±10mm |
2000mm×750mm×690mm Deviation:±10mm |
|
Horizontal movement distance (table) |
≥200mm |
≥200mm |
|
Vertical movement distance (table) |
≥900mm |
≥900mm |
|
Distance from table surface to film |
50mm±2mm |
50mm±2mm |
|
Distance of vertical movement |
770mm±10mm; |
800mm-1100mm |
|
Moving crosswise (left & right) |
+180°~-180° deviation<±2° |
+180°~-180° deviation<±2° |
|
Moving lengthways (along ground railway) |
≥1300mm |
600mm |
|
Fixed beam filtration grid density |
≥40 lines/cm. |
≥40 lines/cm. |
Grid ratio |
10:01 |
10: 01 |
Focus Distance |
100cm |
100cm |
Cassette sizes |
5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″ |
5″×7″ 8″×10″ 10″×12″ 11″×14″ 14″×17″ |
