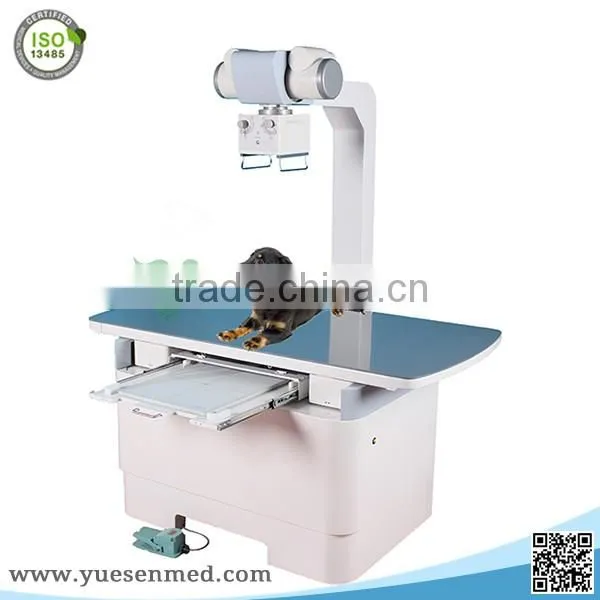

16kw 200mA Foolproof operation system medical vet x ray machine for sale
Model:YSX160-B
Features
1. 10.4” LCD touch screen
2. Foolproof operation system
3. Mains power supple(220V, 50Hz)
4. Professional veterinary protocol
5. Quality hi-voltage generator
6. Imported & home-made tubes available
7. All-direction floating table

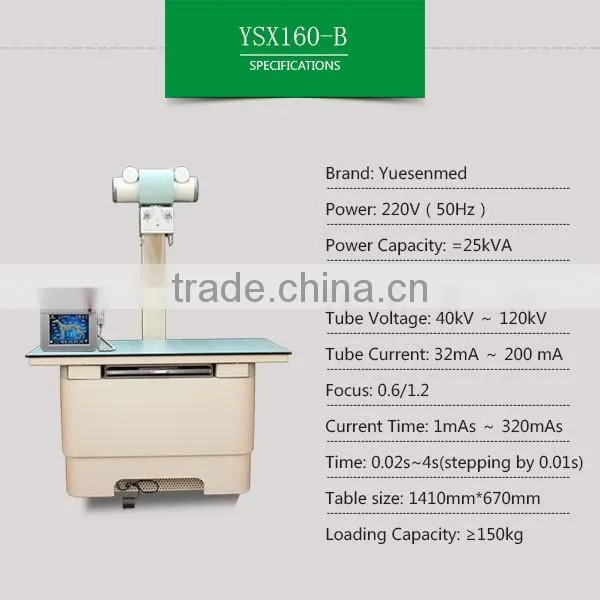

Specifications
Brand: Yuesenmed
Power: 220V(50Hz)
Power Capacity: =25KVA
Max.Output Power: 16KW
Tube Voltage: 40KV~120KV
Tube Current: 32mA~200mA
Focus: 0.6/1.2
Current Time: 1mAs~320mAs
Time: 0.02s~4s(stepping by 0.01s)
Table size: 1410mm*670mm
Loading Capacity: ≥150kg
floating table 10.4 inch LCD touch screen veterinary medical x ray machine

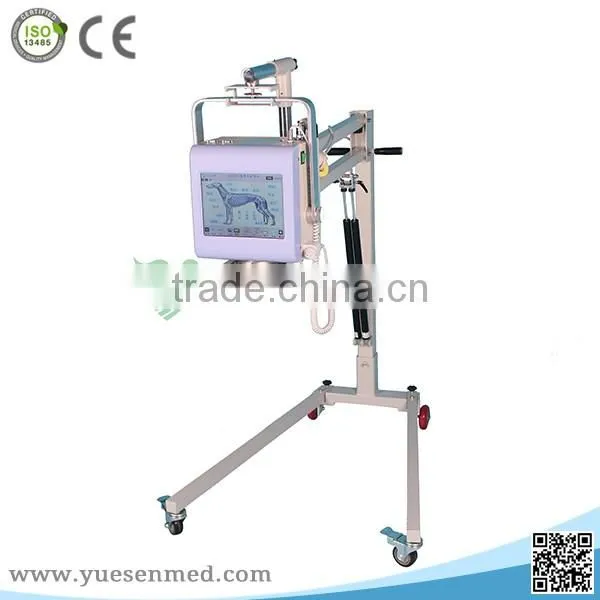

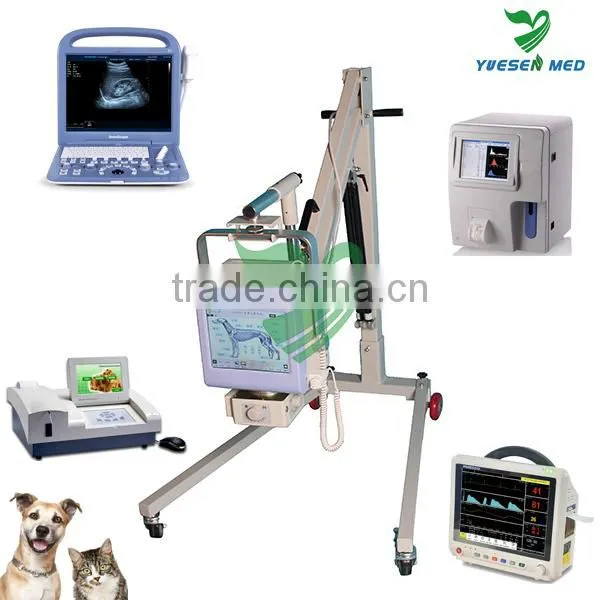

stable quality good price 4kw high frequency mobile veterinary x-ray portable
model:YSX040-A
Application
The 4kW portable high frequency x-ray unit is mainly suitable for extremities check, especially for rescues or diagnosis in field operation sites, battlefields, stadiums, vet clinics, etc.
Introduction for Veterinary Portable X-Ray Units:
1. Imported x-ray tube
2. 20m exposure remote control
3. Direct DR upgradeable.
4. Ajustable 16 pre-set shooting modes
5. Easy operation
6. High frequency high voltage generator with top quality and stable performance
7. 3 exposure modes: Remote control, Touch screen and Hand switch
Mobile stand of Veterinary Portable X-Ray Units:
Height: 2.25m max
Length: 10.6m
Width: 0.75m
360 rotatable
Packing size 1230*210*460mm(L*W*H)
Features of Veterinary Portable X-Ray Units:
1. Applicable to all kinds of animals under 100KG in weight, including Tibetan mastiff
2. 16 pre-set shooting modes, ajustable and savable
3. Analong and digital double-loop high-precision control mode to ensure stable x-rays in case of unstable power source.
4. Malfunction self-protection and self-diagnosis, self-protection and alarming is in case of malfunction with traceable fault codes for easy maintenance.
Specifications for Veterinary Portable X-Ray Units:
Model |
YSX040-A |
Power supply |
Voltage: AC220V± 10%, 50/60Hz ± 1Hz Capacity: ≥5kVA; Internal resistance: ≤0.5Ω |
Maximum output power |
P =110kV×36mA=4kW |
Nominal output power |
100kV,40mA,0.1s,4kW |
Frequency |
≥40kHz |
kV adjustable range |
40kV~110kV, continuous regulation, stepping 1kV |
mA adjustable range |
36mA~60mA |
mAs adjustable range |
1mAs-200mAs,continuous regulation, stepping 1kV |
Exposure time adjustable range |
0.04s~3.2s |
Toshiba X ray tube |
Focus: 0.6/1.5mm, Thermal Capacity: 76kHU |
Anatomical program |
24 memory choices available. |
16KW high frequency Toshiba x-ray tube cheap vet x-ray machine price
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
Contact Person:Iris Chen
Mob:+0086 13826442089 (whatsapp available)
Skype: ysenmediris
E-mail also welcome!
