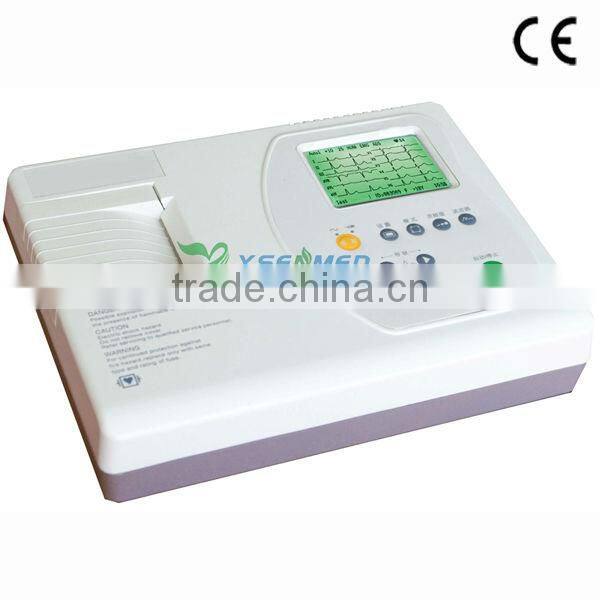

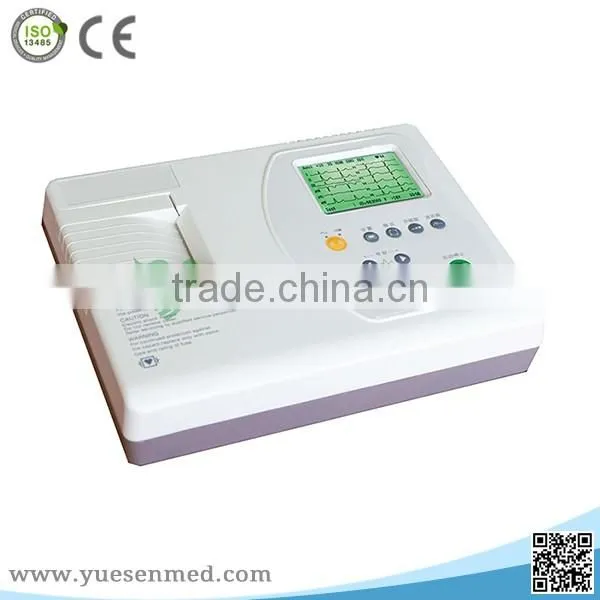

YSECG-03A Hospital simple body popular portable multichannel ecg machine
portable ecg machine
Digital design, big LCD displays operation menu and waveforms
Simultaneous 12 leads acquisition
Intergrated printing system to enhance the stability and definition of printing
Equipped with LAN and RS-232 network connection
Manual/auto operation,multi-auto functions
Perfect ECG measurement and analysis systern
Meets IEC-CF safety standard,DC/AC auto-exchange
Primary technique index
Lead system 12 leads, 3 channels sampling synchronized
Input mode Floating and Eliminates trembling protects
Input impedance >50M Ω
Output impedance < 100 Ω
Patient leak current < 10 µA
Input loop current ≤ 0.1 µA
Calibration voltage 1mV±1%
Output voltage 0.5mm/mV±3%
A/D conversion 14 bit
Frequency response 0.05Hz-150Hz
Time constant >3.2s
Common-mode restrain ratio >80dB
>100dB(with AC filter)
EMG filter 25Hz(-3dB)/35Hz(-3dB)/35Hz(-3dB)
Standard sensitivity 10mm/mV±0.2mm/mv
Sensitivity selection 2.551020mm/mV, Transformation error±3%
Polarization-endured voltage ±400mV
Noise level ≤ 15 µVp-p
Baseline control Auto-adjusting
ECG output 0.5V/mV±5%, single port= 100 Ω
Power supply Ac: 200V, 50Hz, 15VA
Dc: 12V rechargeable battery
safety standard IEC I category, CF style
Operation method Auto or Manual
Analysis function ECG parameters auto-measure, auto-analysis
Printing speed 12.52550mm/s±1%
Recording system Thermal-array printing system
Recording paper standard high-speed rool 50mmX30m
Dimensions (L x W x H)310X230X70mm
Packing size (L x W x H)400X360X130mm
Net weight 2.7kg
Gross weight 4.5kg
portable ecg machine
portable ecg machine
portable ecg machine
portable ecg machine
