YSVV500 Low price medical best
injection LED portable vein light finder
Vein Finder
With the gradual improvement of people's living standards, the rate of obesity also
increases daily.
Since it is hard to locate and trace veins of the obesity and some infants, venipuncture
has become an increasingly challenging field for medical practitioners and brings great
pains to the patients during injection or blood-drawing. It is not surprising if a medical
practitioner cannot find blood veins accurately. The rate of successful venipuncture for
the first time is as law as 70%.To help medical personnel to locate blood veins easily,
Yueshen has developed this Projection Vein Finder.

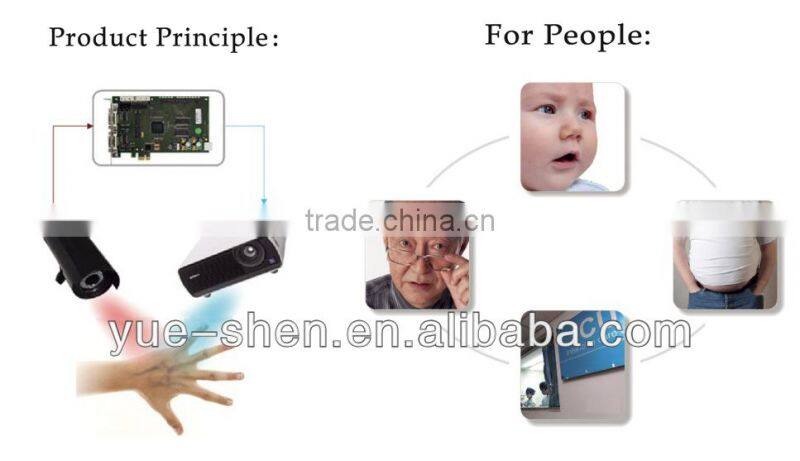

PVF is designed on the principle that hemoglobin has a stronger absorption under
near-infrared light. After the photosensitive element acquires the infrared image of the skin,
the product maps the outline of the vein through a series of digital image processing. Then,
the projector projects the image on the surface of human skin to restore vein distribution.
PVF is easy and simple to operate. Qualified medical personnel can easily locate for
venipuncture by observing the vein image.
Features:
Mode
protable Vein Finder System
normal mode, green light mode, image enhanced & vein depth recognition mode,
reverse mode, child mode
Specifications
Model Name: | vein finder |
Dimention: | 22cm*6.5cm*6.5cm |
Weight | 1.1lbs (500g) |
Brightness | 10 lumens |
Depth of Visualization | Up to 8mm |
Light Source | LED lights with completed eye safety |
Power Specifications
Power source | Battery or AC (outlet) |
Battery life | Up to 100mins continuous run time |
Voltage Requirements | 100~240VAC,1.3-0.7A,50~60HZ |
Duty Cycle | Continuous |
Environment Specifications
Operating Temperature | +32°F to +113°F (0°C to 45°C) |
Storage Temperature | +14°F to +113°F (-10°C to 45°C) |
Storage Humidity | 5% to 85% non-condensing |
Atmospheric Pressure | 700 hPa – 1,060 hPa (Storage and operating) |
Operating Humidity | 5% to 85% non-condensing |
Safety | Tested and complies with General Requirements for radiated and conducted emissions |
Durability | Drop tested per IEC/UL 60601-1 |
Regulatory Classified | CE Class 1 Exempt |
Accessories
protable Vein Finder System
1. Battery ( 1 pc )
2. Battery charger ( 1 pc )
3. Stand Bracket ( 1 pc )
Warranty :
protable Vein Finder System
1 . Service and spare part : 1 (one) Year
On Call Service 24 Hours
Stand:
Vein Finder

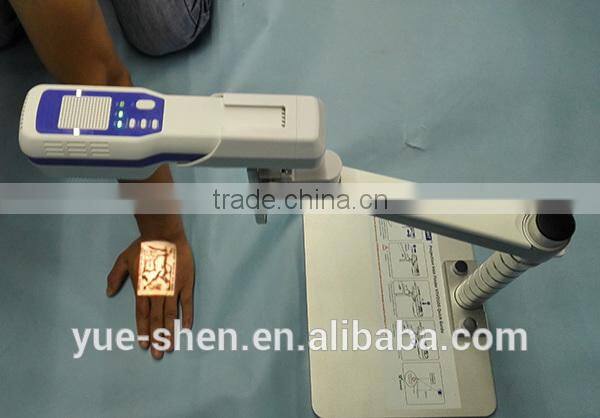

Test
Vein Finder

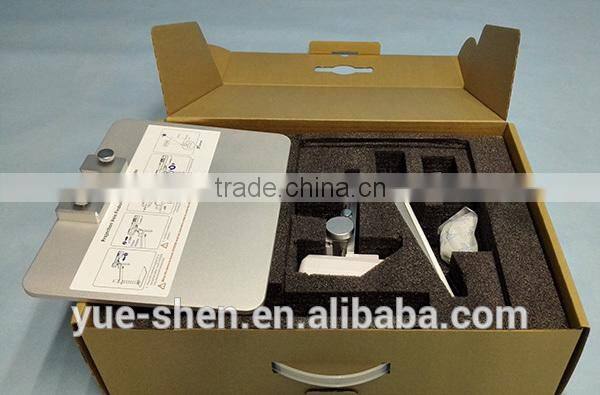

Package
vein light finder
Vein Finder
Vein Finder
vein light finder
vein light finder
