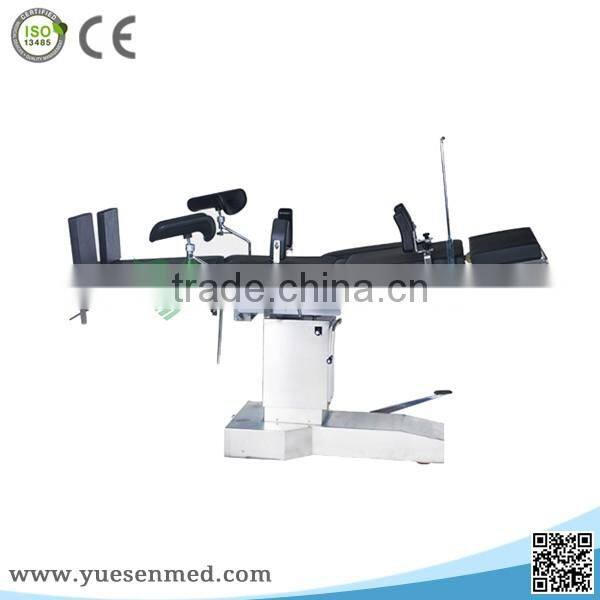

Good Quality Low Price Medical Operation Room Hospital Theatre Table

Good quality low price medical operation room hospital theatre table

Model:YSOT-JY3

YSOT-JY3 operation table is suitable for various operations conducted by medical unit.

Features:

Various actions are controlled by hydraulic pneumatic system and mechanical driven system.

Head plate can be exchanged with leg plate which can fulfill the needs of C type arm complete examination, X-ray photography.

Imported Y type sealing ring is durable.

The table surface adopts imported carbon plastic plate,the mattress adopts high density memory sponge and is once formed,with no seam.

Quality stainless steel 304 is used for base plate, column shield and rails on both sides of the table, easy for cleaning and sterilization.

Foot treadle brake device which is easily for moving operating table.

Standard Accessories:

A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband.

TECHNICAL SPECIFICATION:

Length: 2000±50mm

Width: 480±20mm

min-max height:(700-950)±50mm

forward≥20°  backward≥15°

leftward≥15°   rightward≥15°

Back board    Folding upward≥75°

Head board   Fold upward≥35°   Fold downward≥40°

Leg board     Folding downward≥90°

Waist board elevation ≥80mm

PRODUCT ADVANTAGE:

1.Has cassette path

2.Do X-ray

3.Air Spring control system

medical do x ray surgery OT bed hydraulic operating table

model:YSOT-JY1

Hydraulic Pneumatic System Control Operation Table YSOT-JY1

YSOT-JY1 operation table is suitable for various operations conducted by medical unit.

Features:

Various actions are controlled by hydraulic pneumatic system.

All movements of the table are manipulated using the operating handle under the head plate.

Imported Y type sealing ring is durable.

The table surface adopts imported carbon plastic plate which is easily for conducting X-ray examination,equipped with coincidence rail.

Both sides of the bed rail for the high quality 304 stainless steel.

The base adopts imported carbon cloth which can be easily cleaned and sterilized.

The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.

Foot treadle brake device which is easily for moving operating table.

Standard Accessories:

A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waistband.

TECHNICAL SPECIFICATION:

Length: 2000±50mm

Width: 480±20mm

min-max height:(700-950)±50mm

forward≥20°  backward≥15°

leftward≥15°   rightward≥15°

Back board    Folding upward≥75°

Head board   Fold upward≥35°   Fold downward≥40°

Leg board     Folding downward≥90°

Waist board elevation ≥80mm

PRODUCT ADVANTAGE:

1.Has cassette path

2.Do X-ray

3.Air Spring control system

stainless steel medical operating table hospital

Model:YSOT-3008A

3008A operating table features with integrated multi-function is suitable for various operations conducted by medical unit.

stainless steel medical operating table hospital

Features

3008A type base a high 304 stainless steel,which is anti-corrosive and can be easily cleaned.

Imported Y type sealing ring, double security without oil-leakage.

Rotary brake device which is easy for moving operating table.

All actions are controlled on both sides.

operationtable manufacturers

Technical Specification

stainless steel medical operating table hospital

Product Advantage:

China good quality medical operation room operating table surgical

Model:YSOT-3008

3008 operating table features with integrated multi-function is suitable for various operations conducted by medical unit.

FEATURES

3008A type base a high 304 stainless steel,which is anti-corrosive and can be easily cleaned.

Imported Y type sealing ring, double security without oil-leakage.

Rotary brake device which is easy for moving operating table.

All actions are controlled on both sides.

TECHNICAL SPECIFICATION:

PRODUCT ADVANTAGE:

1.Base is stainless steel

economic high performance general surgical table

Model:YSOT-3001

technical specification:

length:2100±50mm

Width:480±20mm

height:(750—950)mm±50mm

forward: ≥30°   backward: ≥20°

leftward≥18°     rightward≥18°

Head board Fold upward≥45° Fold downward≥90°

Back board   Fold upward≥75° Fold downward≥18°

Leg board   Fold downward≥90°

Waist board elevation ≥120mm

Base is metalized   cold-plate

Top quality 304 stainless steel low price operating table

Model:YSOT-A1

technical specification:

length: 2100±50mm

Width: 480±20mm

height:(800—1050)mm±20mm

Head board Fold upward≥45° Fold downward≥90°

Back board Fold upward≥90° Fold downward≥20°

Leg board   Fold downward≥90°

Waist board elevation :120mm

Base is stainless steel

stainless steel cheap operating table

Best price best quality surgical operating table

stainless steel medical operating table hospital

Please let us know your specfic request. We would like to recommend you the most suitable model based on your information.
