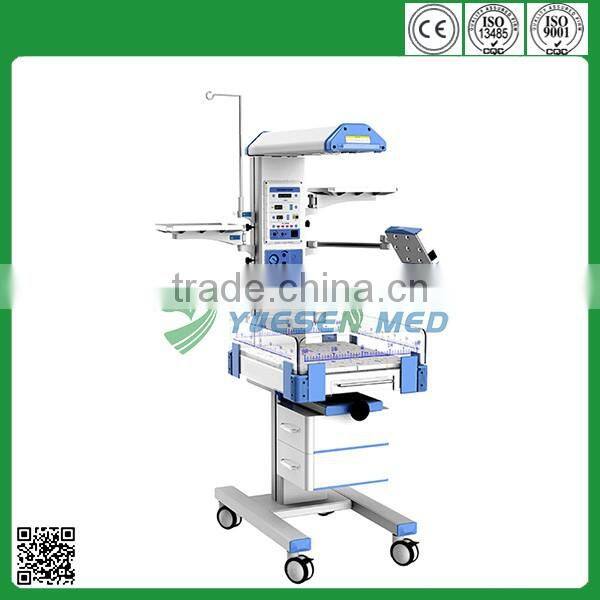

good sale infant radiant medical neonatal mobile warmer

plywood box for neonatal mobile warmer

good sale infant radiant medical neonatal mobile warmer

Model:YSBN-100T

Brief introduction:
1.Microprocessor based servo controlled temperature system.
2.The microprocessor-controlled unit allows for three settings: pre-warm, manual or automatic.
3.Alarm functions for safety includes:
  Power failure, temperature deviation,
  Temperature sensor failure , over temperature.
4.APGAR timer to record therapy time

5.Convenient X-ray cassette under infant bed

6.Heater head can be adjusted  + 90º horizontally

7.Tilt angle of infant bed is adjustable

8.Halogen Observe light angle is adjustable

9.Transparent protector folded

10.Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source,the heating is

quick and life-span

    is long

11.Alarms are audible and visual

12.A second thermal cut-out function for more safety

13.Skin temperature sensor failure protect function avoid over temperature

14.Temperature deviation can be amended in front panel directly

Standard configuration

Main body (including the radiant source, control system, infant bed, bracket), X-ray cassette , Observe light , I.V.pole, skin

temperature sensor, tray, mattress, transparent protector, castors.

Optional parts: Drawer, RS-232(485) connector

Technical data:

1.Power supply : 110/220V   60/50Hz

2.  Power input: ≤1200VA

3. Operating condition

   An ambient Temperature:18°C-30°C

An ambient Relative Humidity: 30%--75%RH

Atmospheric Pressure: 700~1060 hPa

An ambient Air Velocity <0.3m/s

4. Temperature control: 32°C~38°C

5.Temperature control accuracy: ≤0.5°C

6.Mattress temperature uniformity : <2°C

7.Skin temperature sensor accuracy: + 0.3°C

8.Warm-up time: ≤30min

9. Infant bed tilt angle:+ 10°

10.APGAR timer range: ≤24h

11.Heater head horizontal: ±90°

12.Mattress size: 67CM X 54CM

13.Distance from heater to mattress:90CM

  Top quality competitive price hospital mobile medical baby radiant warmer

Transport and storage

Environment Temperature:-40°C~ +55°C

Environment Relative Humidity: ≤95%

Atmospheric Pressure: 500~1060hPa

Package:

good sale infant radiant medical neonatal mobile warmer

medical baby radiant warmer

competitive price top quality medical infant radiant baby warmer mobile
