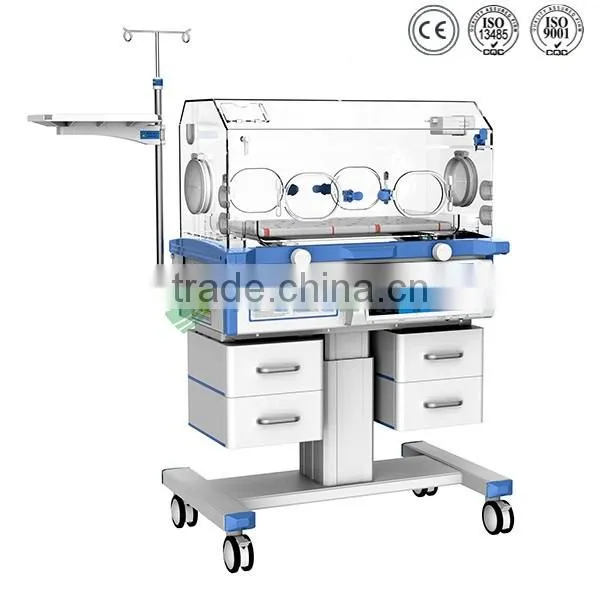

hospital baby care equipments price of infant incubator
standard export package wooden case

hospital baby care equipments price of infant incubator

Main functions:

1. Microprocessor based servo controlled temperature system

2. Temperature displayed by LED

3. Alarm functions: Power failure; Over temperature; Temperature deviation; Temperature sensor

    failure; Fan failure;

4. >37 °C temperature setting

5. A keypad lock prevent inadvertent changes the setting

6. A second thermal cut-off function for more safety

7. Humidity is adjustable in two grade

8. Heating power displayed on panel

9. The infant bed inclination angle is adjustable

10. Trough for pulling and pushing, which is convenient to add water and wash

11. Fan with low noise and long life-spa

12. Temperature deviation and over temperature could be amended in front panel directly

13. Slience/reset button for alarms

14. Six operating windows, two sides access operating windows can be swiveled

15. Support bracket.

16. Heater is electrically cut-out if air temperature inside incubator exceed 40 °C

Standard configuration:

Main body(including the transparent hood, control system, infant bed, water trough), I. V. Pole, mattress,

support bracket, castors

Optional parts:

Phototherapy up side unit;

Phototherapy from up and down sides;

RS232(485)conncector; Tray/pole;

Infant bed pulled from side door;

Double wall hood

Infant incubator real photos taken in January, 2016

We provide various equipment for New born baby. One stop shopping baby products, guarantee high quality, competitive price and fast delivery.

Brief introduction:
1. Microprocessor based servo controlled temperature system.
2. The microprocessor-controlled unit allows for three settings: pre-warm, manual or automatic.
3. Alarm functions for safety includes: Power failure, temperature deviation, Temperature sensor failure, over

    temperature.

4. APGAR timer to record therapy time

5. Convenient X-ray cassette under infant bed

6. Heater head can be adjusted + 90º horizontally

7. Tilt angle of infant bed is adjustable

8. Halogen Observe light angle is adjustable

9. Transparent protector folded

10. Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source, the heating is quick

      and life-span is long

11. Alarms are audible and visual

12. A second thermal cut-out function for more safety

13. Skin temperature sensor failure protect function avoid over temperature

14. Temperature deviation can be amended in front panel directly

Standard configuration

Main body (including the radiant source, control system, infant bed, bracket), X-ray cassette , Observe light , I.V.pole, skin temperature sensor, tray, mattress, transparent protector, castors.

Optional parts: Drawer, RS-232(485) connector

Technical data:

1.Power supply : 110/220V   60/50Hz

2. Power input: ≤1200VA

3. Operating condition

An ambient Temperature:18°C-30°C

An ambient Relative Humidity: 30%--75%RH

Atmospheric Pressure: 700~1060 hPa

An ambient Air Velocity<0.3m/s

4. Temperature control: 32°C~38°C

5.Temperature control accuracy: ≤0.5°C

6.Mattress temperature uniformity :<2°C

7.Skin temperature sensor accuracy: +0.3°C

8.Warm-up time: ≤30min

9. Infant bed tilt angle:+ 10°

10.APGAR timer range: ≤24h

11.Heater head horizontal: ±90°

12.Mattress size: 67CM X 54CM

13.Distance from heater to mattress:90CM

Transport and storage

Environment Temperature:-40°C~ +55°C

Environment Relative Humidity: ≤95%

Atmospheric Pressure: 500~1060hPa

Package:

Each unit is packed one case

Size:120CMX 70CM X 96CM

Gross weight: ≤90KG

Infant Phototherapy Unit

Phototherapy is the oldest & almost the only known mode of therapy for neonatal jaundice. Once bilirubin exceeds the accepted level for age, phototherapy must be applied as soon as possible

toavoid brain damage. Using this new intensive phototherapy device, make it possible to give a

double phototherapy effect with half costs, and save the costs of lamps & the time of stay of the

baby .

Brief introduction of Phototherapy unit:

Equal light distribution.
High intensity.
Quiet, no noise of a fan.
5 tube fluorescent lights.
Stand: for the functional placement we offer a stand on castors.
Integral timer attached to count total hours of usage.
Height adjustabl.e: 1200mm~1500mm

Technical specification:
Power supply : AC 220V/110V, 50/60 Hz
Power input : 120VA
Blue light wavelength : 425nm~ 475nm
Average radiation of blue light : 500µ w/cm²
Timer range of blue light: 0~999h 59min(reset)

Package:
Gross weight : 45kg Net weight: 25kg
Measurement:920*740*350mm
