Medical Infant Incubator, baby incubator, incubator neonatal
Main functions
1.Microprocessor based servo controlled temperature system.
2.Temperatu re displayed by LED
3.Alarm functions : Power failure; over temperature; temperature deviation; temperature sensor failure; fan failure;
4.>37°C temperature setting
5. A keypad lock helps prevent inadvertent changes the setting
6. Temperature deviation and over temperature could be amended in front panel directly
7.The infant bed inclination angle is adjustable
8.Humidity is adjustable continuously
9.Integral timer to record therapy time
10.A second thermal cut-off function for more safety.
Standard configuration
Main body(including the transparent hood, control system, infant bed, water trough), I. V. Pole, mattress,
support bracket, castors.
Optional parts
Phototherapy up side unit;
Phototherapy from up and down sides;
RS232(485)conncector; Tray/pole;
Infant bed pulled from side door;
Infant bed pulled from side and front door;
Double wall hood.
Infant incubator real photos taken in January, 2016
We provide various equipment for New born baby. One stop shopping baby products, guarantee high quality, competitive price and fast delivery.

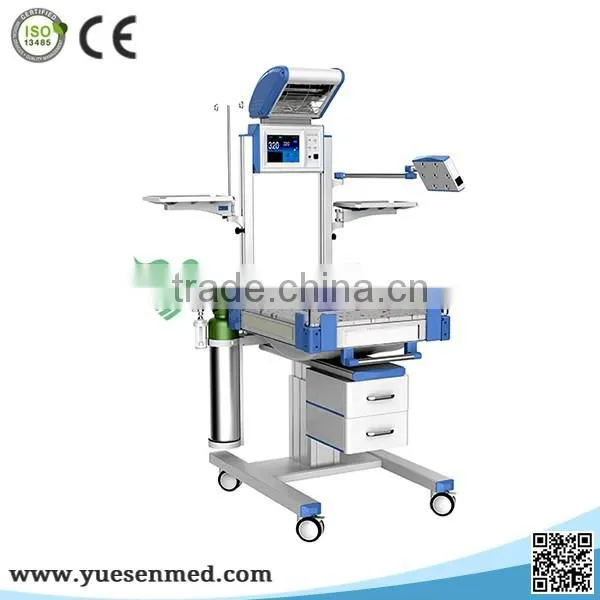

Brief introduction:
1. Microprocessor based servo controlled temperature system.
2. The microprocessor-controlled unit allows for three settings: pre-warm, manual or automatic.
3. Alarm functions for safety includes: Power failure, temperature deviation, Temperature sensor failure, over
temperature.
4. APGAR timer to record therapy time
5. Convenient X-ray cassette under infant bed
6. Heater head can be adjusted + 90º horizontally
7. Tilt angle of infant bed is adjustable
8. Halogen Observe light angle is adjustable
9. Transparent protector folded
10. Adopts anti-explosion micro crystal quartz infrared radiation tube for its radiation source, the heating is quick
and life-span is long
11. Alarms are audible and visual
12. A second thermal cut-out function for more safety
13. Skin temperature sensor failure protect function avoid over temperature
14. Temperature deviation can be amended in front panel directly
Standard configuration
Main body (including the radiant source, control system, infant bed, bracket), X-ray cassette , Observe light , I.V.pole, skin temperature sensor, tray, mattress, transparent protector, castors.
Optional parts: Drawer, RS-232(485) connector
Technical data:
1.Power supply : 110/220V 60/50Hz
2. Power input: ≤1200VA
3. Operating condition
An ambient Temperature:18°C-30°C
An ambient Relative Humidity: 30%--75%RH
Atmospheric Pressure: 700~1060 hPa
An ambient Air Velocity<0.3m/s
4. Temperature control: 32°C~38°C
5.Temperature control accuracy: ≤0.5°C
6.Mattress temperature uniformity :<2°C
7.Skin temperature sensor accuracy: +0.3°C
8.Warm-up time: ≤30min
9. Infant bed tilt angle:+ 10°
10.APGAR timer range: ≤24h
11.Heater head horizontal: ±90°
12.Mattress size: 67CM X 54CM
13.Distance from heater to mattress:90CM
Transport and storage
Environment Temperature:-40°C~ +55°C
Environment Relative Humidity: ≤95%
Atmospheric Pressure: 500~1060hPa
Package:
Each unit is packed one case
Size:120CMX 70CM X 96CM
Gross weight: ≤90KG

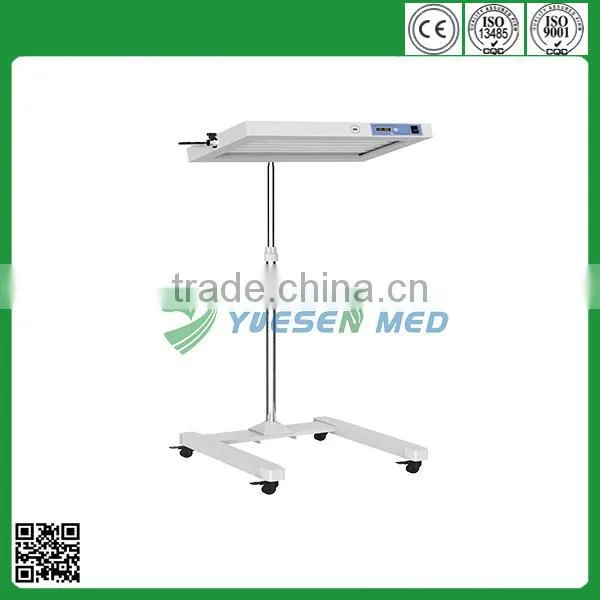

Infant Phototherapy Unit
Phototherapy is the oldest & almost the only known mode of therapy for neonatal jaundice. Once bilirubin exceeds the accepted level for age, phototherapy must be applied as soon as possible
toavoid brain damage. Using this new intensive phototherapy device, make it possible to give a
double phototherapy effect with half costs, and save the costs of lamps & the time of stay of the
baby .
Brief introduction of Phototherapy unit:
Equal light distribution.
High intensity.
Quiet, no noise of a fan.
5 tube fluorescent lights.
Stand: for the functional placement we offer a stand on castors.
Integral timer attached to count total hours of usage.
Height adjustabl.e: 1200mm~1500mm
Technical specification:
Power supply : AC 220V/110V, 50/60 Hz
Power input : 120VA
Blue light wavelength : 425nm~ 475nm
Average radiation of blue light : 500µ w/cm²
Timer range of blue light: 0~999h 59min(reset)
Package:
Gross weight : 45kg Net weight: 25kg
Measurement:920*740*350mm
Contact me to let me know your specfic request.
Contact Person:Sophie Lin
Mob:+86 15876599362 (whats app, viber available)
Skype: ysenmed-016
E-mail also welcome!
