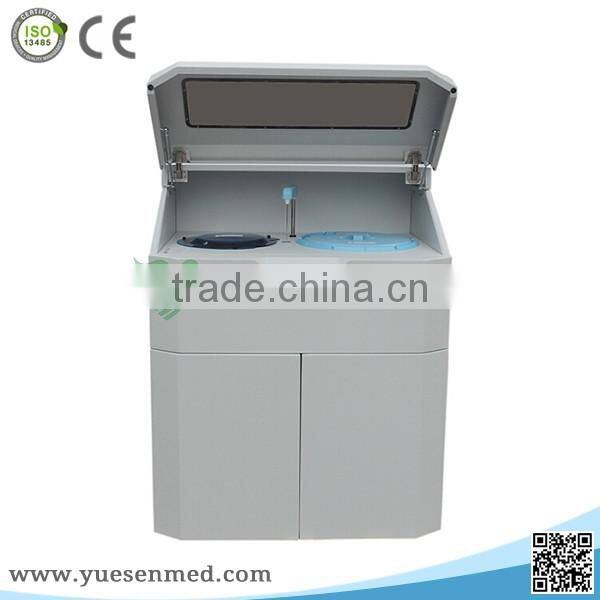

Laboratory Fully Automatic Biochemistry Analyzer
Parameters:
Automatic Chemistry Analyzer |
Specifications |
||
Analyze Unit | |||
Throughput |
Constant 200T/h(non-ISE) |
||
Theory |
Absorption spectrometry, transmission turbidimetry |
||
Methodology |
End-point,Fixed-time,Kinetic |
||
Test according setting,random access | |||
Reaction plate |
Contain 81 reaction cuvettes |
||
Maximum reaction time |
15 minutes |
||
Minimum reaction volume |
150 ul |
||
Material of cuvettes |
Special UV-transparent optical glass |
||
Cuvettes use |
One-off cuvettes |
||
Optical Unit | |||
Light Source |
Halogen-tungsten lamp |
||
Photometer |
Reversed optics |
||
Wavelength |
340nm-800nm wavelength option |
||
Absorption |
0-4 Abs |
||
Reagent Unit | |||
Reagent plate |
30 reagent positions,support for single and double reagent,reagent completely open |
||
Reagent storage temperature(option) |
4~12°C |
||
Reagent bottle |
15 ml,30 ml,dead volume is less than 0.5 ml |
||
Reagent volume |
20-300 ul, step by 0.1 ul |
||
Sample Unit | |||
Sample plate |
27 sample positions |
||
Sample type |
Human (Animal) serum,plasma,urine etc. |
||
Samples cup |
Support one-off micro cups |
||
Sample volume |
2-30 ul, step by 0.1 ul |
||
Sample/Reagent probe |
Automatically checked;Patent technology liquid level detection;Collision protection probe cleaning:Automatically washing for both inside and outside. |
||
Temperature control Unit | |||
Heating method |
Direct thermal solid thermostat closed |
||
Temperature equilibrium time |
<3 minutes |
||
Reaction temperature |
37±0.2°C |
||
Temperature fluctuation |
±0.2°C. |
||
Analyze Unit:
Throughput: constant 200 T/h (non-ISE).
81 reaction cuvette positions,multi-channel testing together.
Minimum reaction volume is 150μl, cost saving.
Determined by the sample sequence, inserted at any time emergency.
Heating method: Direct thermal solid thermostat closed.
Reagent Unit:
30 reagent positions.
Automatically detect the amount of reagent remaining,
display in real time the remaining amount of reagent.
15ml or 30ml reagent bottle. Dead volume
Support for single and double reagent, reagent completely open.
Internal barcode reader (option).
Optical Unit:
Closed integrated photovoltaic systems, no mechanical parts,maintenance free.
Light Source:Halogen-tungsten lamp;Lifetime≥2000 h.
8 Wavelength,support single or dual wavelength.
