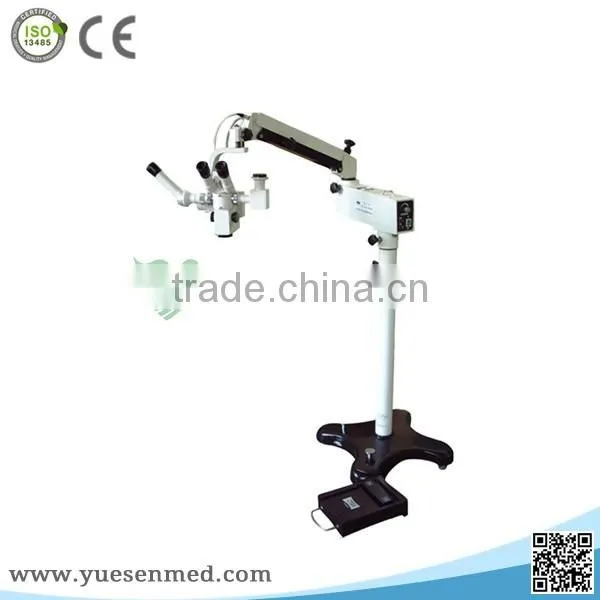

YSLZJ4D Best Selling Hospital Ophthalmic Surgical Microscope

YSLZJ4D Best Selling Hospital Ophthalmic Surgical Microscope photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Metallurgical Microscope
Brand Name:
Yuesenmed
Model Number:
YSLZJ4D
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Metallurgical Microscope
Brand Name Yuesenmed
Model Number YSLZJ4D
Place of Origin Guangdong, China

YSLZJ4D Best selling hospital ophthalmic

surgical microscope



ophthalmic operating microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic surgical microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic operating microscope



Application



This is a light multi-function operation microscope developed which can be used in the

operations such as brain surgery, ENT, ophthalmology etc.



The optical routeway of the microscope adopts the parallel optical routeway and it has

the features of big field depth, wide vision field and uniform illumination.



Single ocular teaching scope, camera interface and CCD interface are available for choice.



The instrument is also ideal for animal dissection and microsurgery teaching.



Specification



1). Binocular tube focus: 160mm

2). Eyepiece: 12.5x, wide-angle,adjustable visual degree and caging device.

3). Big objective lens: F: 200, 250, 300, 400mm (Optional: apochromatic objective lens)



4). Motorized focusing by foot control, the fine focusing range:40mm

5). The diameter of visual field: 80mm ~ 12.5mm

6). The range of ocular distance:50 ~ 75mm



7). The main microscope has six movements of degrees of freedom

     Easily adjustment by hand. Tilting range in swing:  ±30°,Tilting range in pitching: -5°~90°

8). Five steps magnification change,Ratio of magnification:1:6, magnification:4x,6x,10x,16x,24x

9). Cold light source: 12V, 100W, The maximum brightness: 80000Lux



10). Pneumatic spring balance stand.   Arm stretch radius: 1200mm

       freely rotation > 180°, Movement range of up-down ≥ 500mm

11). Voltage and frequency of power supply:  220V±10%, 50Hz±1Hz or 110V±10%, 60Hz±1Hz



Optional Accessories:



Splitter, monocular Teach mirror, digital camera interface, 1/3 inch CCD camera interface,

the optional xenon lamp lighting, 0°eyepiece.



ophthalmic operating microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic operating microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic operating microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic surgical microscope

YSLZJ4D Best selling hospital ophthalmic surgical microscope

ophthalmic surgical microscope
