Cast Iron Turnbuckle

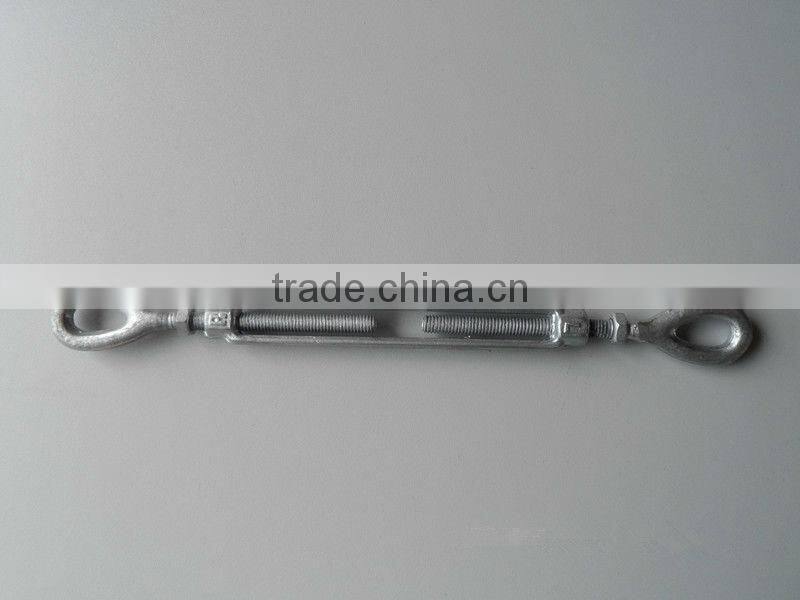

Hot Dip Galvanized Forged Eye-Eye Cast Iron Turnbuckle
1. Hot Dip Galvanized Forged Eye-Eye Cast Iron Turnbuckle
2.Technical Parameters:

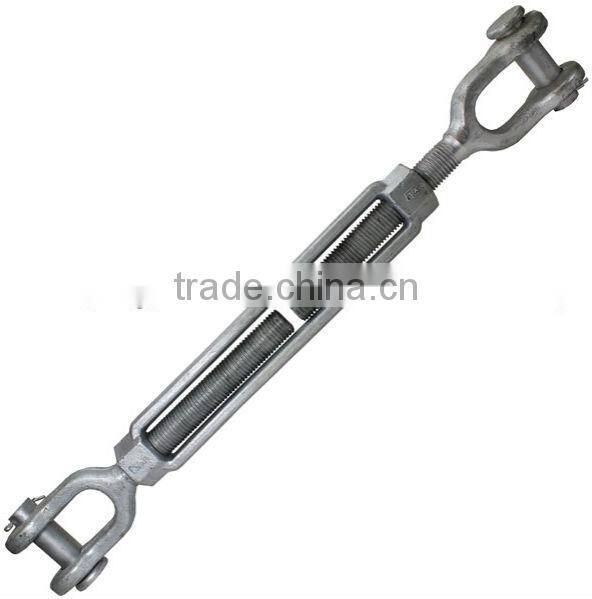

US type drop forged jaw and jaw turnbuckle
| THREAD TAKE × DIA. UP (IN) (IN) | (2)(3)(4)EYES /HOOKS(lb) | (5)JAW EYE(LB) | (6)JAW TAW(Lb) | (7)STUBS (Lb) | (1)BODY ONLY(Lb) | |
| 5/16×4-1/2 | 0.45 | 0.47 | 0.50 | 0.40 | 0.22 | |
| 3/8×6 | 0.75 | 0.80 | 0.90 | 0.75 | 0.35 | |
| 1/2×6 | 1.45 | 1.50 | 1.70 | 1.30 | 0.55 | |
| 1/2×9 | 1.90 | 2.00 | 2.10 | 1.70 | 0.80 | |
| 1/2×12 | 2.20 | 2.30 | 2.40 | 2.10 | 1.10 | |
| 5/8×6 | 2.60 | 2.90 | 3.10 | 2.20 | 0.95 | |
| 5/8×9 | 2.80 | 3.10 | 3.30 | 2.70 | 1.20 | |
| 5/8×12 | 3.20 | 3.40 | 3.60 | 3.10 | 1.50 | |
| 5/8×18 | 4.50 | 4.80 | 5.00 | 4.30 | 2.10 | |
| 3/4×6 | 3.70 | 4.00 | 4.20 | 3.40 | 1.40 | |
| 3/4×9 | 4.80 | 5.10 | 5.30 | 4.20 | 1.80 | |
| 3/4×12 | 5.50 | 5.70 | 5.80 | 4.70 | 2.50 | |
| 3/4×18 | 7.25 | 7.10 | 8.17 | - | 2.50 | |
| 7/8×12 | 8.10 | 8.60 | 7.00 | - | 2.70 | |
| 7/8×18 | 9.95 | 10.30 | 9.96 | -- | 3.80 | |
| 1×12 | 11.00 | 11.80 | 12.00 | 9.50 | 3.93 | |
| 1×18 | 14.00 | 15.00 | 14.00 | -- | 5.28 | |
| 1-1/4×12 | 19.00 | 20.50 | 21.50 | 14.00 | 5.25 | |
| 1-1/4×18 | 23.00 | 24.18 | 24.25 | - | 7.75 | |
| 1-1/4×24 | 27.00 | 28.50 | 28.00 | - | 10.17 | |
| 1-1/2×12 | 27.50 | 29.00 | 30.50 | 22.00 | 8.75 | |
| 1-1/2×18 | 31.00 | 35.00 | 36.75 | - | 11.00 | |
| 1-1/2×24 | 37.50 | 39.18 | 40.67 | - | 13.69 | |
3.Factory Introduction:
YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time
4.Company Introduction:
More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts.
5. Production Line :
Qingdao YINGJUNDA Machinery Co., Ltd. | |
ODM&OEM SERVICES | |
Service |
Drawings or samples processing/OEM/ODM service provided |
Produce Process |
Drawings→ mould making → forging →stamping → maching → surface treatment → installing →product checking → packing →delivery
|
Forging Material |
Carbon Steel, Alloy steel, Stainless steel |
Standard |
ISO, GB, ASTM, US,DIN, JIS |
Produce Equipment |
Friction Screw Press Series, CNC Lathe, Machining Center,(Vertical Spindles), CNC Milling Machine, Bench Drilling Machine, Heat Treatment Equipments and so on. |
Surface treatment |
HDG, EG, Polishing, color-Painted, self-color |
|
Inspection Equipments |
Metallurgical analysis, tensile strength tester, Hardness tester, Altimeter, Scale Micrometer, pressure tester, etc. |
Delivery |
Samples are sent by express Large quantity products delivered to customer by sea |
Terms of payment |
T/T or L/C |
6. Our Advantages:
a. Much experience in rigging hardware
b. Advanced produce and inspecting equipments
c. High quality and most competitive price
d. Convenient transportation and fast delivery
Qingdao Yingjunda Machinery Co.,Ltd.
