electric galvanized type c shackle kenter shackle
- 500 Ton / Tons per Month
- Qingdao
- T/T
You May Like
Product Details
| Type | Other, shackle | Material | Other, Steel, electric galvanized type c shackle kenter shackle | |
| Size | 3/16--2-1/2 | Model Number | c, c |
Product Description

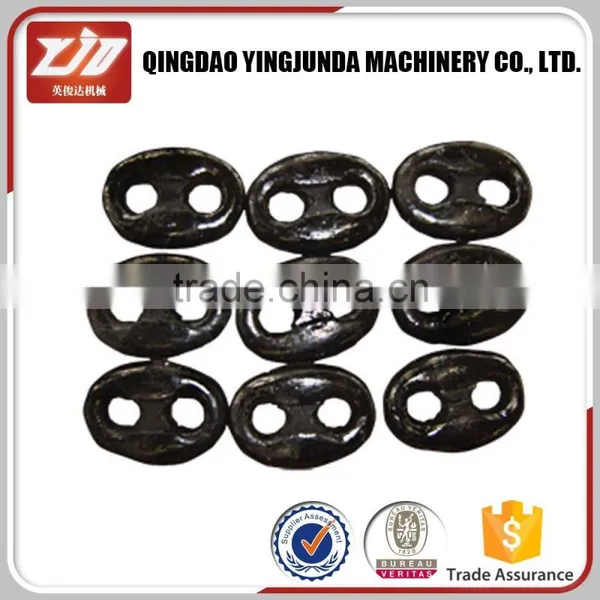

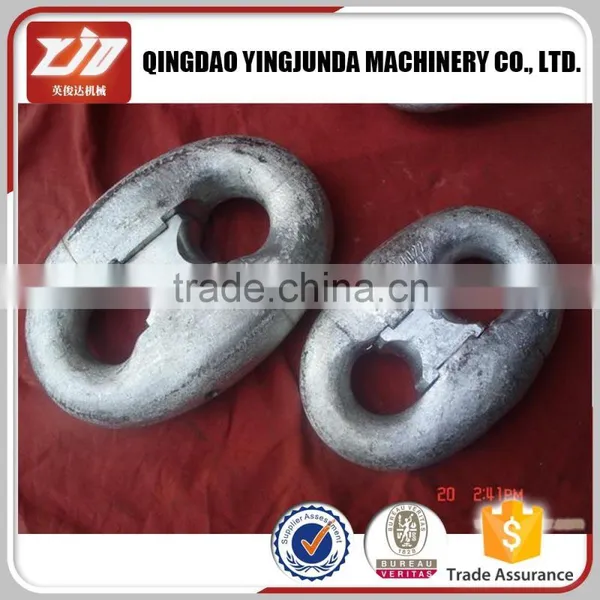

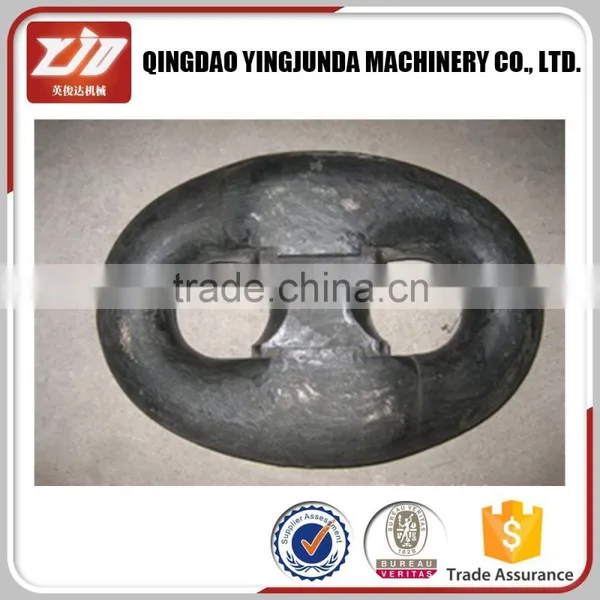

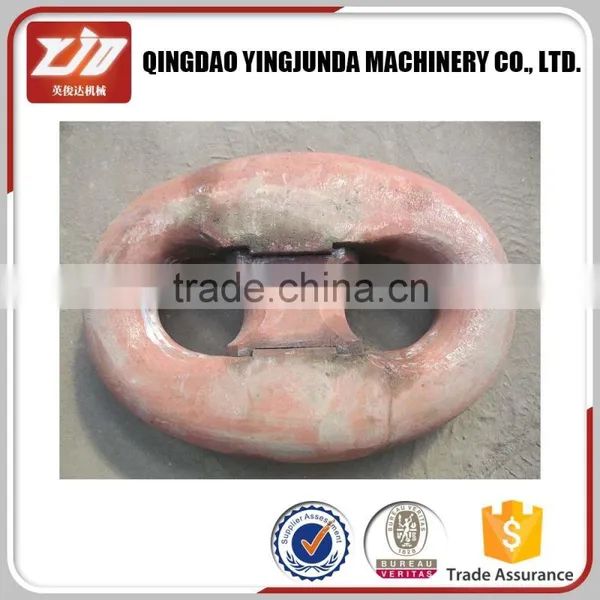

electric galvanized type c shackle kenter shackle
Product Display
Product Description
(1) rigging hardware type c shackle kenter shackle
1. W.L.L. or S.W.L. and size-- Embossed or stamped on the body.
2. Proof load-2.2 times of W.L.L.(S.W.L.).
3. Ultimate strength-6 times of W.L.L. .(S.W.L.).
4. Drop forged Hi-carbon steel body with alloy pin.
5. Proof test certificate in accor dance with specification can be furnished.
6. Stainless steel (SUS-304 or 316) shachle for these sizes as listed below aslo available.
7. Treawling shackle (with square head pin) available for all sizes.
| WORKING LOAD LIMIT (TONS) | NOMINAL SHACKLE SIZE (IN.)(P) | DIMENSIONS | WEIGHT (LBS) | |||||||
| INSIDE LENGTH (C) | INSIDE WIDTH | DIAMETER | TOLERANCE PLUS OR MINUS | ROUND PIN TYPE | SCREW PIN TYPE | |||||
| AT PIN (A) | AT BOW (E) | PIN (B) | OUTSIDE OF EYE(F) | |||||||
| LENGTH | WIDTH | |||||||||
| 1/3 | 3/16 | 7/8 | 3/8 | 11/16 | 1/4 | 9/16 | 1/16 | 1/16 | 0.06 | 0.05 |
| 1/2 | 1/4 | 1-1/8 | 1/2 | 25/32 | 5/16 | 11/16 | 1/16 | 1/16 | 0.13 | 0.12 |
| 3/4 | 5/16 | 1-7/32 | 17/32 | 27/32 | 3/8 | 13/16 | 1/16 | 1/16 | 0.17 | 0.19 |
| 1.00 | 3/8 | 1-7/16 | 21/32 | 1-1/32 | 7/16 | 31/32 | 1/8 | 1/16 | 0.25 | 0.31 |
| 1-1/2 | 7/16 | 1-11/16 | 23/32 | 1-5/32 | 1/2 | 1-1/16 | 1/8 | 1/16 | 0.38 | 0.38 |
| 2.00 | 1/2 | 1-7/8 | 13/16 | 1-5/16 | 5/8 | 1-3/16 | 1/8 | 1/16 | 0.70 | 0.63 |
| 3-1/4 | 5/8 | 2-3/8 | 1-1/16 | 1-11/16 | 3/4 | 1-9/16 | 1/8 | 1/16 | 1.50 | 1.38 |
| 4-3/4 | 3/4 | 2-13/16 | 1-1/4 | 2.00 | 7/8 | 1-7/8 | 1/4 | 1/16 | 2.32 | 2.25 |
| 6-1/2 | 7/8 | 3-5/16 | 1-7/16 | 2-9/32 | 1.00 | 2-1/8 | 1/4 | 1/16 | 3.40 | 3.38 |
| 8-1/2 | 1.00 | 3-3/4 | 1-11/16 | 2-11/16 | 1-1/8 | 2-3/8 | 1/4 | 1/16 | 5.00 | 5.32 |
| 9-1/2 | 1-1/8 | 4-1/4 | 1-13/16 | 2-29/32 | 1-1/4 | 2-5/8 | 1/4 | 1/16 | 6.97 | 6.81 |
| 12.00 | 1-1/4 | 4-11/16 | 2-1/32 | 3-1/4 | 1-3/8 | 3.00 | 1/4 | 1/16 | 9.75 | 9.50 |
| 13-1/2 | 1-3/8 | 5-3/16 | 2-1/4 | 3-1/2 | 1-1/2 | 3-5/16 | 1/4 | 1/8 | 13.25 | 13.25 |
| 17.00 | 1-1/2 | 5-3/4 | 2-3/8 | 3-7/8 | 1-5/8 | 3-5/8 | 1/4 | 1/8 | 17.25 | 17.70 |
| 25.00 | 1-3/4 | 7.00 | 2-7/8 | 5.00 | 2.00 | 4-5/16 | 3/4 | 1/8 | 29.46 | 30.38 |
| 35.00 | 2.00 | 7-3/4 | 3-1/4 | 5-3/4 | 2-1/4 | 5.00 | 3/4 | 1/8 | 45.75 | 45.00 |
| 55.00 | 2-1/2 | 10-1/2 | 4-1/8 | 7-1/4 | 2-3/4 | 6.00 | 3/4 | 1/4 | 87.12 | 85.75 |
(2)Company introduction
Qingdao YINGJUNDA Machinery Co., Ltd. | |
ODM&OEM SERVICES | |
Service | Drawings or samples processing/OEM/ODM service provided |
Produce Process | Drawings→ mould making → pre-forging →rough machining or finish machining →surface treatment →product checking and quality control→ packing →delivery |
Forging Material | Carbon Steel, Alloy steel, Stainless steel |
Standard | ISO, GB, ASTM, DIN, JIS |
Produce Equipment | Friction Screw Press Series, CNC Lathe, Machining Center (Vertical Spindles), CNC Milling Machine, Bench Drilling Machine, Heat Treatment Equipments and so on. |
Surface treatment | Heat treatment, Polishing, shot blasting, Painting, Electro-plating, Chemical Plating, |
Inspection Equipments | Metallurgical analysis, tensile strength tester, Hardness tester, Altimeter, Scale Micrometer, pressure tester, etc. |
Delivery | Samples are sent by express Large quantity products delivered to customer by sea or according to your request |
Terms of payment | T/T or L/C |
(3)Factory advantages
a. Much experiencing in forging part for 40 years history;
b. Disciplined staffs and scientific operation, and strict quality control team;
c. Enjoy the most competitive price and fast delivery time.
d. Best after sales service.
Qingdao YING JUNDA Machinery Co., Ltd. is a professional manufacturer of rigging hardware with well-equipped testing equipments and strong technical team. More than thirty five years, the company has been engaged in designing and making in shackles, turnbuckles, swivels, thimbles, hooks, bolt & nut, links, load binders, rings, wire rope clips, chains, winch & winch bar, steel cables and other rigging parts.
Meanwhile, YING JUNDA accumulates extensive experience in rigging design and research and can provide OEM and ODM service. So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.
YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.
Relying on wide variety, good quality, novel designs, reasonable prices, fast delivery time and good service, bulk products have been purchased and extensively used in North America, Europe, Australia, Southeast Asia, South Asia, Central Asia, South America, Africa and other regions, and have been highly praised by customers around the world.
