HeBei XunQiang Metal Wire Mesh Co., Ltd.

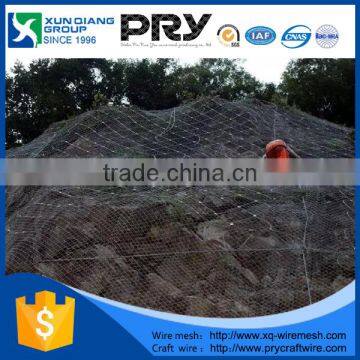

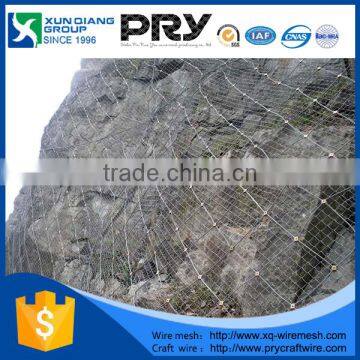

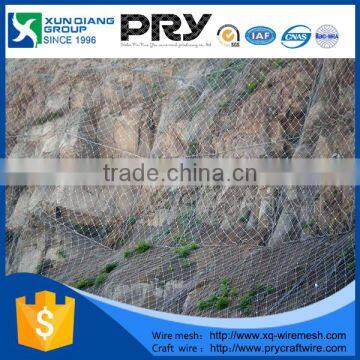

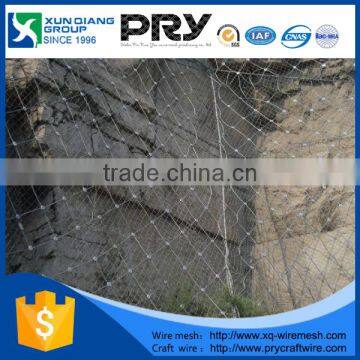

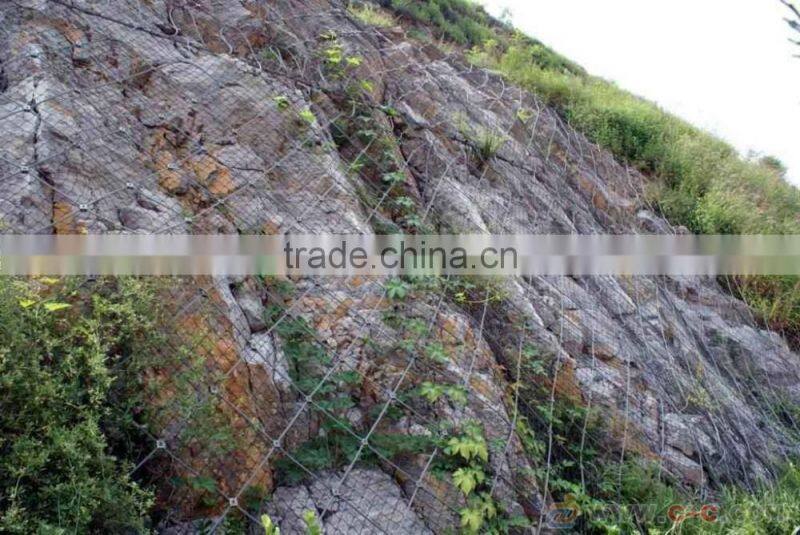

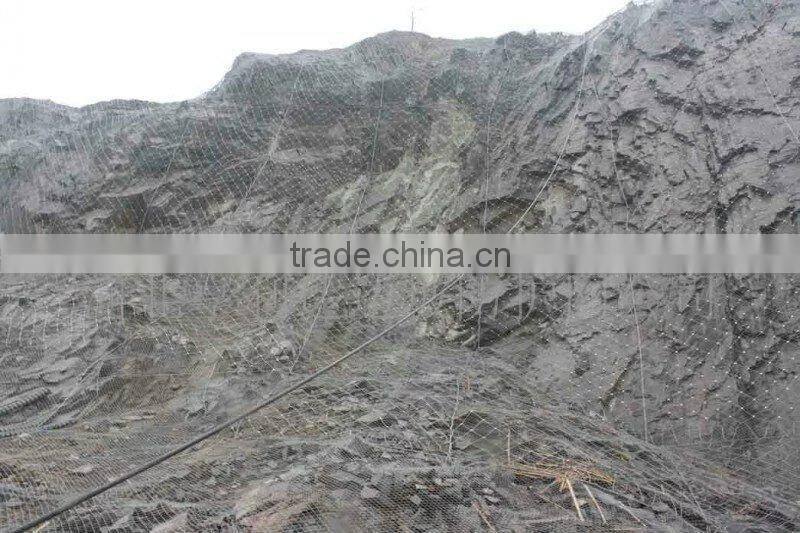

Wire rope mesh Sales Rockfall netting (factory)
Specifications
SNS slope protection wire mesh
SNS protective mesh,
SNS fence
ISO9001:2000,SGS
SNS slope protection wire mesh
Opening(mm) | Wire diameter(metal wire)(mm) | Wire diameter(PVC coate)/inner/outside*(mm) | strands |
60*80 | Ø2.0-2.8 | Ø2.0/3.0-2.5/3.5 | 3 |
80*100 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
80*120 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
100*120 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
100*150 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
120*150 | Ø2.0-4.0 | Ø2.0/3.0-3.0/4.0 | 3 |

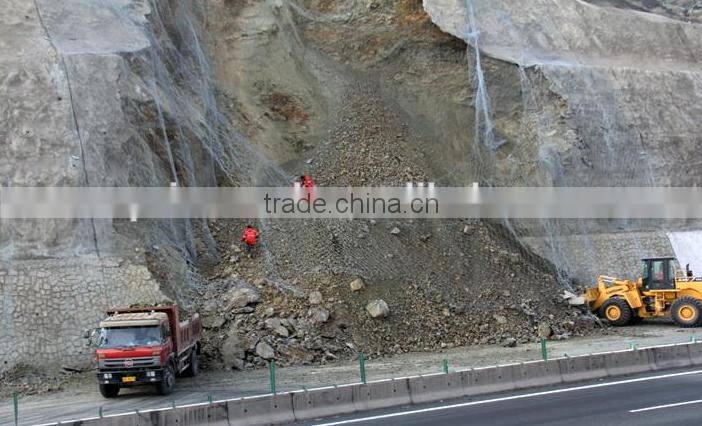

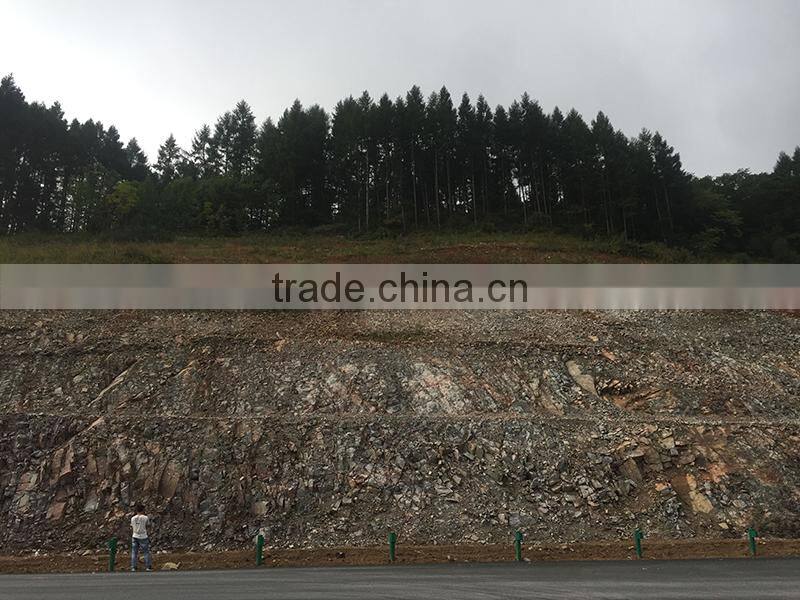

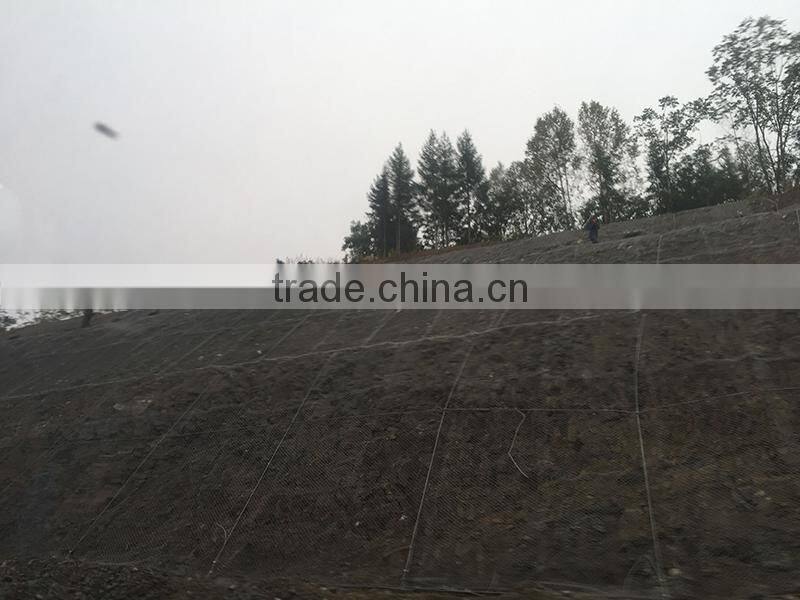

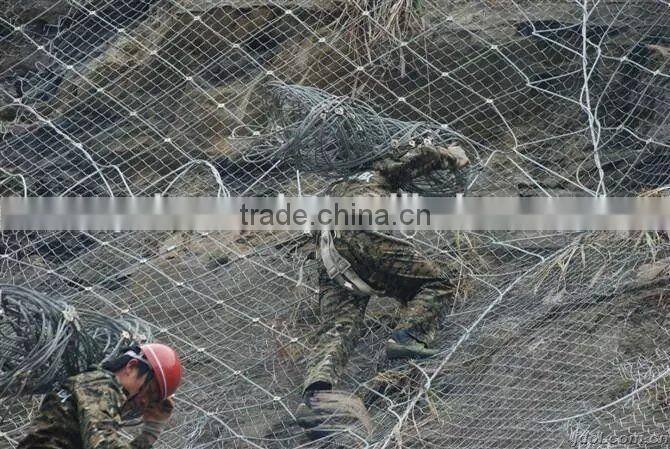

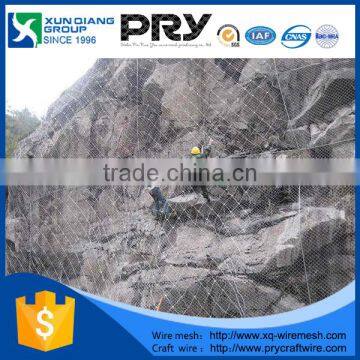

Slope protective wire mesh
The rock fall barriers and fences are composed of high strength wire grid mesh, the anchor, I-steel column, the drop-down anchor rope, the ring of energy dissipation, and the base of support rope from top to bottom, and other components. Rock fall protective fences protect the formation of the regional slope, and prevent the collapse of the rock fall.
Steel rope consisted rock fall barriers defense system is flexible to intercept and strong enough to absorb and spread the rocking, and energy dissipation of the ring net help the system's ability to further improve the impact resistance.
side slope protection fence, protective wire screen fencing, slope wire mesh fence, golf protective fence, child protection fence, tree protection fence, bridge protection fence, balcony protection fencing, slope stability fence, protective fences
1.Electro galvanized,hot dip galvanized,PVC coated
2.Wire Diameter:2.0mm-4.0mm
open: 300x300mm or other specifications as customer request
Wire rope: 8mm,10mm,11mm...(6*19IWS or other constructions)
panel size: 4mx4m...
Material: hot-dipped galvanized with knots;
Specificiation
Steel rope diameter :
Ø7mm,Ø7.2mm,Ø7.5mm,Ø7.8mm,Ø8mm
Rope specification:
7strandsx 19columns
Zinc galvanized :
Over 200g/m2
Tensile:
>1770KPA
Mesh size:
300*300mm(GB)330*330mm(Non-standard)
Size:
4000*4000mm
Suture rope :
material and specification is as the same as the mesh wire.
Support rope :
1.Horizontal and vertical rope diameter are 16mm.

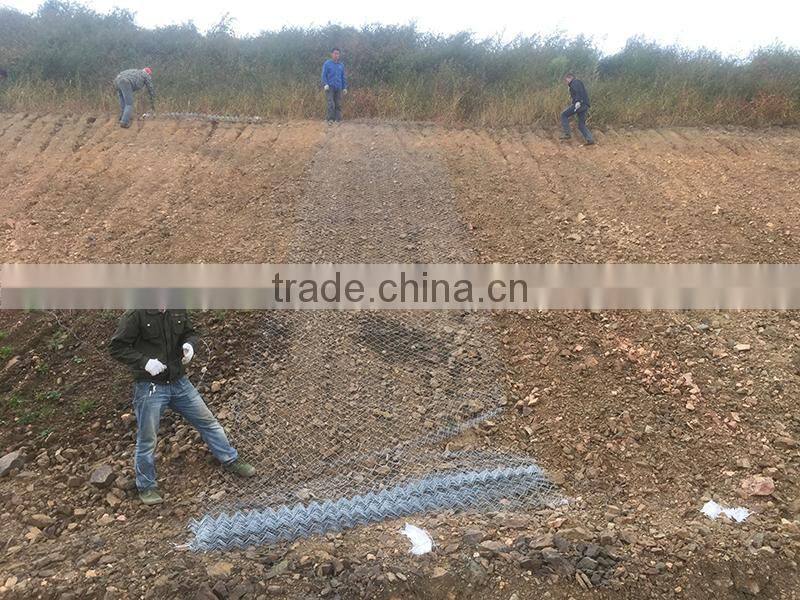

2.Horizontal rope diameter is 16mm, vertical rope diameter is 12mm.Specification for matching chain link fence
Wire :
2.2mm
Mesh:
50*50mm
Size:
10*2m
Features:
1.Hexagonal mesh pattern critical points
2.Double twist to avoid unraveling
3.Reinforcing wires woven into corners to reinforce critical points
4.A diaphragm securely attached at the base that will prevent the shifting of some and reinforce the gabion
Usage:
1.Channel Lining
2.Retaining Walls
3.Bridge Abutments
4.Mechanically Reinforced Soil
5.Landscaping
6.Culvert/Outlet Protection
Applications:
1.Flood bank or guiding bank
2.Preventing of rock breaking
3.Water and soil protection
4.Bridge protection
5.Strengthening structure of soil
6.Protection engineering of seaside area
Our team are professional maketing composed with power.We are young and capable with experience in different sectors of international trade promote an atmosphere of openness,respect and trust,bringing a sense of teamwork,collegiality and diversity to all we do.In order to our dream,we try our best and persistence,even meet big risk,we also believe that we are the best.
Through it all,we develop strong relationship with each other and we have built long term relationship with our customers.
Our services
1. Sample service
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
