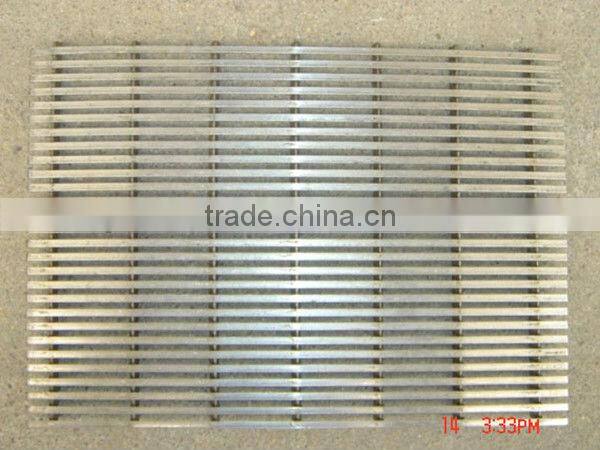

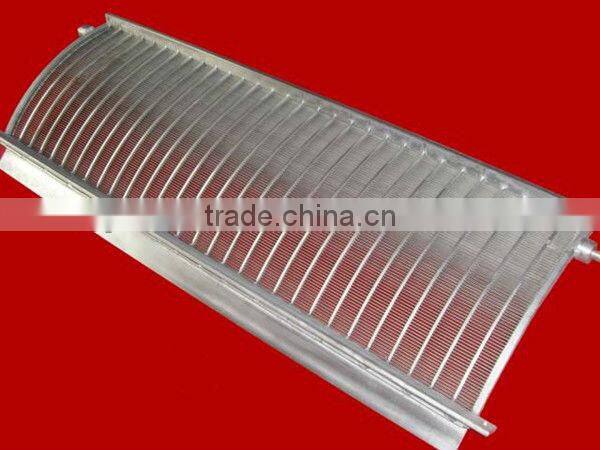

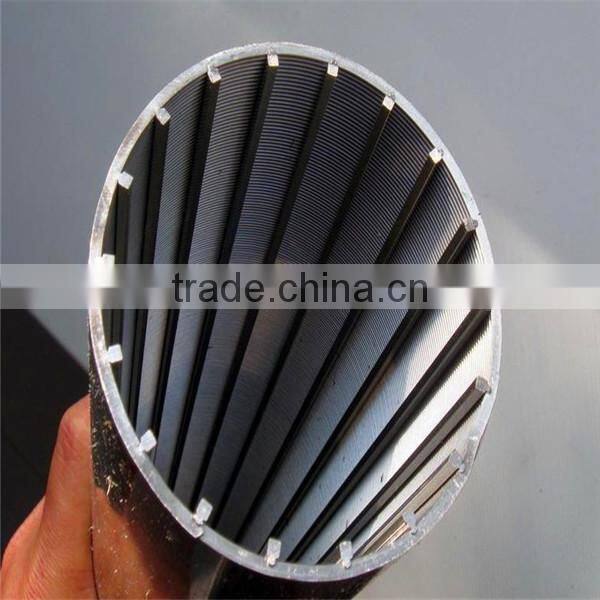

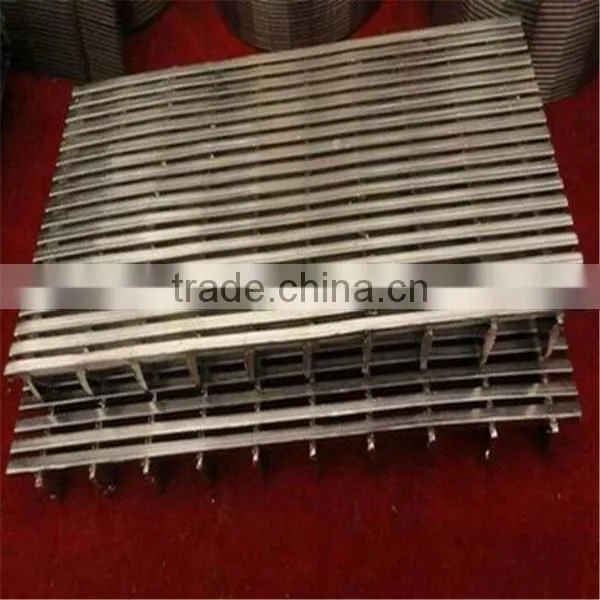

SS 316 flat welded wedge wire screen
welded wedge wire screen
Materials:SS 302, 304, 304L, 316, 316Lcan be design according to the customers' request.
Filter:From outside to inside
Styles of connection:by welding or by threaded male/female coupling.
welded wedge wire screen Specification for reference
|
SLOT (INCH) |
LENGTH (m) |
WIDTH (m) |
COLLAPSE STERENG (PSI) |
TENSILE WEIGHT (TON) |
WRAP (thinck*deep) (mm) |
RODS (mm) |
0.040 |
1-6 |
0.5-2 |
395 |
6 |
2.2*3.0 |
3.8mm/22 |
0.040 |
1-6 |
0.5-2 |
395 |
6 |
2.3*3.0 |
3.8mm/22 |
0.040 |
1-6 |
0.5-2 |
252 |
8 |
2.3*3.5 |
3.8mm/32 |
0.010 |
1-6 |
0.5-2 |
399 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.020 |
1-6 |
0.5-2 |
370 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.040 |
1-6 |
0.5-2 |
323 |
10.5 |
3.0*5.0 |
3.8mm/48 |
0.010 |
1-6 |
0.5-2 |
206 |
11 |
3.0*5.0 |
3.8mm/50 |
0.020 |
1-6 |
0.5-2 |
191 |
11 |
3.0*5.0 |
3.8mm/50 |
0.040 |
1-6 |
0.5-2 |
167 |
11 |
3.0*5.0 |
3.8mm/50 |
welded wedge wire screen application:
The welded wedge wire screen can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
Samples are free .we can send to you by DHL TNT Fedex UPS within 5-7 days
3. After-sales service
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for customers' reference.
The third-party inspection always gets real and true data from us and we will send production photos to customers
Do our best to help customer arrange the shipment and customs clearance.
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
