HeBei XunQiang Metal Wire Mesh Co., Ltd.
concrete block mesh
The product description of truss mesh
Block Width | Truss Mesh Width | Hot-Dip Weight (kg/pc) | Mill galvanized Weight (kg/pc) |
4" | 2" | 0.81 | 0.79 |
6" | 4" | 0.83 | 0.81 |
8" | 6" | 0.87 | 0.85 |
10" | 8" | 0.91 | 0.89 |
12" | 10" | 0.95 | 0.94 |
The benifit of the truss mesh
1.Reduces cracking that can arise from thermal stresses
2.Enhances elasticity and resistance to water penetration,as cracks are controlled
3.Increases performance of masonry walls under various stresses and lateral flexural strength

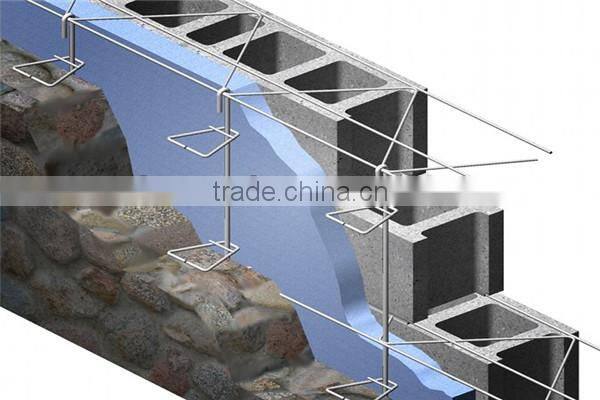

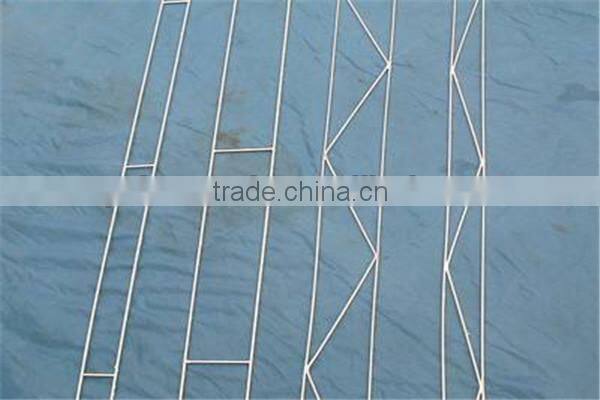

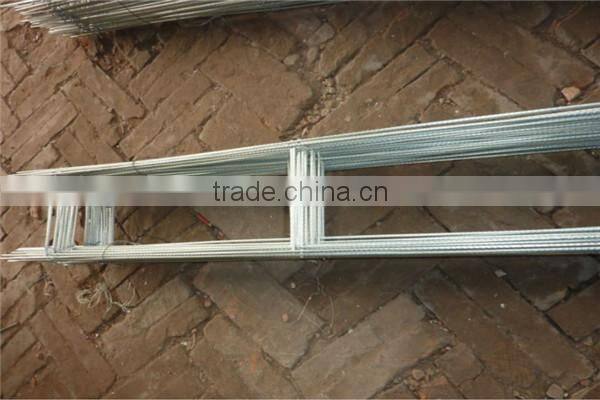

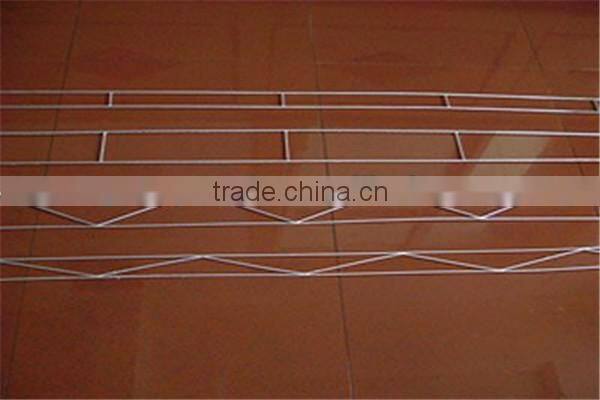

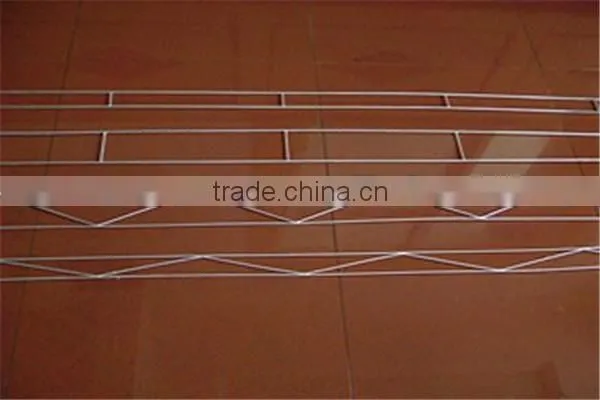

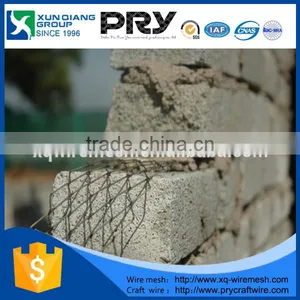

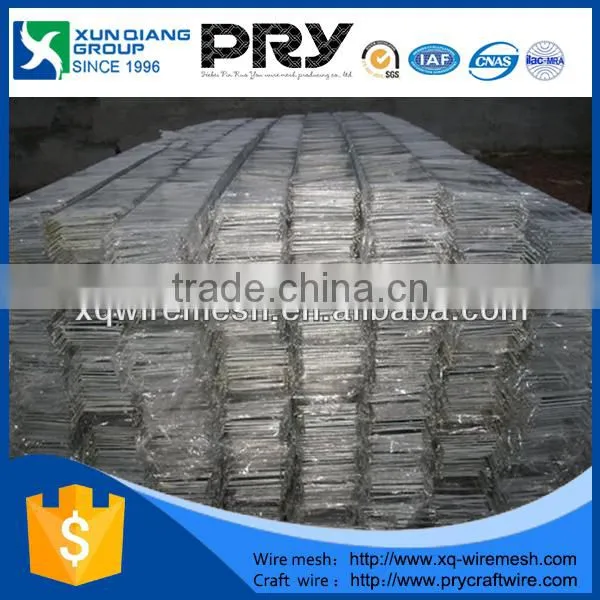

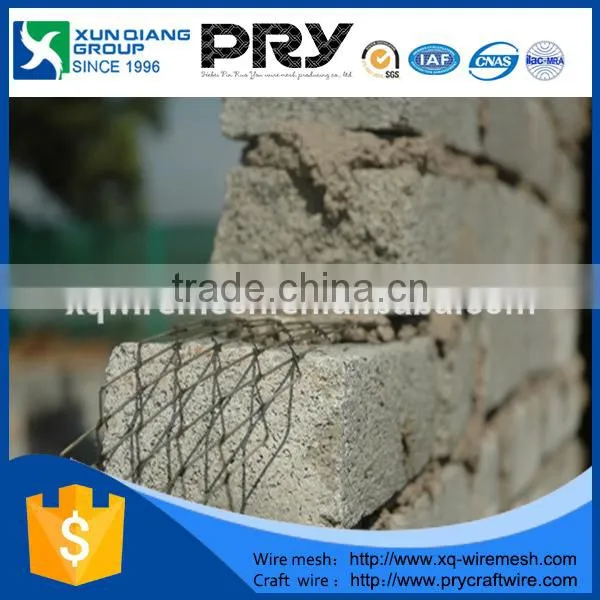

The product image of the truss mesh.

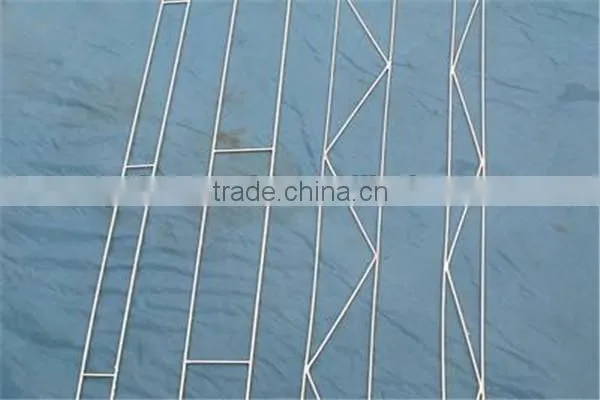

There are several kinds are available:
1. Welded after hot dipped galvanized
2. Welded after electro galvanized
3. Welded before electro galvanized
4. Welded before hot dipped galvanized
Size details: Normally 3 meters long, the space distance is 40cm, and with different
Width 5cm, 10cm, 15cm, 20cm
Truss Type Block Reinforcement Mesh Specification
Reference | Width (mm) | Thickness (mm) | Length (mm) | Material |
TM 50 S | 50 | 3/4/5 | 3000 | Galvanised steel |
TM 100 GS | 100 | 3/4/5 | 3000 | Galvanised Steel |
TM 150 GS | 150 | 3/4/5 | 3000 | Galavanised Steel |
TM 200 GS | 200 | 3/4/5 | 3000 | Galavanised steel |
TM 50 SS | 50 | 3/4/5 | 3000 | Stainless steel |
TM 100 SS | 100 | 3/4/5 | 3000 | Stainless steel |
TM 150 SS | 150 | 3/4/5 | 3000 | Stainless steel |
TM 200 SS | 200 | 3/4/5 | 3000 | Stainless Steel |
Ladder Type Block Reinforcement Mesh Specification
Reference | Width (mm) | Thickness (mm) | Length (mm) | Material |
LM 50 GS | 50 | 3/4/5 | 3000 | Galvanised steel |
LM100 GS | 100 | 3/4/5 | 3000 | Galvanised steel |
LM 150 GS | 150 | 3/4/5 | 3000 | Galvanised steel |
LM 200 GS | 200 | 3/4/5 | 3000 | Galvanised Steel |
LM 50 SS | 50 | 3/4/5 | 3000 | Stainless steel |
LM 100 SS | 100 | 3/4/5 | 3000 | Stainless Steel |
LM 150 SS | 150 | 3/4/5 | 3000 | Stainless steel |
LM 200 SS | 200 | 3/4/5 | 3000 | Stainless Steel |

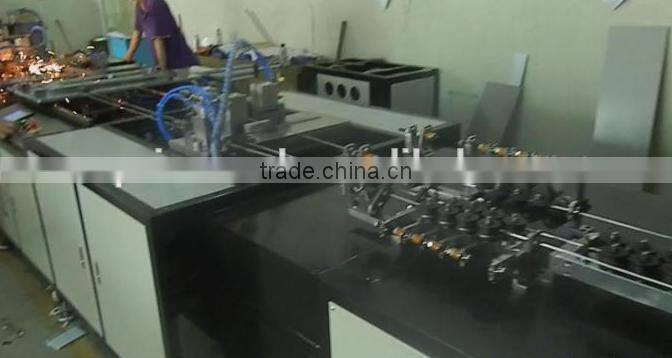

>>Contact us" href="http://xqwiremesh.en.china.cn/contactinfo.html" target="_blank">Our factory has the advanced machine and so you do not worry the quality.We can send you the sample for free. >>>Contact us
Stamping type:
Get More Information
Contact us
skype:xunqiang06
Whatspp:+8615610971700
Our services
1. Sample service
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost for
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
Our team are professional maketing composed with power.We are young and capable with experience in different sectors of international trade promote an atmosphere of openness,respect and trust,bringing a sense of teamwork,collegiality and diversity to all we do.In order to our dream,we try our best and persistence,even meet big risk,we also believe that we are the best.
Through it all,we develop strong relationship with each other and we have built long term relationship with our customers.
WE ARE LOOKING FORWARD TO YOUR ENQUIRY FOR DETAILED INFORMATION AND WILL OFFER THE BEST SERVICE AND QUALITY, THNAK YOU.
