Home > Products > Construction mesh series > High quality cheap price steel angle bar/angle iron sizes
High quality cheap price steel angle bar/angle iron sizes
- 5000 Ton / Tons per Month
- TIANJINGANG
- T/T Credit Card PayPal
Product Details
| Standard: | ASTM, AISI, DIN, EN, GB, JIS | Dimensions: | 201 304 | Grade: | 200 Series |
| Place of Origin: | Hebei, China | Brand Name: | XQ | Model Number: | stainless steel angle bar |
| Type: | Angle | Application: | Construction | Shape: | Square |
| Certification: | SGS |
Product Description
HeBei XunQiang Metal Wire Mesh Co., Ltd.
High quality cheap price steel angle bar/angle iron sizes
Specifications:
Dimensions:20*20*(3-4)--200*200*(14)
Grade:Q195-Q420 Series SS400
Application:electric power iron power
Note:We are the agent of chinese steel mills,we are the factory,except supply the raw material,we also do cutting,painting,welding and galvanising.please contact with me for any other request.
>>Contact us" href="http://xqwiremesh.en.china.cn/contactinfo.html" target="_blank">Our factory has the advanced machine and so you do not worry the quality.We can send you the sample for free. >>>Contact us
Specifications
angle steel bar
1.length:3m-12m
2.material:Q195,Q235,Q345,Q420,Q460,ss400,A3
3.hot rolled and cold rolled
- material:Q195,Q235,Q345
- size:2#-20#
- chemical composition:C Si P Mn
Advantage
- convenient in the construction
- good quality and reasonable price
- high mechanical strength
- the products can be supplied as per your demand
Specification
hot rolled equal angle steel | hot rolled unequal steel angle |
specification(mm) | specification(mm) |
20*3/4 | 26*16*3/4 |
25*3/4 | 32*20*3/4 |
30*3/4 | 40*25*3/445*28*3/4 |
36*3/4/5 | 50*32*3/4 |
40*3/4/5 | 56*36*3/4/5 |
45*3/4/5/6 | 63*40*4/5/6/7 |
50*3/4/5/6 | 70*45*4/5/6/7 |
56*3/4/5/8 | 75*50*5/6/8/10 |
63*4/5/6/8/10 | 80*50*5/6/7/8 |
70*4/5/6/7/8 | 90*56*5/6/7/8/ |
75*5/6/7/8/10 | 100*63*6/7/8/10 |
80*5/6/7/8/10 | 100*80*6/7/8/10 |
90*6/7/8/10/12 | 110*70*6/7/8/10 |
100*6/7/8/10/12/14/16 | 125*80*7/8/10/12 |
110*7/8/10/12/14 | 140*90*8/10/12/14 |
125*8/10/12/14 | 160*100*10/12/14/16 |
140*10/12/14/16 | 180*110*10/12/14/16 |
160*10/12/14/16 | 200*125*12/14/16/18 |
180*12/14/16/18 |
|
200*14/16/18/20/24 |
Mobile: 0086-15610971700 0086-18631836978
SKYPE: xunqiang6| WhatsApp: 15610971700 | Wechat: 591814752 | Web:
Chemical Elements of Hot-Rolled 201 Stainless Steel Angle Bar
| Material | C % | Mn % | P % | S % | Si % | Cr% | Ni% | Mo% |
| 201 | ≤0.15 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1 | 16.00-18.00 | 0.5 | - |
Tolerance of Different Grades of Hot-Rolled 201 Stainless Steel Angle Bar
| Grade | Specification | Side Allowble Deviation | Thickness | |||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| Tickness Allowble Deviation | ||||||||||||
| 2.5# | 25×25 | ±1.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / | / |
| 3# | 30×30 | ±2.0 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / |
| 4# | 40×40 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 5# | 50×50 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 6# | 60×60 | ±3.0 | / | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / |
| 6.5# | 65×65 | ±3.0 | / | / | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 | / | / | / |
| 7# | 70×70 | ±3.0 | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 7.5# | 75×75 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 8# | 80×80 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 9# | 90×90 | ±3.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
| 10# | 100×100 | ±4.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
All specifications can be provide as per your requirements.

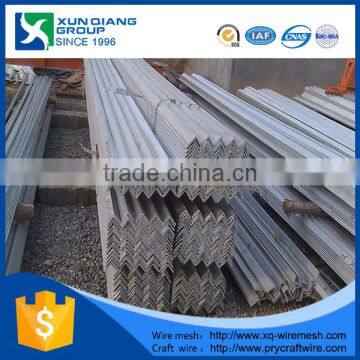

Pictures for your reference
Our Services
Our after-sales service start immediately after signing the contract.
No matter FOB or CIF the price term . we would try our best to find a lowest freight cost
The third-party inspection always gets real and true data from us and we will send production
Installation, maintenance and repair instructions with full information.
3-8 years warranty depends to different products.
Other wire mesh products we supply
Welded wire mesh, concrete reinforcement welded mesh, crimped wire mesh, square wire mesh, stainless steel security window screen, chain link wire mesh, perforated mesh, expanded wire mesh, wire mesh fece, cattle fence, barbeque wire mesh,brick wire mesh, etc.
Our team are professional maketing composed with power.We are young and capable with experience in different sectors of international trade promote an atmosphere of openness,respect and trust,bringing a sense of teamwork,collegiality and diversity to all we do.In order to our dream,we try our best and persistence,even meet big risk,we also believe that we are the best.
Through it all,we develop strong relationship with each other and we have built long term relationship with our customers.
This is our office in dubai
Contact Us
- Hebei Xun Qiang Wire Mesh Products Co., Ltd.
- Contact nameJack Ma
- Phone86-318-7889575
- AddressNo 466,The Century Diamond Square,East Zhongshan Road Shijiazhuang,Hebei
-
