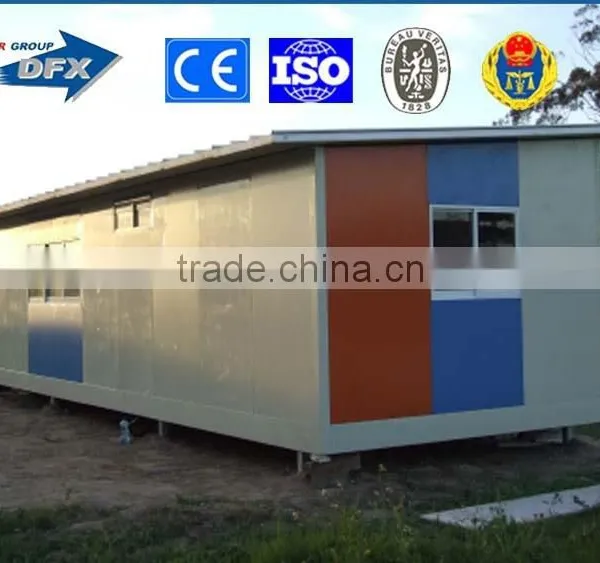

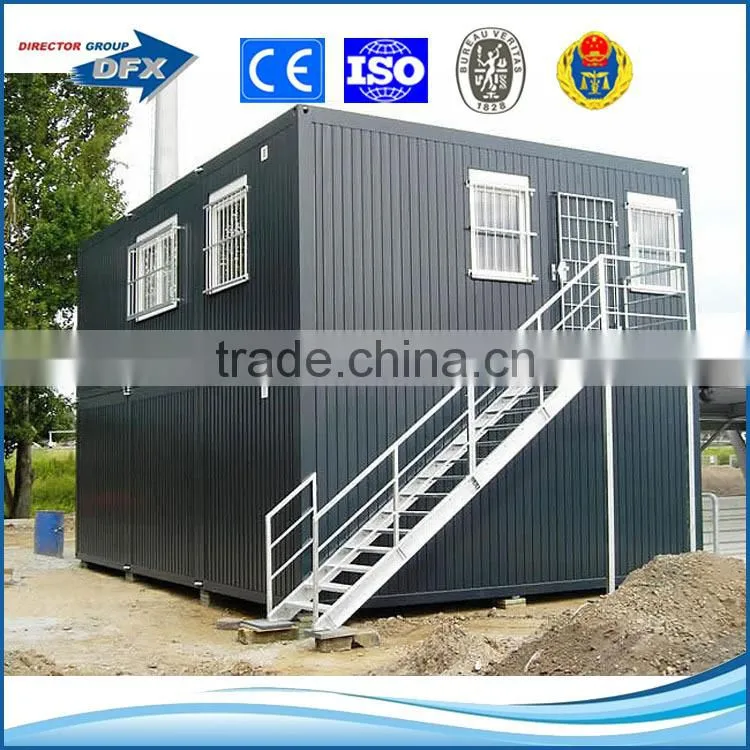

Prefabricated flat pack modular building
Specifications
2.Easy to assemble and disassemble
3.Flexible design
4.Convenient delivery
5.ISO9001
Product description
Steel stucture building is a new type of building structure system . The main steel frame is formed by linking up H-section,Z-section and U-section steel components while roof and wall using a variety of panels.
Product characterisitics
1. Possesses a wide span , with either a single or multiple spans and can have a maximum span clearance distance in 36m without middle columns.
2. Low cost with unit price ranging from USD35to USD70per square meter FOB according to customer's requirements.
3. Fastconstruction and easy installation
4. Has a service life of more than 50 years
5. The warehouses are also environmentally friendly , have a stable structure , are earthquake resistance, water proof , and energy saving
Product application
widely used as industry factory building , warehouse , gymnasium, poultry shed , school and medical clinic, etc.
Materials of Main Components
| 1. | Main steel frame : | Steel Welded H Section or hot rolled H section (specification Q235 , Q345 ) for columns and beams |
| Secondary frame : | hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc. |
|
| 2. | Roof panel : | EPS sandwich panel , glass fiber sandwich panel , rock wool sandwich panel , and Pu sandwich panel or steel sheet |
| Wall panel : | Sandwich Panel or Corrugated Steel Sheet | |
| Tie Rod: | Circular Steel Tube | |
| Brace: | Round Bar | |
| Column & Transverse Brace: | Angle Steel or H Section Steel or Steel Pipe | |
| Knee Brace: | Angle Steel | |
| Roof Gutter: | Color Steel Sheet | |
| Rainspout: | PVC Pipe | |
| 3. | Door: | Sliding Sandwich Panel Door or rolling Metal Door |
| Windows: | PVC/Aluminum Alloy Window | |
| Connecting: | post feet bolts, intensive bolt , intensive bolt | |
| 4. | Packing: | according to the pack list made by our engineer |
| 5. | Drawing: | We can make the design and quotation according to your require or your drawing |
Main Materials:
1.Q235,Q345 H section steel structure for columns and beam
2. Pre-embedding anchor bolts for connection columns to foundation
3. Intensive bolts for connection tween columns and beams.
4. Wall/roof panel: one layer corrugated stee plate or sandwich panels
5. Windows/door . PVC, aluminium alloy , steel etc.
6. Color steel plate or galvanized steel gutters and pvs tubes for rain water
We can provide the quotation , if you confirm the information as bellow:
1.Data for design
*Wind speed(KM/H)
*Snow load (KG/M2)
*Rain load (KG/M2)
*Earthquake load if have
*Demands for doors and windows
*Crane (if have) ,Crane span, crane lift height, max lift capacity, max wheel pressure
and min wheel pressure!
2.material quality
*Windows and doors quantity,size and location
*Roof and wall material ,sandwich panel or corrugated steel sheet (steel sheet can not heat insulation)
3.Type
*size--width,length,eave height and roof slope
*single slope or double slope
* single floor,double floor or multi floor
Production
Sandwich panels
Loading
