Recycled Low Cost Steel Structure Shed, Factory

Specifications

1. Steel structure shed has wide span
2. Low cost
3. Fast construction
4. 50 years service life
5. Stable structure

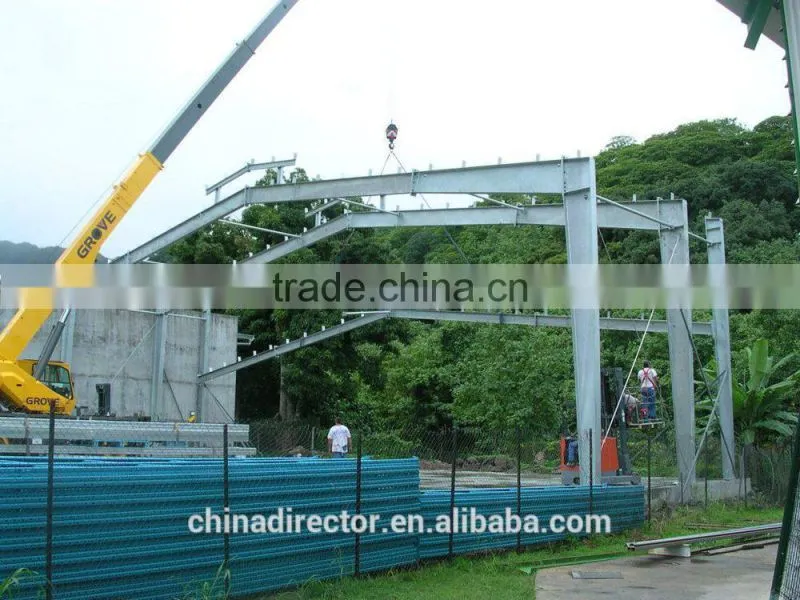

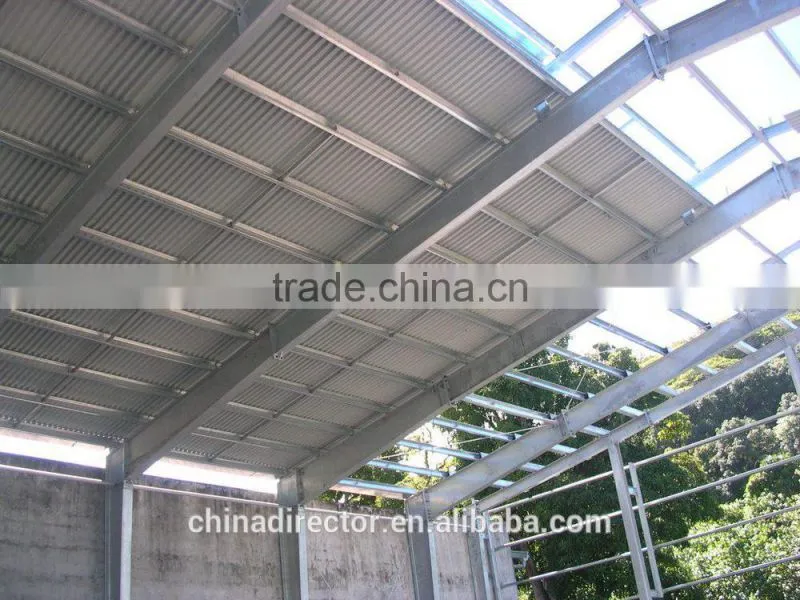

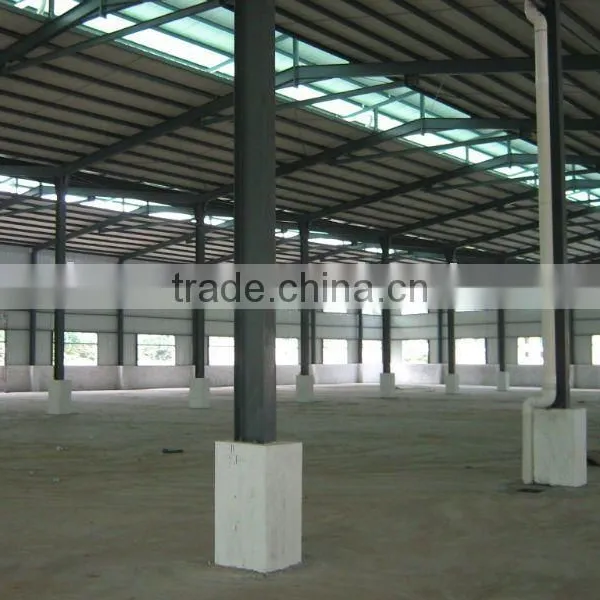

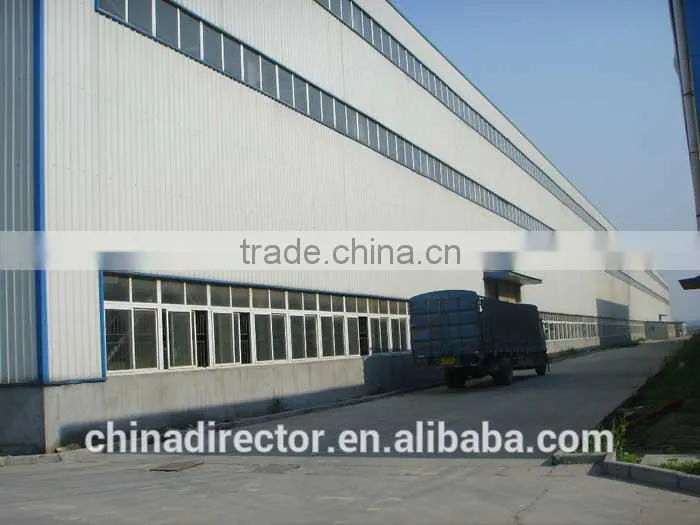

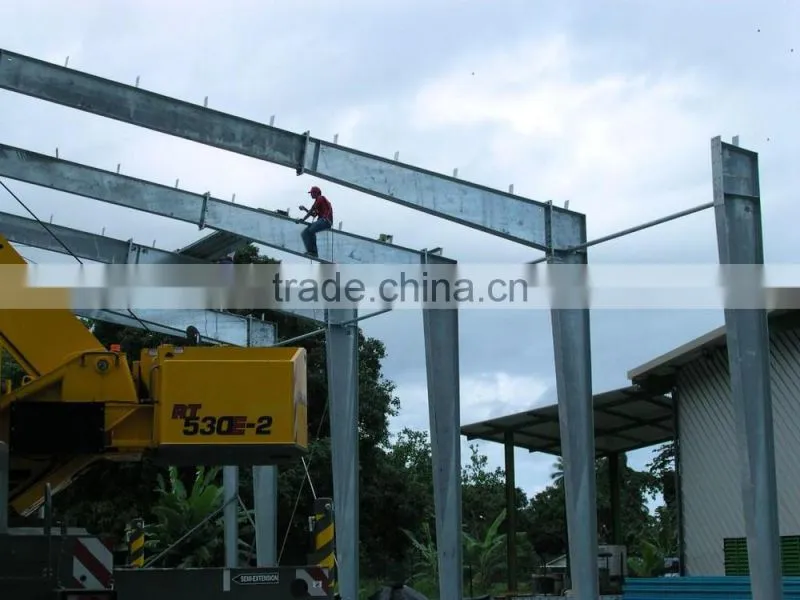

Low cost recycled high quality steel structure shed, workshop, factory:



The low cost CE certified recycled high level hot galvanized H section steel structure shed an pre-engineering steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings. And the steel structure warehouse is good at easy installation, stable structure, earthquake proofing, water proofing, energy conserving and environmental protection, etc.



Specification:
1	Main steel structure	H section steel structure
2	Steel surface treatment	painting or galvanization
3	Bracing	angle steel, belt bar, steel bar, etc.
4	Wall and roof panel	EPS, rock wool, fiber glass, PU sandwich panel or one layer corrugated steel plate
5	Bolts	anchor bolts, intensive bolts, commen bolts
6	Purlin	C section, Z section purlin in different size
7	Edge cover	Made of color steel plate
8	Gutter and down pipe	Gutter made of color steel plate or galvanization plate, PVC down pipe
9	Crane	Crane to lift 2 ton to 10 ton
10	Door	Sliding door, rolling door, lift door, etc.
11	Window	PVC window, aluminium window, steel window, etc.
12	Accessories	Nails, sealing glue, gasket, etc.
Customized design information:
1	Dimension	Length, width, height
2	Loads	Wind load, snow load, live load, dead load, etc.
3	Wall/roof thickness	With insulation: 50mm to 200mm; without insulation: 0.4mm to 0.6mm
4	Size of window and door	Door material, size
5	Steel surface treating	Painting, hot galvanization
6	Crane	If need crane, the lift weight and height



Characters:



1. Wide span: single span or multiple spans, the max span clear distance is 36m, without middle columns.

2. Low cost: unit price range from USD35 to USD70/square meter FOB according to customer’s request.

3. Fast construction and easy in installation

4. Long term service life: more than 50 years.

5. Environmental protection, stable structure, earthquake resistance, water proofing, and energy saving.
