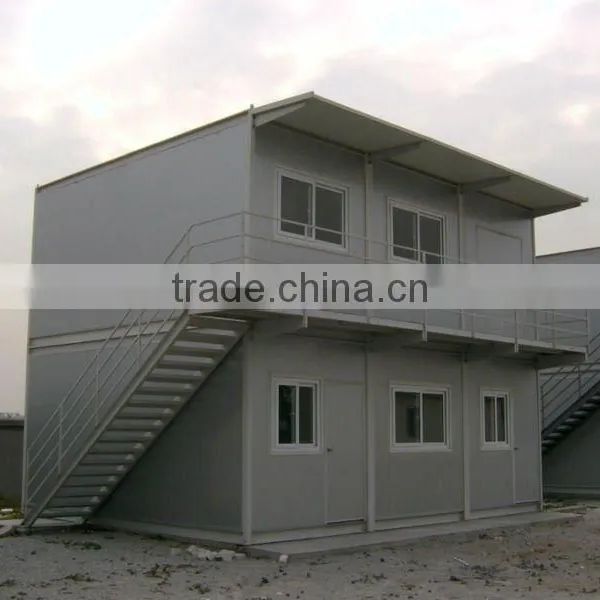

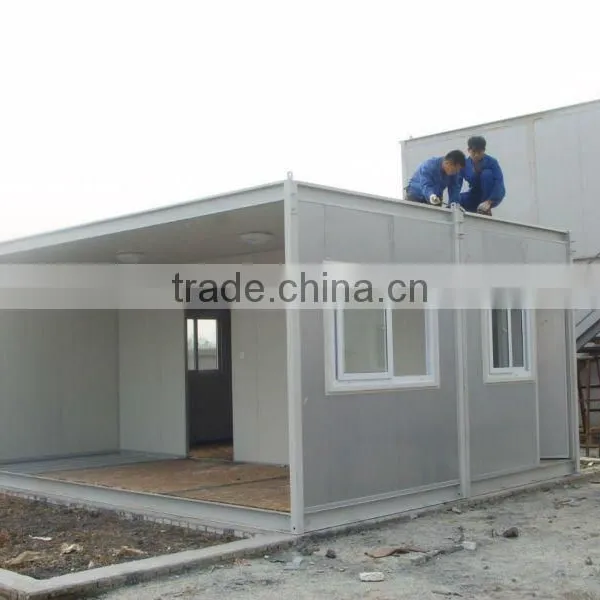

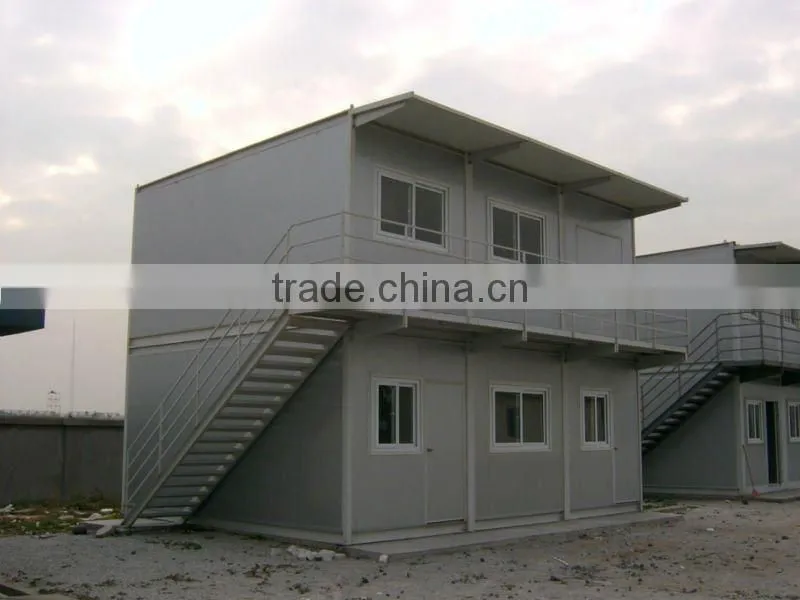

mobile work container flat pack storage container
The Charactor of Standard Container House
1) High intensity with steel structure frame welded.
2) Wall: color steel sandwich panel, such as EPS, rock wool & PU sandwich panel.
3) It can be assembled & disassembled for several times without damage.
4) Service life: 20 years
Characteristics:
No base work involved
Environment protective, no garbage caused
Doors, windows, and interior partitions can be flexibly fixed
Beautiful appearance, different colors for the wall and roof
Cost saving and transportation convenient
Anti-rust and normally more than 20-50 years using life
Safe and stable, can stand 8 grade earthquake
Technical parameters:
Wind resistance: grade 11 (wind speed ≤111.5km/h)
Earthquake resistance: grade 8
Live load capacity of roofing: 0.5kN/m2
External and internal wall heat transmission coefficient: 0.35Kcal/m2hc
Usage: offices, dormitory, hotel, remote building site, portable toilet and etc.
Technical Specification
| No. | Sort | Name | Specification |
| 1 | Specification | Length | Single ridgepole: 5950mm; unite ridgepoles:K*5950(K is the number of ridgepoles) |
| 2 | Width | Single ridgepole: 2310mm; unite ridgepoles: K*2310 (K is the number of ridgepoles) |
|
| 3 | Height | 2685 mm, can built two or three stories building | |
| 4 | Standard Options | Floor | Girder use 14a channel, material Q235 |
| 5 | Roof | Girder use 16a channel, material Q235 | |
| 6 | Gable | Post is made of 4mm thickness steel board , material Q235 | |
| 7 | Drainage System | Collect drainage system, waterspouts is parked in posts | |
| 8 | Wall Panel | 75mm color steel sandwich panel | |
| 9 | Roof Panel | 0.5mm thickness color steel coat panel | |
| 10 | Ceiling | 5mm thickness MDF panel | |
| 11 | Floorboard | 12mm thickness plywood and 8mm composite wood board up | |
| 12 | Decoration | Environmental materials, top line, corner line,door and window decoration, flooring angular line etc. | |
| 13 | Door | The door made of sandwich panel ,size 800mm*2000mm, material is the same as the wall |
|
| 14 | Window | Plastics side-hung window,size 700mm*1000mm | |
| 15 | Daylight Lamp | 2*36w double pipes grilled lamp | |
| 16 | Switch | Switch*2,20A | |
| 17 | Socket | 9 hole sockets * 2; 6 hole sockets * 1; 5 hole sockets * 2 | |
| 18 | Options | Exhaust Fan | 40w Exhaust fan |
| 19 | Partition Wall | 50mm color steel sandwich panel | |
| 20 | Structrue | Live Load | Roof 50kg/Sqm, floor 200kg/sqm |
| 21 | Wind Reistant Grade | 8 grade | |
| 22 | Earthquake Resistant Intensity | 7 degree |
Quotation
Below info needed for the quotation:
Project Name |
steel structure warehouse |
Size |
total length and width, roof and eave height, roof pitch, etc |
Roof and Wall |
option: EPS, fiber glass, rock wool or PU sandwich panel |
Door and Window |
PVC or Aluminum alloy; sliding door or rolled door |
Column and Beam |
option:hot rooled or welded H section, I section; painting or galvanized |
Purlin |
option:C-Section or Z-section |
Local Climate |
d speed |
Crane Parameter |
If need crane beam, crane tons parameter and lift height are needed |
Drawing |
1. according to clients' drawing |
2. design as per clients' dimension and requests | |
Package |
Naked loaded in shipping container or as per requests. |
Loading |
20 GP, 40HP, 40 GP, 40 OT |
mobile work container/wrokshop storage container/container workshop plans
