Bearing Pillow Block SBPF205 Pressed Steel Bearing Housing

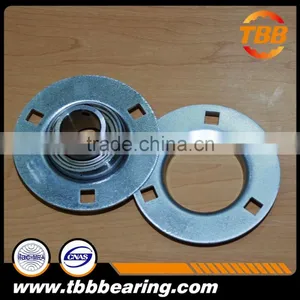

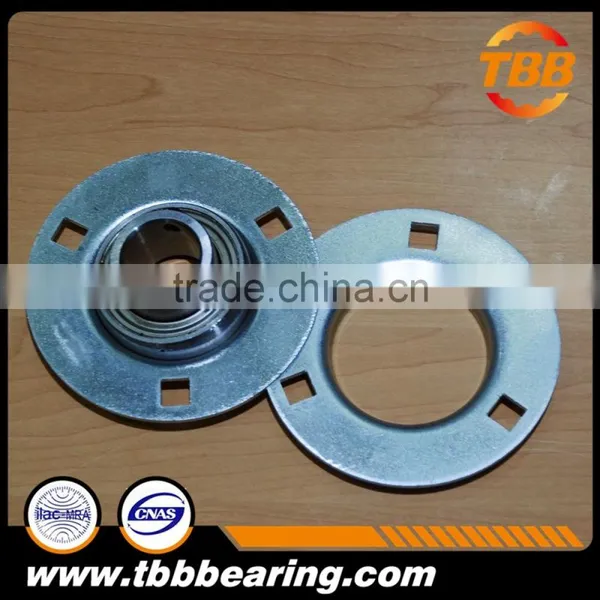

Bearing Pillow Block SBPF205 Pressed Steel Bearing Housing photo-1

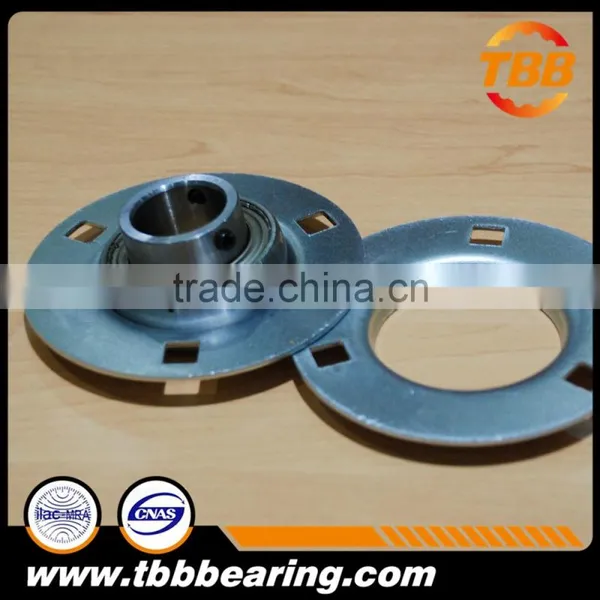

Bearing Pillow Block SBPF205 Pressed Steel Bearing Housing photo-2

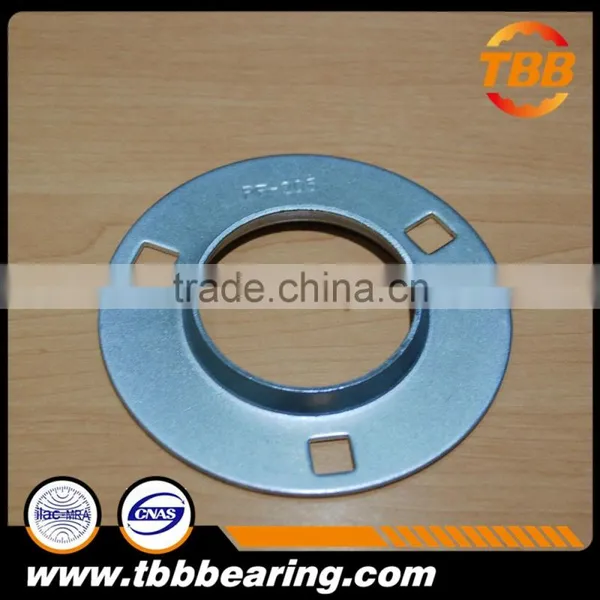

Bearing Pillow Block SBPF205 Pressed Steel Bearing Housing photo-3
US$ 1.73 - 1.78 MOQ: 100 Sets
Key Specifications
Get Latest Price
Bore Size:
25,
Brand Name:
TBB/OEM or as your requests
Model Number:
SBPF205
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.
Bore Size 25,
Brand Name TBB/OEM or as your requests
Model Number SBPF205
Place of Origin Zhejiang, China
Product Description
Pillow block bearing is composed of outer spherical ball bearing and pillow block. In application, it doesn’t need bearing housing., dimension is small and structure is simple, which is easy for use.
Pillow block bearing is solid type, which is rigid and can change with other types. They are able to compensate for initial errors of alignment. Besides, they are sealed at both sides, which can be used in agricultural machinery, construction equipment, conveyor systems, textile machines and fans as well as in machines for food and beverage processing and packaging. Main model;ucp,ucf,ucfl,uct,ucpa,ucph,ucfs, Etc
Product Parameters

pillow block bearing

Unit No.
Shaft Dia.(d)
L(mm)
Bolt Size
Bearing No.
Housing No.
Mass(kg)
SBPF201
12 mm
82
1/4
M6
SB201
PF203
0.27
SBPF201-8
1/2 in.
82
1/4
M6
SB201-8
PF203
0.27
SBPF202
15 mm
82
1/4
M6
SB202
PF203
0.27
SBPF202-10
5/8 in.
82
1/4
M6
SB202-10
PF203
0.27
SBPF203
17 mm
82
1/4
M6
SB203
PF203
0.26
SBPF203-11
11/16 in.
82
1/4
M6
SB203-11
PF203
0.26
SBPF204-12
3/4 in.
91
5/16
M8
SB204-12
PF204
0.3
SBPF204
20 mm
91
5/16
M8
SB204
PF204
0.3
SBPF205-14
7/8 in.
95
5/16
M8
SB205-14
PF205
0.38
SBPF205-15
15/16 in.
95
5/16
M8
SB205-15
PF205
0.38
SBPF205
25 mm
95
5/16
M8
SB205
PF205
0.38
SBPF205-16
1 in.
95
5/16
M8
SB205-16
PF205
0.38
SBPF206-18
1-1/18 in.
113
3/8
M10
SB206-18
PF206
0.62
SBPF206
30 mm
113
3/8
M10
SB206
PF206
0.62
SBPF206-19
1-3/16 in.
113
3/8
M10
SB206-19
PF206
0.62
SBPF206-20
1-1/4 in.
113
3/8
M10
SB206-20
PF206
0.62
SBPF207-20
1-1/4 in.
122
3/8
M10
SB207-20
PF207
0.82
SBPF207-21
1-5/16 in.
122
3/8
M10
SB207-21
PF207
0.82
SBPF207-22
1-3/8 in.
122
3/8
M10
SB207-22
PF207
0.82
SBPF207
35 mm
122
3/8
M10
SB207
PF207
0.82
SBPF207-23
1-7/16 in.
122
3/8
M10
SB207-23
PF207
0.82
