Chrome Bar

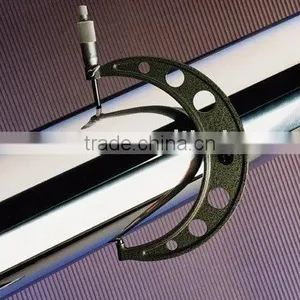

Chrome Bar thumbnail-1

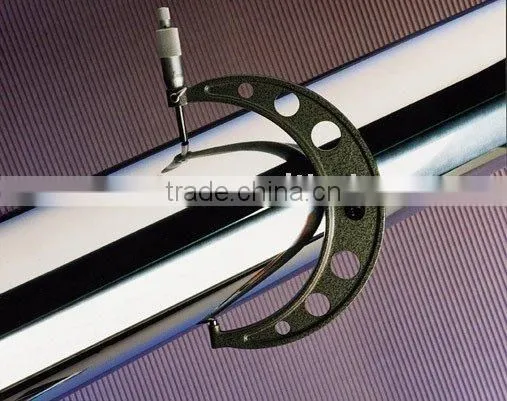

Chrome Bar photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Pipe
Contact Supplier Request Quote Chat Now
Hangzhou Chinabase Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
chinaport
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Pipe

Specifications

Precision thin-long bar, piston rod for hydraulic and pneumatic cylinder

Hard Chrome plated bar/tube details

OD mm

Longest Length

Tolerance

Straight

Chrome thickness

Roundness

6-10

2.5m

f7,h8

0.2mm/1000mm

0.01-0.015mm

0.01mm

11-16

3m

f7,h8

0.2mm/1000mm

0.01-0.018mm5

0.01mm

18-40

4m

k6,f7,h8

0.15mm/1000mm

0.01-0.035mm

0.01mm

41-70

7m

k6,f7,h8

0.1mm/1000mm

0.01-0.035mm

0.01mm

70-160

7m

k6,f7,h8

0.1mm/1000mm

From0.01mm

0.01mm

160-200

10m

k6,f7,h8

0.1mm/1000mm

From0.01mm

0.01mm



Material: CK45(SAE1045, S45C),42CrMo( SAE4140), 20MnV6

Chrome layer surface hardness750-1150HV (Vickers 100g)

Hardness of the CK45 bar after induction hardenedis HRC 56-62.

CORROSION RESISTANCE
Test in natural salt spray according to ASTM B 117-96 hours
Results evaluation according to ISO 4540 RATING 8-9.

MATERIAL: CK45
CHEMICAL COMPOSITION (%

C

Mn

Si

S

P

0.42-0.50

0.50-0.80

0.37

0.035

0.035

MECHANICAL PROPERTIES

UTS Min

Y.S. Min

E % Min

CHARPY impact test

CONDITION

630 N/mm2

340 N/mm2

16



NORMALISED

600 N/mm2

380 N/mm2

17

41J

HARDENED AND TEMPERED



RelatedSpecifications (Base Metal)

Australia

AS 1443 - 1994 1045

Germany

W.Nr 1.0503 C45
W.Nr 1.1191 CK45

Great Britain

BS970 - Part 3 - 1991 080A47
BS970 - Part 1 - 1972 080M46
BS970 - 1955 EN43B

Japan

JIS G 4051 S45C

USA

AISI C1045
ASTM A29/A29M - 91 1045
SAE 1045 UNS G 10450
