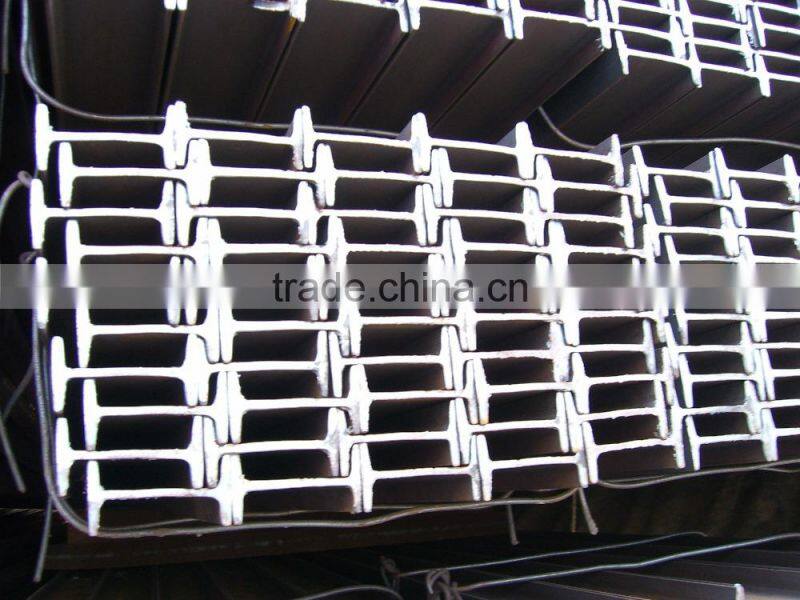

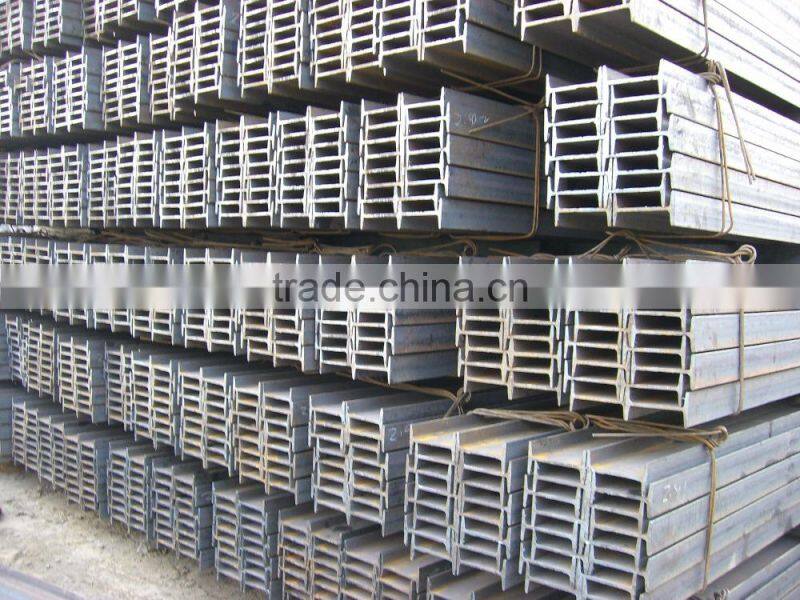

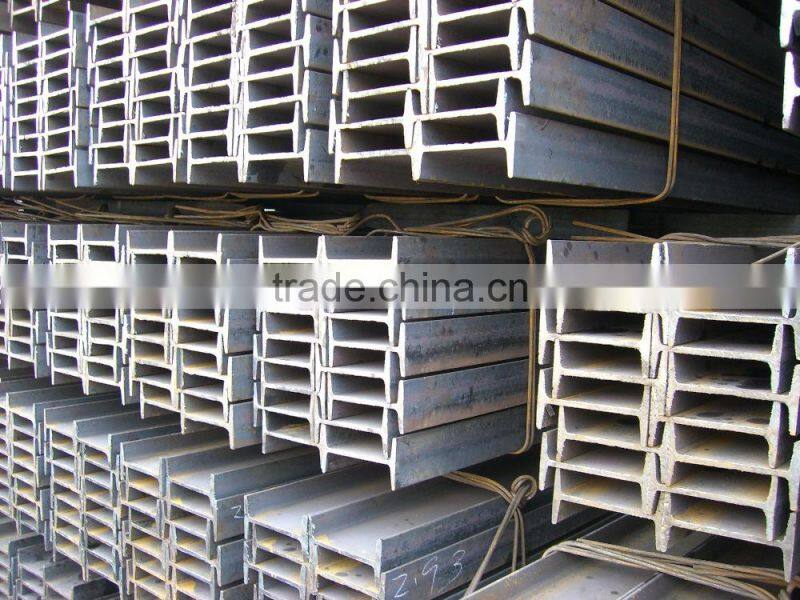

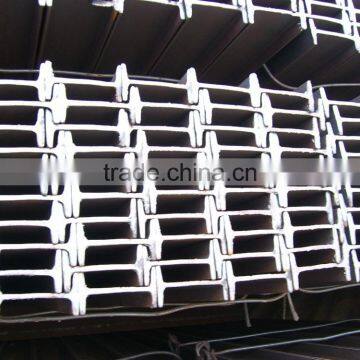

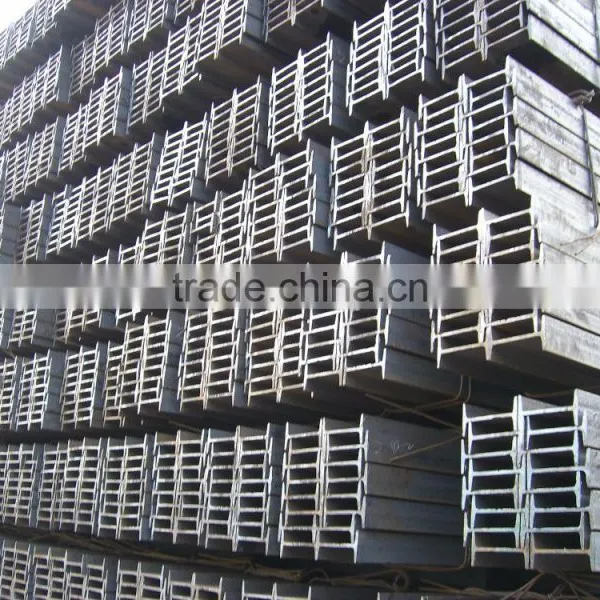

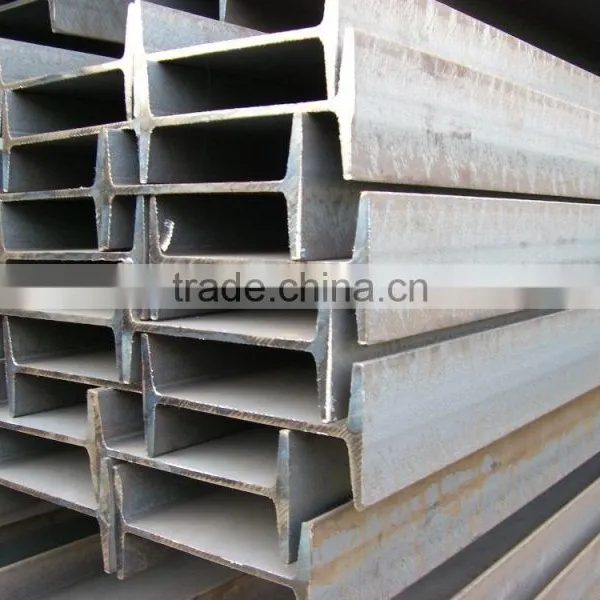

Mild Steel I Beam from China top manufacturer
1)Competitive price
2) Reliable quality
3)Standard:ASME, ASTM ,EN,BS,GB,DIN,JIS
4)SGS,BU TUV
STEEL I BEAM
| Size | H(mm) |
Tolerance (mm) |
B(mm) |
Tolerance (mm) |
Thickness (mm) |
Tolerance (mm) |
Weight (kg/m) |
| 8# | 80 | ±2.0 | 50 | ±2.0 | 4.5 | ±0.5 | 7.520 |
| 10# | 100 | ±2.0 | 68 | ±2.0 | 4.5 | ±0.5 | 11.261 |
| 12# | 120 | ±2.0 | 74 | ±2.0 | 5.0 | ±0.5 | 13.987 |
| 14# | 140 | ±2.0 | 80 | ±2.0 | 5.5 | ±0.5 | 16.890 |
| 16# | 160 | ±2.0 | 88 | ±2.5 | 6.0 | ±0.5 | 20.513 |
| 18# | 180 | ±2.0 | 94 | ±2.5 | 6.5 | ±0.5 | 24.143 |
| 20A | 200 | ±3.0 | 100 | ±3.0 | 7.0 | ±0.7 | 27.929 |
| 20B | 200 | ±3.0 | 102 | ±3.0 | 9.0 | ±0.7 | 31.069 |
| 22A | 220 | ±3.0 | 110 | ±3.0 | 7.5 | ±0.7 | 33.070 |
| 22B | 220 | ±3.0 | 112 | ±3.0 | 9.5 | ±0.7 | 36.524 |
| 25A | 250 | ±3.0 | 116 | ±3.0 | 8.0 | ±0.7 | 38.050 |
| 25B | 250 | ±3.0 | 118 | ±3.0 | 10.0 | ±0.7 | 42.030 |
| 28A | 280 | ±3.0 | 122 | ±3.0 | 8.5 | ±0.7 | 43.492 |
| 28B | 280 | ±3.0 | 124 | ±3.0 | 10.5 | ±0.7 | 47.888 |
| 30A | 300 | ±3.0 | 126 | ±3.0 | 9.0 | ±0.7 | 48.084 |
| 30B | 300 | ±3.0 | 128 | ±3.0 | 11 | ±0.7 | 52.794 |
IPE BEAMS
| Size |
Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPE100 | 100x55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120x64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140x73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160x82 | 5.0 | 7.4 | 15.8 |
| IPE180 | 180x91 | 5.5 | 8.0 | 18.8 |
| IPE200 | 200x100 | 5.6 | 8.5 | 22.4 |
| IPE220 | 220x110 | 5.9 | 9.2 | 36.2 |
| IPE240 | 240x120 | 6.2 | 9.8 | 30.7 |
| IPE270 | 270x135 | 6.6 | 10.2 | 36.1 |
IPE AA BEAMS
| Size |
Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPEAA80 | 80x46 | 3.2 | 4.2 | 4.95 |
| IPEAA100 | 100x55 | 3.6 | 4.5 | 6.72 |
| IPEAA120 | 120x64 | 3.6 | 4.8 | 8.36 |
| IPEAA140 | 140x73 | 3.8 | 5.2 | 10.05 |
| IPEAA160 | 160x82 | 4.0 | 5.6 | 12.31 |
High quality steel products from 1 class mills from tianjin China
Most competitive and best price
Professionalism of the products
Shotest and on time delivery
Complete documents and certificates
Sincere service to meet our clients' requirements
You may ask for free sample by clicking “send” button as below and inquiry us anytime .
Skype: kitty19860513
Moblie/Viber/Whatsapp: +86 13920656642
Email address: gary(at)de-metal(dot)com
