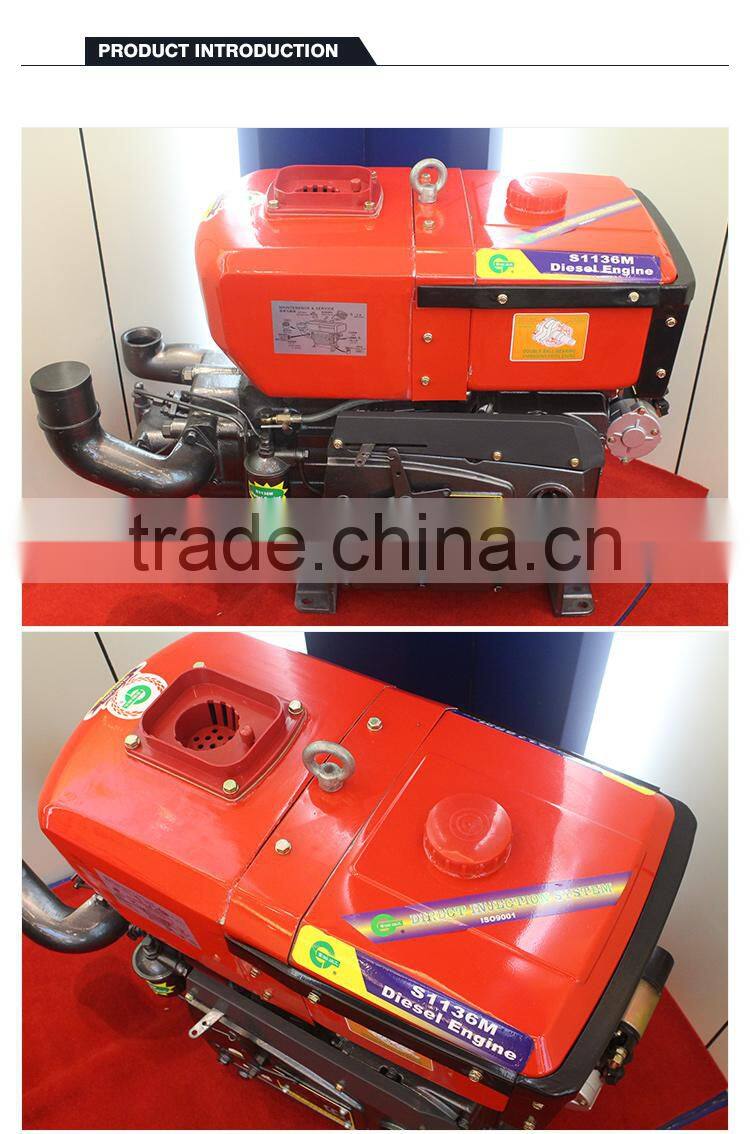

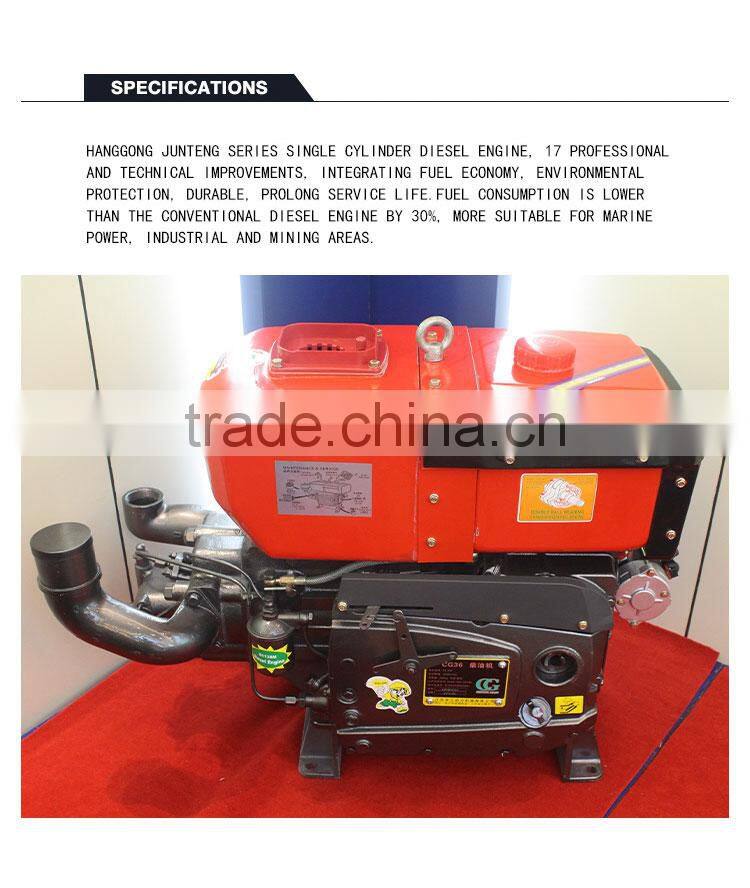

CCHANGGONG Water-cooled S1136 Diesel Engine description:
Application:
water-cooled S11136 Diesel Engine mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).
Feature:
- new design make diesel engine more beautiful;
- low noise
- low vibration
- low consumtion
-
typ CG22 CG25 CG28 S1136(CG36) S1110B ZS1115 ZS1125
(type)singler-cylinder horizontal water-cooled foer-cycle
(combustion model)
direct-injection
direct-injection
direct-injection
direct-injection
direct-injection
direct-injection
direct-injection(mm)
(cylinder diameter)115 115 125 135 110 115 125 (mm)
(piston stroke)115 120 120 130 115 115 120
(displacement)1.194 1.246 1.473 1.86 1.093 1.194 1.473 (HP/r/min)
(nominal speed/speed)23/2200 24.5/2200 28/2200 36/2200 20/2200 23/2200 28/2200 (N.m)
(maximum torque)(r/min)
(The maximum torque speed)≤1760 ≤1760 ≤1760 ≤1760 ≤1760 (g/kw.h)
(Calibration to ignite fuel consumption)≤244.8 ≤244.8 ≤244.8 ≤254.4 ≤244.8 ≤244.8 ≤244.8 (r/min)
(dling)≤800 ≤800 ≤800 ≤800 ≤800
(compression ratio)17±1 17±1 17±1 16 17±1 17±1 17±1
(staring mode)(hand staring electricity staring) (Kg)
(net weight)180 180 195 225 180 180 195 (mm)
(overall dimensions)857×450×699 866×463×699 900×465×745 1052×544×808 858×450×699 857×450×699 900×465×745 -
1PC/ EXPORT CARTON, WOODEN BOX, or as your demand
JIANGSU CHANG GONG POWER MACHINERY CO., LTD is a subsidiary corporation of CHANG GONG INVESTMENT GROUP by producing and selling single cylinder diesel engine professionally. It established in 1998. Through the development in recent years, the company has already become the most competitive enterprise of agricultural machinery trade. At the beginning development, CHANGGONG establishes the aim of base for the mechanization of agriculture of China for a long time, the company insists all the time this aim unwaveringly. No matter production, marketing and service networking, all center on this aim firmly, and to realize mechanization of agriculture as our duty.
