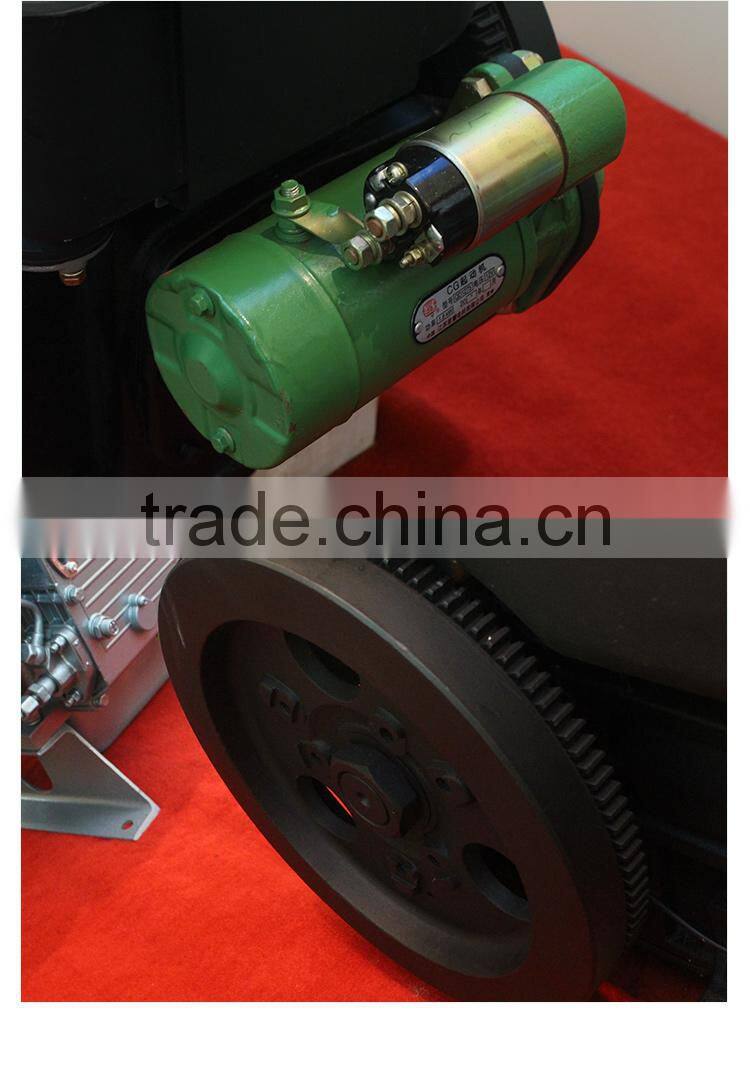

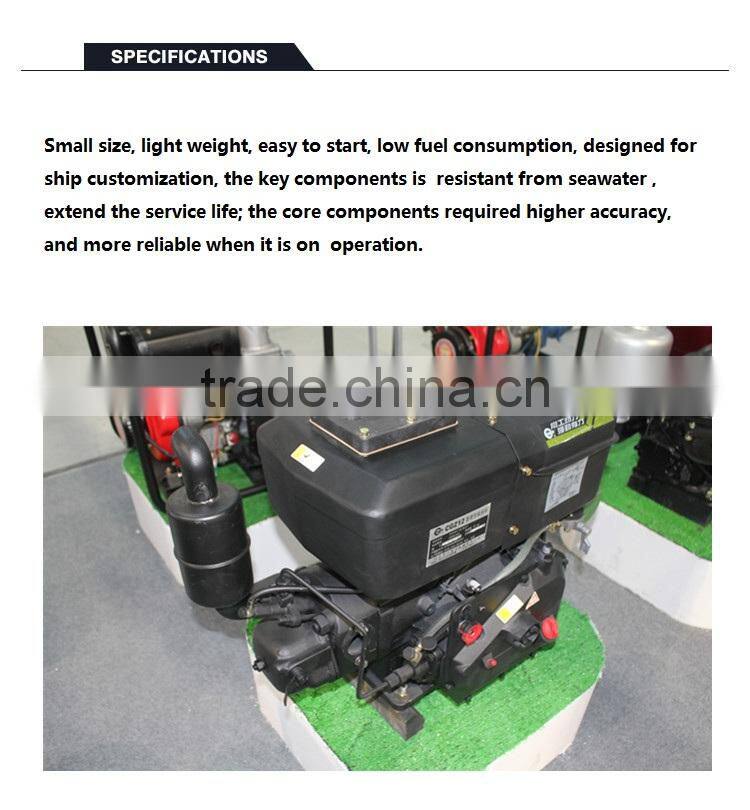

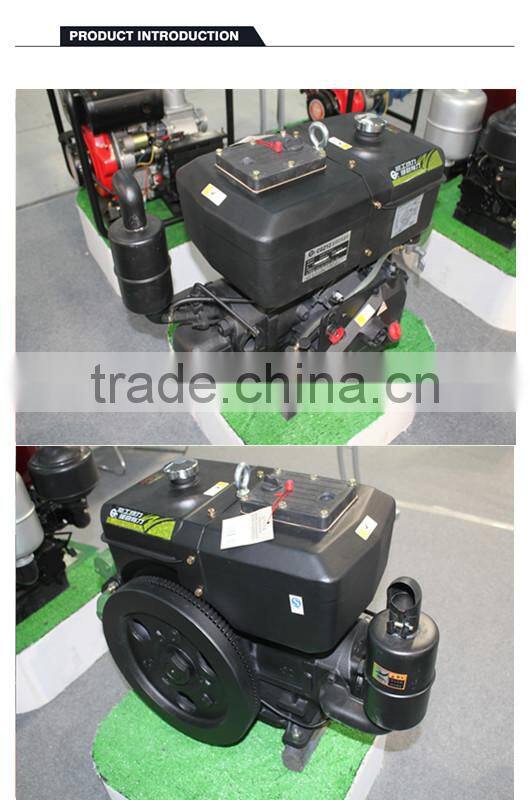

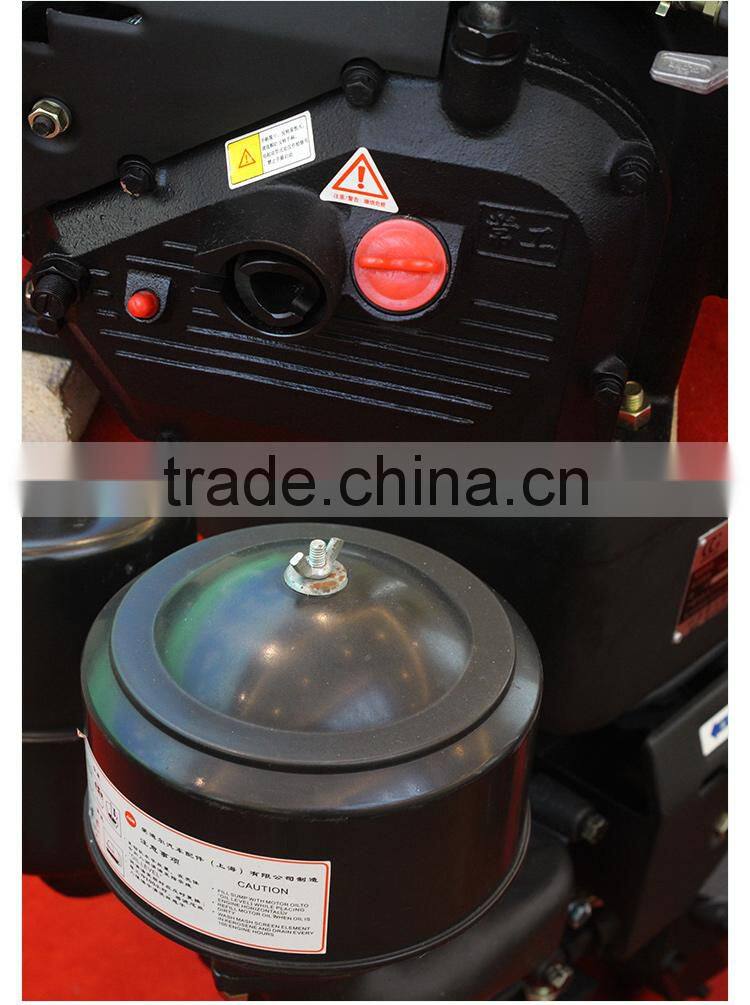

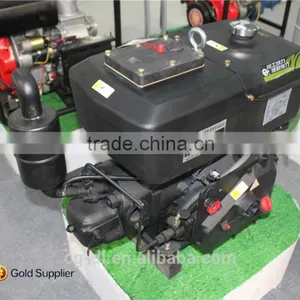

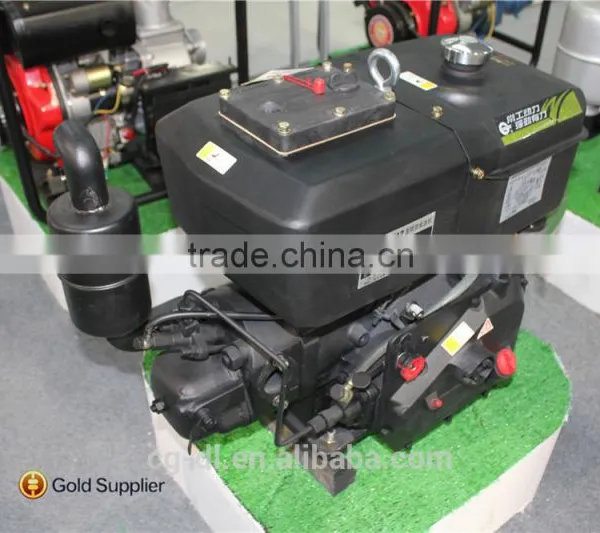

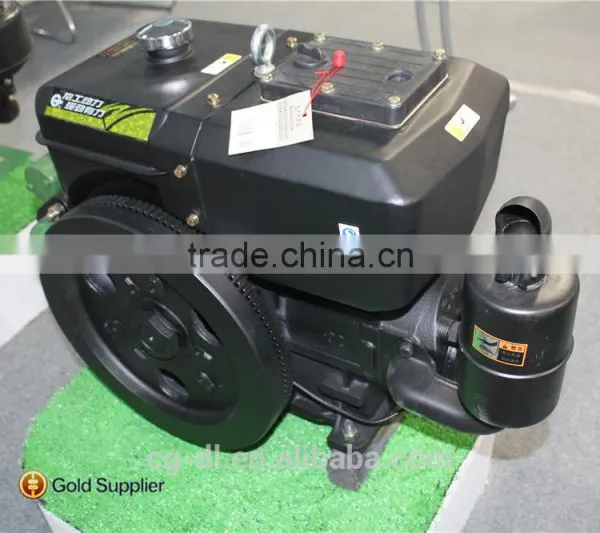

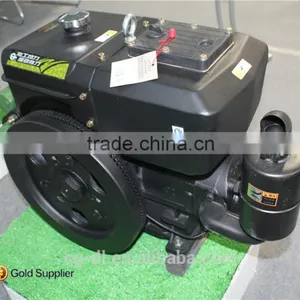

marine diesel engine CGZ12 Special water-cooled single-cylinder diesel engine use for ship

CGZ12 Special water-cooled single-cylinder diesel engine use for ship description:

Application:

CGZ12 water-cooled single-cylinder diesel engine   mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).

Feature:

• new design make diesel engine more beautiful;
• low noise
• low vibration
• low consumtion

• typ	CG22	CG25	CG28	CG36	S1110B	ZS1115	ZS1125
  (type)	singler-cylinder horizontal water-cooled foer-cycle
  (combustion model)	direct-injection	direct-injection	direct-injection	direct-injection	direct-injection	direct-injection	direct-injection
  (mm) (cylinder diameter)	115	115	125	135	110	115	125
  (mm) (piston stroke)	115	120	120	130	115	115	120
  (displacement)	1.194	1.246	1.473	1.86	1.093	1.194	1.473
  (HP/r/min) (nominal speed/speed)	23/2200	24.5/2200	28/2200	36/2200	20/2200	23/2200	28/2200
  (N.m) (maximum torque)
  (r/min) (The maximum torque speed)	≤1760		≤1760		≤1760	≤1760	≤1760
  (g/kw.h) (Calibration to ignite fuel consumption)	≤244.8	≤244.8	≤244.8	≤254.4	≤244.8	≤244.8	≤244.8
  (r/min) (dling)	≤800		≤800		≤800	≤800	≤800
  (compression ratio)	17±1	17±1	17±1	16	17±1	17±1	17±1
  (staring mode)	(hand staring electricity staring)
  (Kg) (net weight)	180	180	195	225	180	180	195
  (mm) (overall dimensions)	857×450×699	866×463×699	900×465×745	1052×544×808	858×450×699	857×450×699	900×465×745



•
•

  1PC/ EXPORT CARTON, WOODEN BOX, or as your demand
