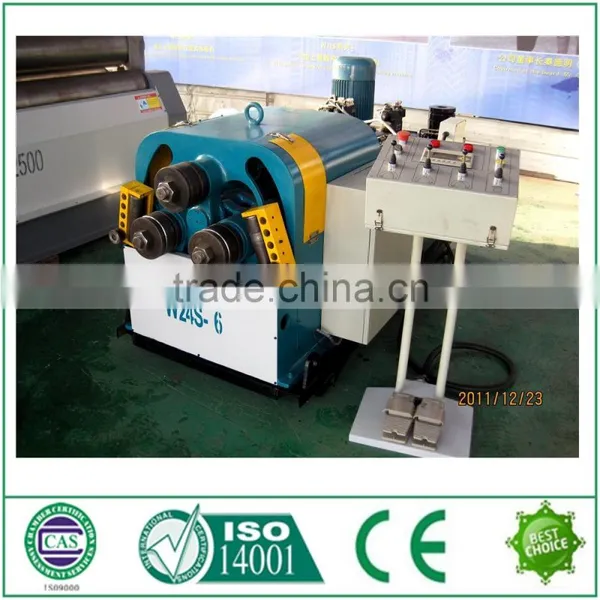

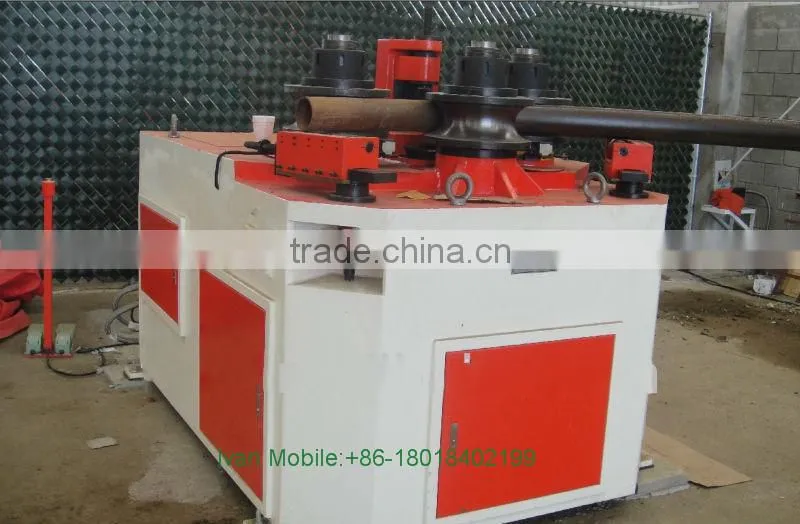

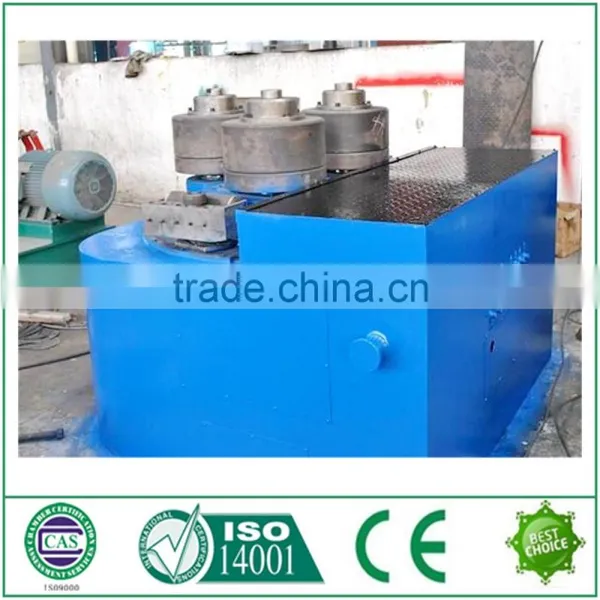

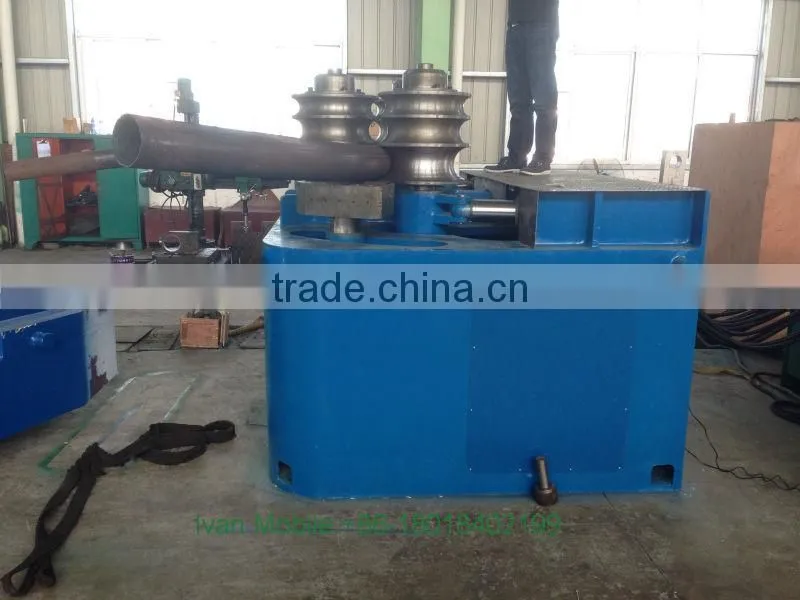

Help Center2015 China Suppliers W24s-100 Profile Bending Machine/pipe Bending Machine
Related Products
-
Sprig Tine, Spare Parts for Class, Ford PartsUS$ 0.5 - 1.5MOQ: 500 Pieces -
Spring Tines Hay Rake Teeth for Agriculture Machine PartsUS$ 0.5 - 2MOQ: 500 Pieces
-
Types of Springs for Good PriceUS$ 0.5 - 2.5MOQ: 500 Pieces
-
Bonell SpringsUS$ 0.5 - 2MOQ: 500 Pieces
-
Heavy Duty Compression SpringsUS$ 0.5 - 2MOQ: 500 Pieces

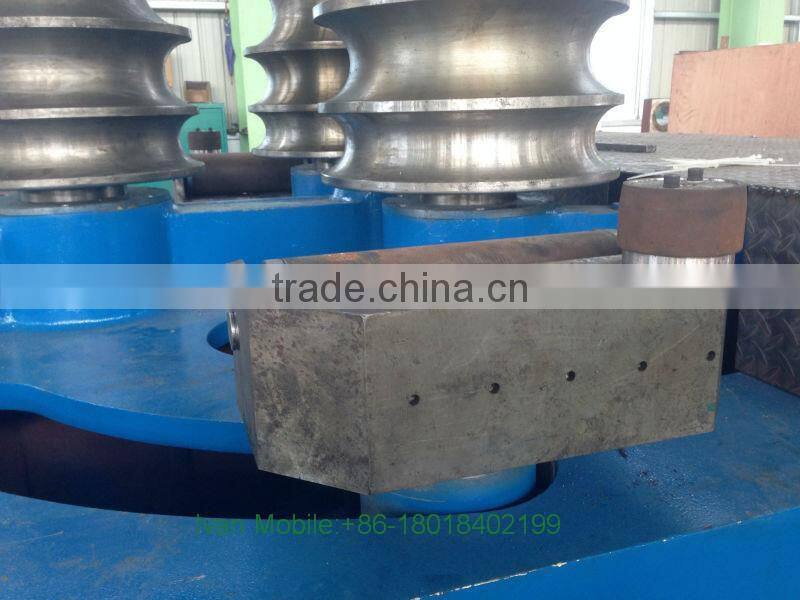

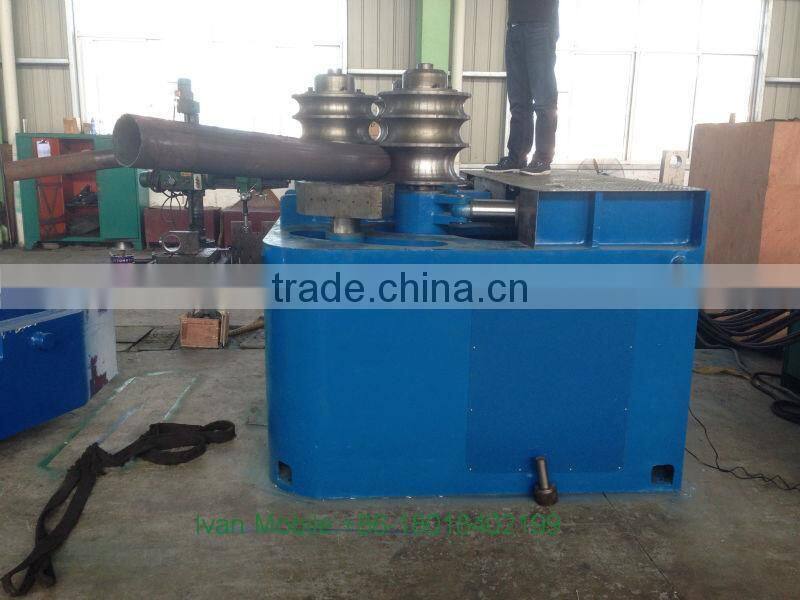

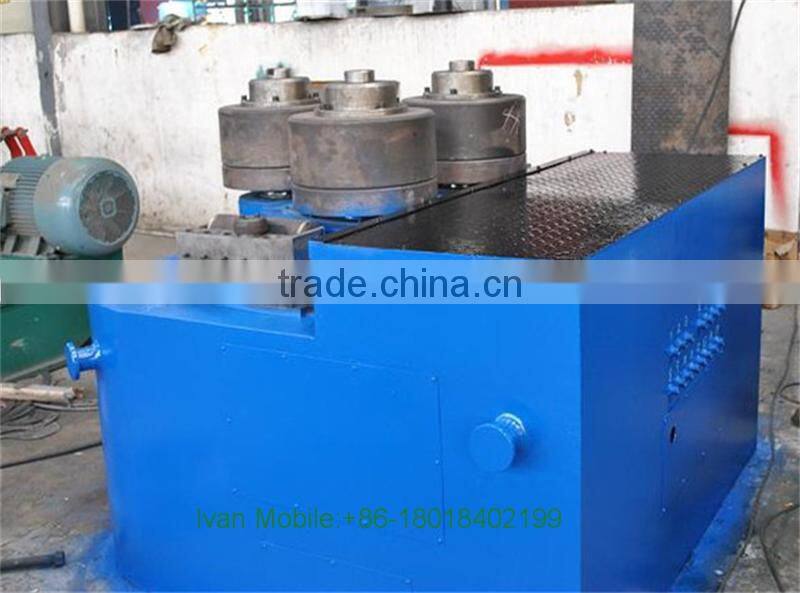

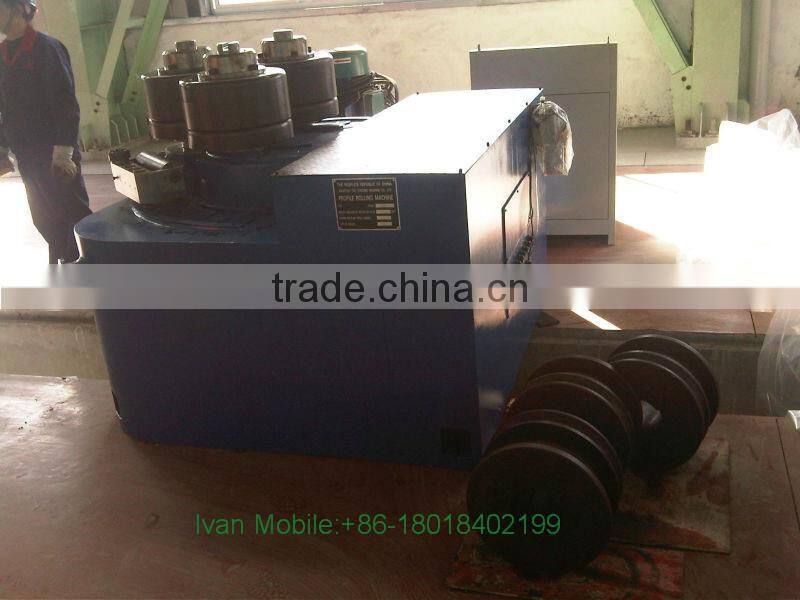

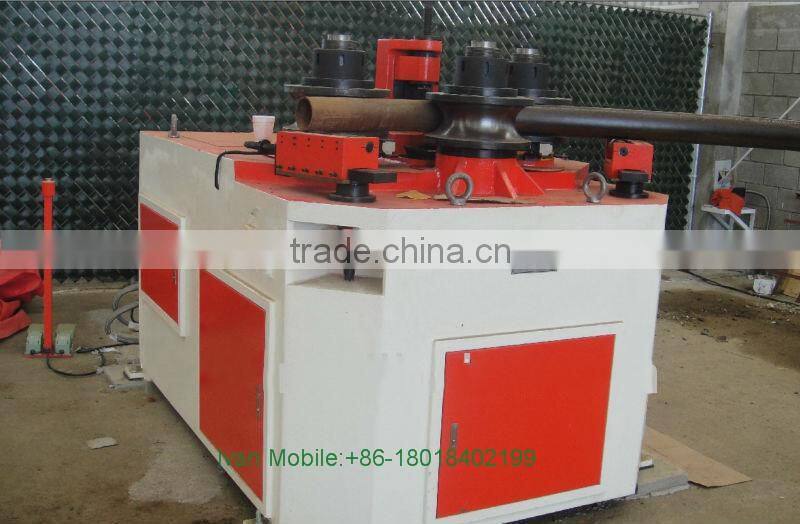

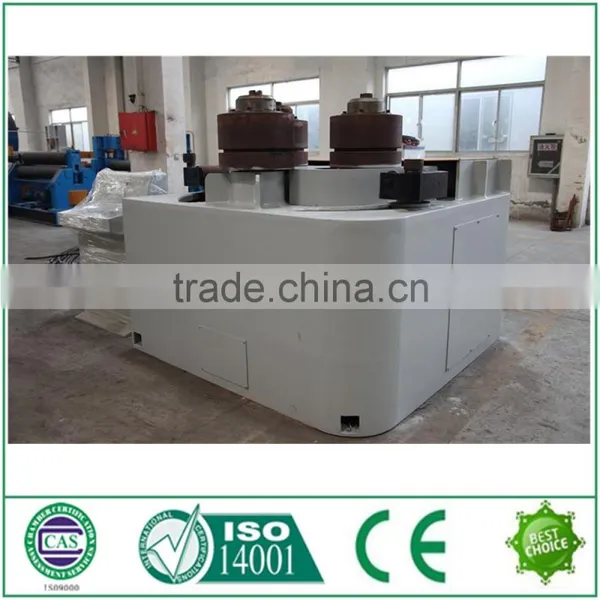

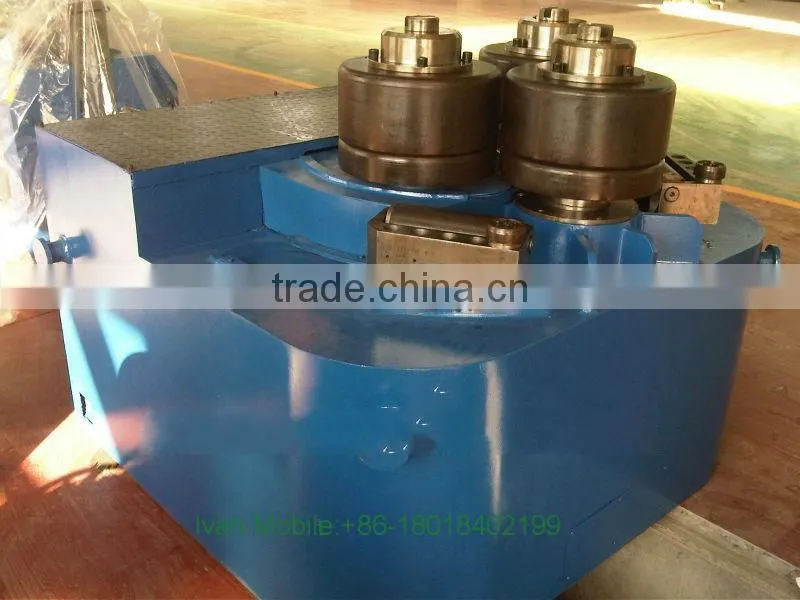

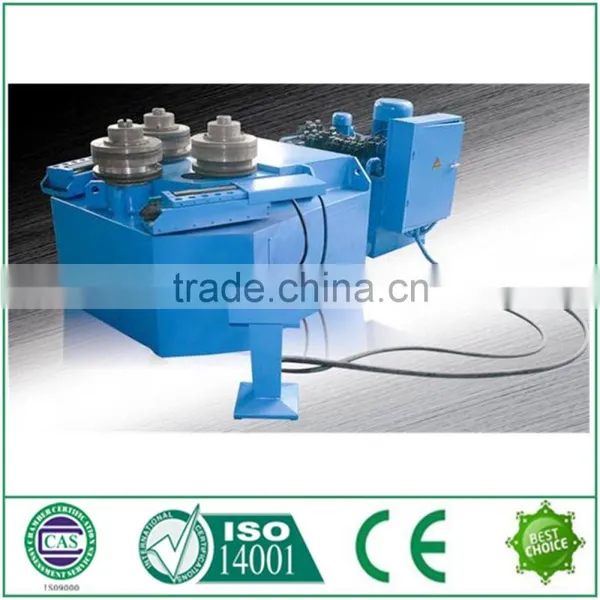

GOODS DESCRIPTION
Character
1.Three driven rollers
2.bending rolls are high tensile alloyed forget steel, heat treated
3.all welded steel frame, heavily proportioned and stress relieved
4.digital read outs for the position of the lower rolls

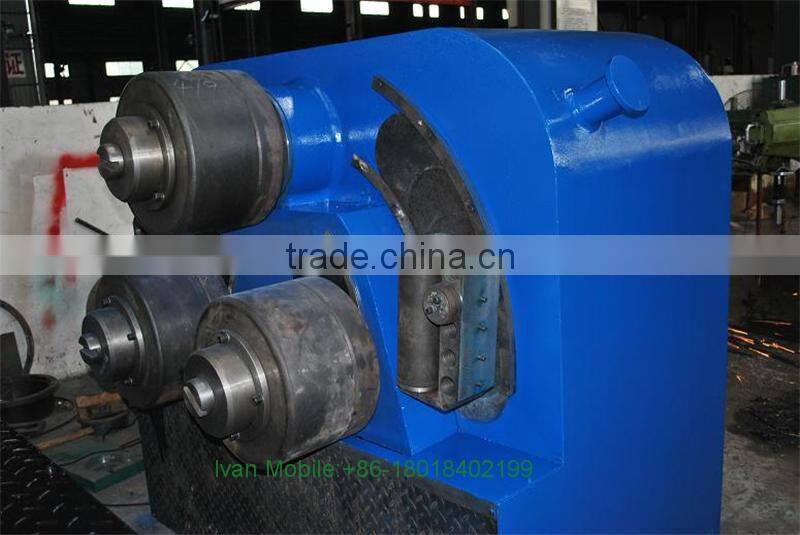

5.The three-roll double-pinch type uses one fixed roll and two moveable rolls. Rolls adjust to bend symmetrically or asymmetrically and pre-bend both ends of the work piece in a single pass. Bending distance-the distance between the tangent contact points of the rolls- increases with diameter rolled, broadening the capacity of the machine.
6.guide rolls are hydraulic driven and adjustable in up/down
7.shafts in alloyed steel, heat treated and grinded, mounted on long life grease lubricated self-alignment spherical roller bearings
8.with emergency stop buttons
9. All motors have corresponding breaker to protect for short circuit caused by over electricity
10.All motors have corresponding heat relay as protection against overload
TECHNICAL PARAMETERS
| W24S PROFILE BENDING MACHINE | |||||||
| Material yielding limited | σS≤245MPa | ||||||
| Model | W24S-6 | W24S-16 | W24S-45 | W24S-75 | W24S-100 | W24S-140 | |
| Max. Section Modulus | 6 cm3 | 16 cm3 | 45 cm3 | 75 cm3 | 100 cm3 | 140 cm3 | |
| Angle leg-out | Max. cross section (mm) | 50x50x5 | 80x80x6 | 100x100x10 | 120x120x10 | 125x125x14 | 140x140x16 |
Min. bending diameter (mm) | 500 | 1500 | 1600 | 2000 | 2200 | 2400 | |
| Angle leg-in | Max. cross section (mm) | 50x50x5 | 70x70x6 | 90x90x10 | 110x110x10 | 125x125x14 | 140x140x16 |
Min. bending diameter (mm) | 500 | 1500 | 1800 | 2400 | 2500 | 2600 | |
| Flat-along face | Max. cross section (mm) | 50x10 | 75x16 | 80x25 | 110x40 | 120x40 | 120x40 |
Min. bending diameter (mm) | 500 | 800 | 1000 | 1500 | 1600 | 1800 | |
| Flat-along edge | Max. cross section (mm) | 100x15 | 150x25 | 250x30 | 220x40 | 250x40 | 280x50 |
Min. bending diameter (mm) | 1200 | 1200 | 1400 | 1500 | 1500 | 1800 | |
| U-beam leg-out | U-beam model | 8 | 12 | 20 | 22 | 25 | 30 |
Min. bending diameter (mm) | 1000 | 1700 | 2000 | 2000 | 2500 | 2600 | |
| U-beam leg-in | U-beam model | 8 | 12 | 20 | 25 | 25 | 30 |
Min. bending diameter (mm) | 1200 | 1500 | 2500 | 2500 | 2800 | 3000 | |
| Solid bar | Diameter (mm) | 25 | 50 | Ø7 0 | 80 | 90 | 100 |
Min. bending diameter (mm) | 600 | 800 | 1000 | 1200 | 1500 | 2000 | |
| Pipe | Diameter x pipe thickness (mm) | Ø40x4 | Ø76x4 | Ø 80x6 | Ø89x10 | Ø90x10 | Ø125x10 |
Min. bending diameter (mm) | 600 | 800 | 1000 | 1400 | 1800 | 2000 | |
| T-beam | Width(height) x thickness | 35x5 | 70x6 | 90x10 | 100x10 | 120x12 | 140x12 |
Min. bending diameter (mm) | 600 | 1500 | 1800 | 2000 | 2400 | 2500 | |
| I-beam | I-beam model | 6 | 8 | 10 | 16 | 16 | 20 |
Min. bending diameter (mm) | 1200 | 1800 | 2000 | 2200 | 2200 | 2600 | |
| Square | Width x thickness | 45x3 | 60x4 | 80x6 | 90x8 | 100x10 | 125x10 |
Min. bending diameter (mm) | 750 | 900 | 1200 | 1600 | 200 | 2500 | |
| Rectangular | Length x width x thickness | 20x30x2 | 50x30x4 | 60x40x4 | 100x50x5 | 100x60x5 | 140x60x6 |
Min. bending diameter (mm) | 1000 | 1200 | 1500 | 1800 | 2000 | 2500 | |
| Rolling Speed | 5m/min | ||||||
| Hydraulic pressure | 20MPa | ||||||
| Main motor power | 2.2KW | 7.5KW | 7.5KW | 11KW | 11KW | 15KW | |
