Home Solar Systems,solar Water Heater,price per Watt Solar Panels

Home Solar Systems,solar Water Heater,price per Watt Solar Panels photo-1
US$ 200 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Type Evacuated Tube
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-Plug
Installation Freestanding
Housing Material Other
Certification Other, RoHS
Capacity 500
Place of Origin Shandong, China
Brand Name NANEN
Model Number NE58/1.8

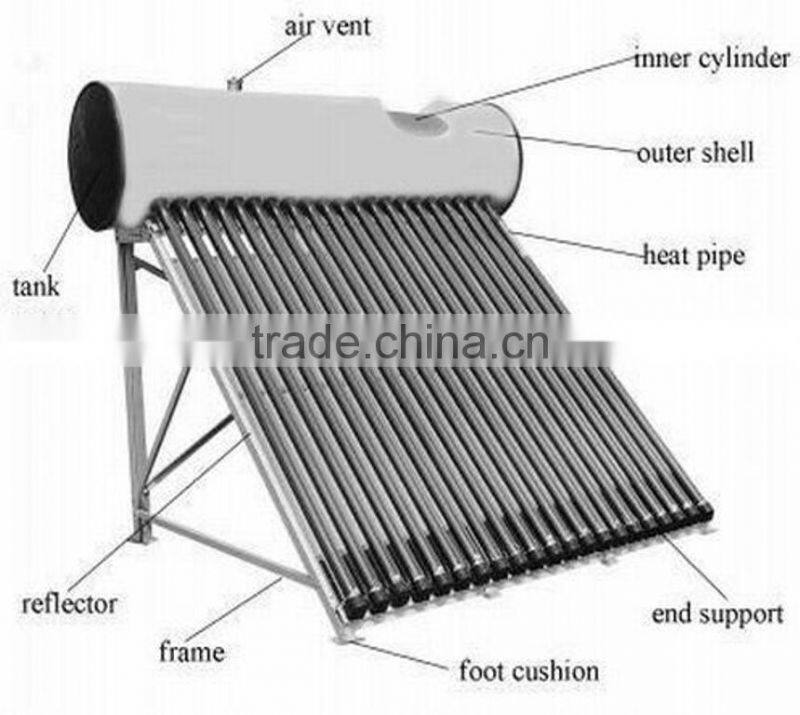

This model works with high pressure, so it can be connected with city water directly. With the heat pipe in the vacuum tube, therefore no water in the tube, each tube can work alone, so the solar collector can work even one tube is broken.

  1. Highly efficient absorber of high performance with daily average efficiency over 50%
  2. Start up quickly, the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
  3. Withstand pressure of 6 bar, more comfortable to use
  4. Simple structure, easy to assembly and install
  5. Can be used all year even in the cold climate area
  6. Long service life, can be used over 15 years







ModelAll glass solar vacuum tubeWater tank
QtyDiameterLengthCapacityArea
NE58/1.8-1616pcs58mm1800mm160 liter1.26(L)*1.65(W)*1.65(H)
NE58/1.8-1818pcs58mm1800mm180 liter1.5(L)*1.65(W)*1.65(H)
NE58/1.8-2020pcs58mm1800mm200 liter1.56(L)*1.65(W)*1.65(H)
NE58/1.8-2424pcs58mm1800mm240 liter1.86(L)*1.65(W)*1.65(H)
NE58/1.8-3030pcs58mm1800mm300 liter2.31(L)*1.65(W)*1.65(H)
NE58/1.8-3636pcs58mm1800mm360 liter2.76(L)*1.65(W)*1.65(H)
NE58/1.8-4242pcs58mm1800mm420 liter3.21(L)*1.65(W)*1.65(H)
NE58/1.8-4848pcs58mm1800mm480 liter3.66(L)*1.65(W)*1.65(H)
NE58/1.8-5050pcs58mm1800mm500 liter3.81(L)*1.65(W)*1.65(H)
NE58/1.8-5555pcs58mm1800mm550 liter4.18(L)*1.65(W)*1.65(H)
