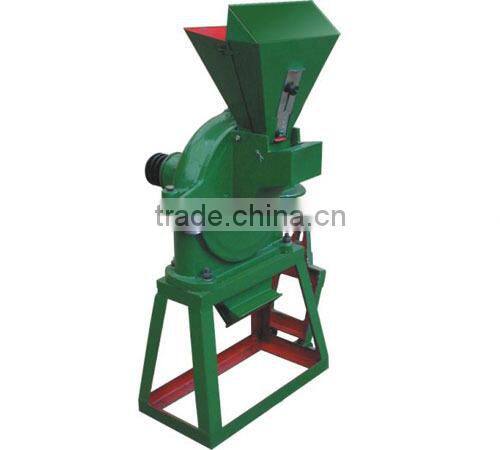

Our FFC series disk mill has multiple functions. At present, four types are available, ie. Models FFC-45, FFC-37, FFC-23 and FFC-15. It is designed compactly with a wonderful appearance: small in size and light in weight, reliable in operation and easy in maintenance. It has a large range of service and proves to be of high quality in crushing.
With this machine, it is most desirable to crush various coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake. All of these can be crushed into powder by one stroke without any residue.
This machine is also popular in chemical industry, paper-making and medical industry can be used to crush various kinds of chemical raw materials, exercise beating in paper making and process Chinese herbal medicine. And can also be used to crush fresh fruit, fresh sweet potato and soaked soybeans, which contain a great deal of moisture content.
| MODEL | Unit | FFC-15 | FFC-23 | FFC-37 | FFC-45 |
| Rotational speed of main shaft | r.p.m | 9000 | 5800 | 3600 | 3000 |
| Outer diameter of the rotator (including oblate gear) | mm | 150 | 230 | 370 | 450 |
| Number of oblate gears of the rotator | p.c | 3 | 4 | 4 | 5 |
| Number of knuckle gears of the rotator | p.c | 3 | 8 | 8 | 12 |
| Circles of square gears of the gear wheel | circles | 1 | 2 | 2 | 2 |
| Pitch between the oblate gear and screen | mm | 9 | 19 | 16.5 | 16.5 |
| Capacity | kg/h | 55 | 180 | 450 | 650 |
| Motor:power | kw | 1.1 | 3 | 7.5 | 11 |
| Motor:rotational speed | r/min | 2840 | 2840 | 1450 | 1450 |
| Dimension(length*width*height) | mm | 565*305*610 | 800*500*1000 | 1050*680*1325 | 1150*755*1425 |
| Weight(excluding the motor) | kg | 18 | 65 | 158 | 224 |
