TPU Pneumatic 100% Air Tube ;Air Hose(4*2.5mm*200m),Pneumatic Tools
US$ 7.5 - 10
MOQ: 1000 Rolls
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
wanli
Model Number:
TU0855-100M
Payment & Shipping
Payment Methods:
Port of Shipment:
Taizhou Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TPU Air Pneumatic Hose 100% TPU; Air Tube(8*6mm),Pneumatic ToolsUS$ 8.6 - 10MOQ: 3000 Rolls -
Pneumatic 100% PU Air Tube (5*8mm*100m),Pneumatic FittingUS$ 3.8 - 45MOQ: 3000 Meters
-
Transparent Pneumatic 100% PU Air Tube (5.5*8mm*100m),Pneumatic FittingUS$ 3.8 - 45MOQ: 3000 Meters
-
TU1065-100M Black Pneumatic 100% PU Air Tube(6.5*10mm),Pneumatic FittingUS$ 3.8 - 45MOQ: 3000 Meters
-
TU1280-100M Orange Pneumatic 100% PU Air Tube(8*12mm),Pneumatic FittingUS$ 3.8 - 45MOQ: 3000 Meters
Place of Origin
Zhejiang, China
Brand Name
wanli
Model Number
TU0855-100M
Material
Other, PU
Specification
4*2.5mm*200m
Length
200m
Thickness
0.75mm
Standard
ROHS, CE

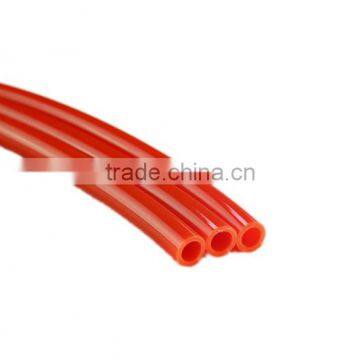

100% TPU Pneeumatic Air Hose, PU Tube
Pneumatic TPU Tube Size :
note:the following size is just for you refer , unstandard size is custom-made .
TPU Characteristic:
1. Having excellent flexibility, the bevelling radius is small.2. Good anti-knocking property and the nature is light.
3. The operating temperature and the working pressure scope is wide.
4. Having the excellent chemical properties,the pressu loss is minimum.
5. Degree of hardness is constant,the sercice life is long.
6. Non-toxic,tasteless.
7. Custom-made color is doable,easy pipeline recognition.
8. Conform to the ROHS/REACH/CE environmental protection requirement.
Product Usage:
Industry robot,pneumatic tool,assemblt plant air pressure tool.
The duct with pressure.
Transport water and other liquid.
Being used as the vacuum sucker.
Metal and electronic products protection coat.
Ornament(for example handle and so on).
Specifications:
Material:Polyurethane
Fluid:air,water, oil
Operating Temperature: -40ºC+80ºC (For Non-Chemical GAS Space)
Tube O.D.:1mm to 19mm
Tube O.D:2.5mm to 21mm
Diameter Tolerances ±0.1mm~±0.15mm
Shore: hardness 65A---98A
Tensile Strength: 400kgf/cm² (5690 PSI)
Elongation at Break 490-590%
Abrasion 35mg
Tearing Strengh 1565 PSI(110kg/cm2)
Safety Factor--3:1
PU MATERIAL PROPERTY:
Manufactured 100% higher pure polyurethane raw materials, make products to guarantee with PU material characteristic of flexibility, non-toxic, harmless to the human body. Having excellent flexibility, high pressure resistance, resistance to wear and tear, resistant to twists and turns, a high elastic recovery memory effect, being 100% incineration ash, being approved by the environmental protection product.

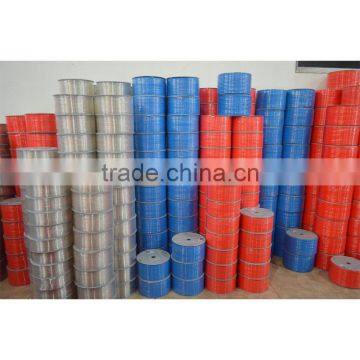

INNER PACKING:

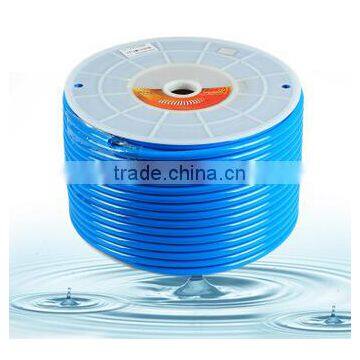

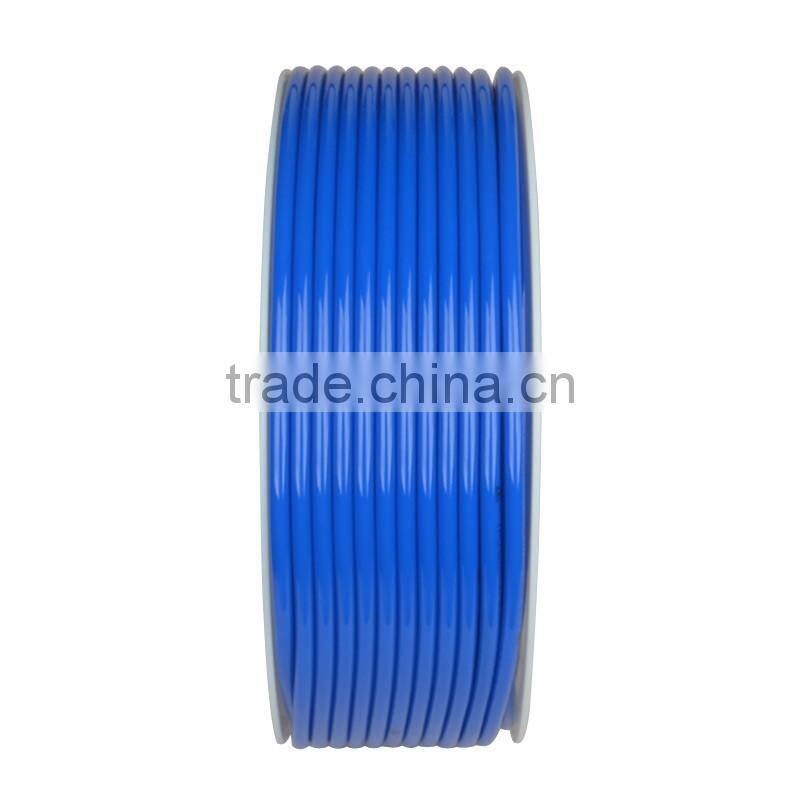

One type packing:wood reel, can roll
Another type packing:plastic reel,gift box.
OUTER PACKING:carton
LENGTH:100M/ROLL,200M/ROLL,300M/ROLL,500M/ROLL,1000M/ROLL.
