Wide MPPT Range Solar Submersible Pump Inverter AC Three Phase Solar Inverter for Irrigation
- 2000 Set / Sets per Month
- Shanghai
- T/T D/P D/A Credit Card
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Anhui, China | Brand Name: | Jntech,OEM | Model Number: | JNP3K7H |
Output Power: | Other, >1000KW | Output Type: | Triple | Size: | 265x430x167(mm) |
Weight: | 11.1kg | Input Voltage: | 880Vdc | Output Voltage: | 380~460Vac |
Type: | DC/AC Inverters | Output Frequency: | 0~50Hz/60Hz | Output Current: | 9A |
Product Description

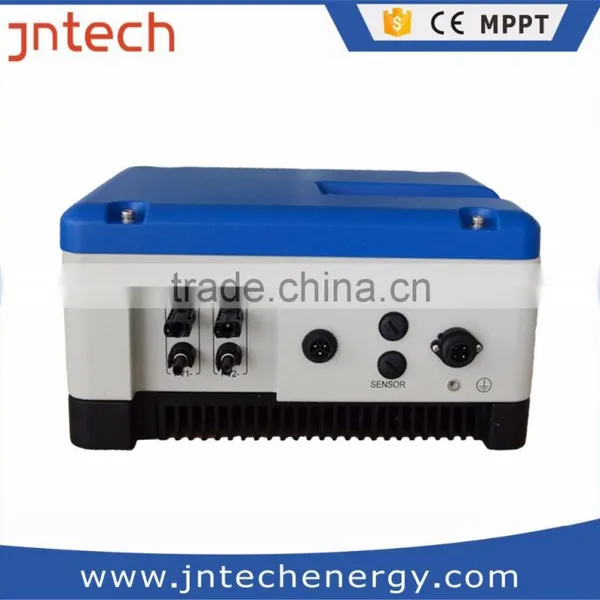

Wide MPPT Range Solar Submersible Pump Inverter AC Three Phase Solar Inverter for Irrigation
1.Features of Wide MPPT Range Solar Submersible Pump Inverter AC Three Phase Solar Inverter for Irrigation:
1. Drive power-matched three-phase AC pump
2. Adopt advanced IGBT power module
3. High conversion efficiency,low temperature rise,low noise,long lifespan
4. Advanced MPPT technology,efficiency>99%
5. Fully automatic operation,it can store operation data for 10 years
6. Perfect system protection,high reliability
7. New design of anodized alumium case
8. LCD display
9. Interface:RS485/GPRS
10.Modular design,easy to install,operate,maintain
2.Technical Specifications:
Model | JNP2K2H | JNP3KH | JNP3K7H | JNP4KH | JNP5K5H | JNP7K5H |
d.c. Input | ||||||
d.c. Max .Input Voltage | 880Vdc | |||||
Recommended MPPT Voltage | 460~850Vdc | |||||
d.c. Max. Input Current | 5A | 6.9A | 9A | 9A | 12A | 16.3A |
Max. MPPT Efficiency | 99% | |||||
Number of String | 2 | 3 | ||||
a.c. Output | ||||||
Max. Motor Output Power | 2.2kW | 3.0kW | 3.7kW | 4.0kW | 5.5kW | 7.5kW |
Rated Output Voltage | 380~460Vac, 3-phase | |||||
Output Frequency Range | 0~50/60Hz | |||||
Rated Output Current | 6A | 7A | 9A | 10A | 13A | 18A |
Mechanical Data | ||||||
Dimensions(W/H/D) | 265x430x167(mm) | |||||
Weight | 11.1kg | |||||
Max. Efficiency | 96% | 97% | 98% | |||
Protection Class | I | |||||
Protection Level | IP65 | |||||
Operating Temperature Range | -25℃ to +60℃,above 60℃ need derate operating | |||||
Cooling Method | Natural cooling | |||||
Display | LCD | |||||
Communication Interface | RS485/GPRS | |||||
Altitude | 3000m; above 3000m need derate operating | |||||
Noise Emission | <50dB | |||||
Compliance | EN 50178; IEC/EN 62109-1; IEC 61800 |

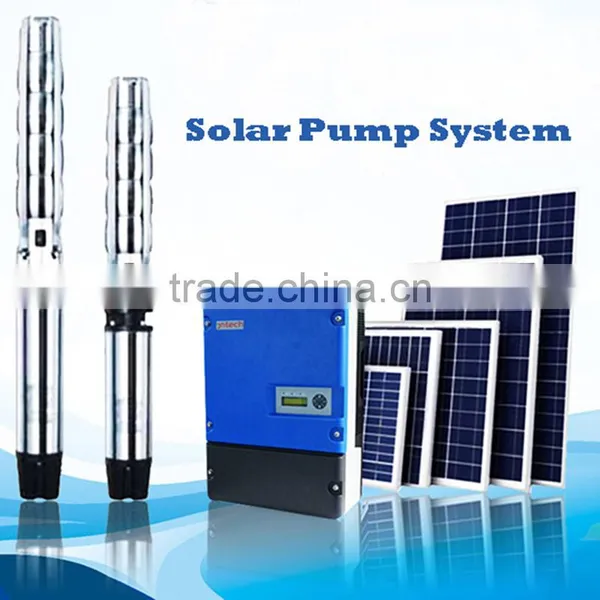

3.Simple Introduction of Solar Pumping System:
Our solar pumping system consist of four parts:solar panels,solar pumping inverter,three-phase AC pump and water storage device.The solar pumping inverter converts DC power produced by solar panels to AC power which drives AC pump to pump water from borehole,river,lake etc. to the storage device.
The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels.It will make the system to maximize efficiency to get the water as much as possible.
The solar pumping system fulfills concept of low carbon,energy conservation,environmental protection to improve the living standard in water-deficient area.
4.Features of Solar Pumping System:
1). Reliable solution for agricultural irrigation,daily water,desert control in non-electricity and water deficient area.
2). Wild application with all kinds of PV modules amd 3-phase AC pumps.
3). IP65 for outdoors application.
4). Max. operation temperature 60
5). GPRS remote monitoring for real time operation status and control on/off
6). Excellent performance during cloudy weather with 5% more water output compared to competitors
7). ROI is only less than 2 years compared to diesel generator
8). Full automatic unattended operation with perfect protection functions for long lifespan 25 years
9). 3 years warranty for complete system, 10 years for PV modules
5.Application of Solar Pumping System:
6.Production Processing:
7.Certifications:
Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,
Jntech has come a long way in the past 10years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200(50% of R&D and technical engineers)
Total EPC projects: 1000MW(grounded/ rooftop)
Residential off-grid system: 40,000 units(over 20MW)
Solar pumping system: over 2200 projects in 30 countries
Welcome to visit our company!
