20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65

20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-1
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-2
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-3
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-4
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-5
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 thumbnail-6
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-1
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-2
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-3
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-4
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-5
20HP (15kw) Solar Pumping Inverter/Controller, 3 Years' Warranty, CE, IP65 photo-6
US$ 1,135 - 1,610 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
JNTECH
Model Number:
JNP15KH
Contact Supplier Request Quote Chat Now
Hefei Jntech New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name JNTECH
Model Number JNP15KH
Output Power 1 - 200KW
Output Type Triple
Size 515*350*303mm
Weight 15KGS
Input Voltage 460V~850V
Output Voltage 380V~460Vac
Type DC/AC Inverters
Output Frequency 0~50Hz/60Hz
Output Current 29A

1. Simple Introduction Of  20HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP65

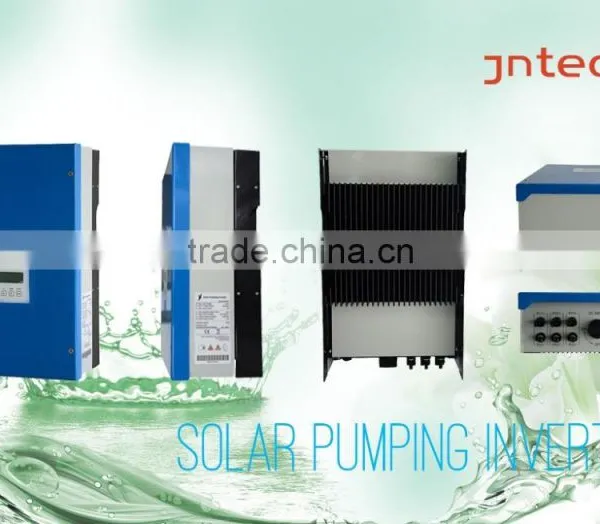

JNTECH 20HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP65  converts DC power produced by PV module into AC power required by the 2HP pump motor. A microprocessor inside inverter machine continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

20HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP65

2. Product features:

  • Maximum Power Point Tracking (MPPT) for Optimum Solar Performance.
  • Automatic start and shut off according to solar intensity.
  • Soft start controlling in rush current, to avoid motor burning.
  • IP65 design for outdoor application.
  • System MPPT range for 220V-240 is 150-400V, 380-460V is 460-850V.
  • No need derate the power capacity for pump matching. The matching power with pump is 1:1.
  • 3 years warranty for solar pump inverter.
  • Complete system protection function and long lifespan.
  •  Visual LCD based indications, DC switch inside.
  • Support Utility grid or generator work as pass by or complementary, working time 24hours per day. (Optional)



 3. 15kw solar pump inverter parameters:

 Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 33.3A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 15KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 29A
Dimension(W/H/D) 265x430x167mm
weight 15.1kg
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method Natural cooling
Display  LCD
Communication interface RS485
Altitude  3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

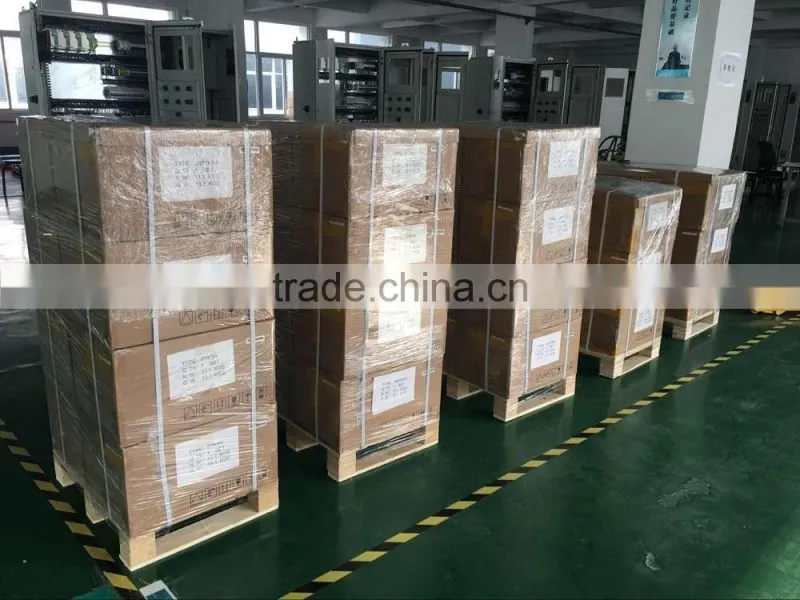

4, Packing: Ply-wood Case

20HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP65

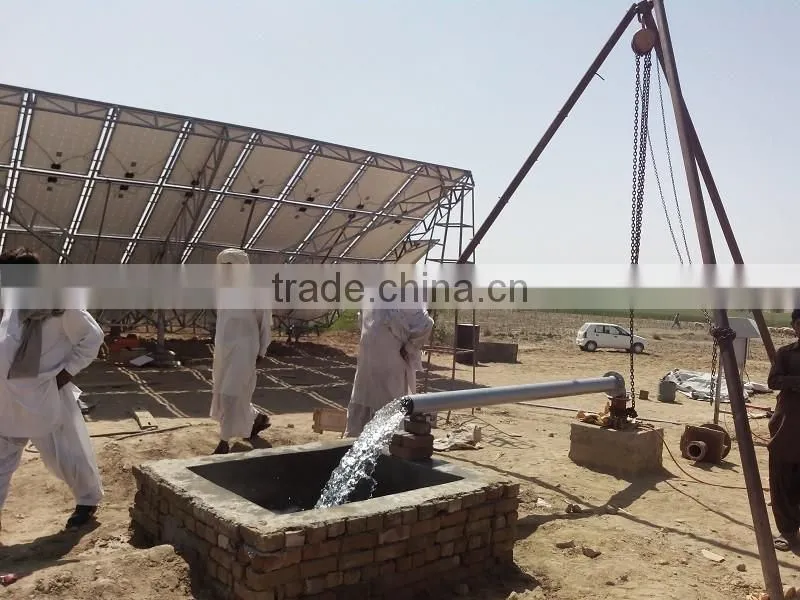

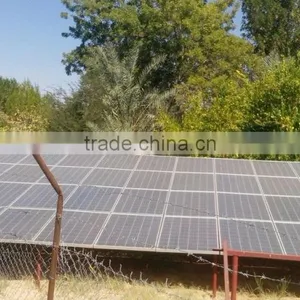

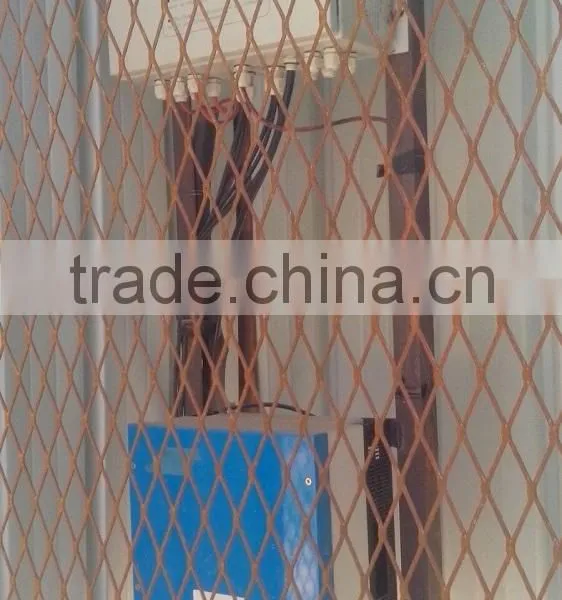

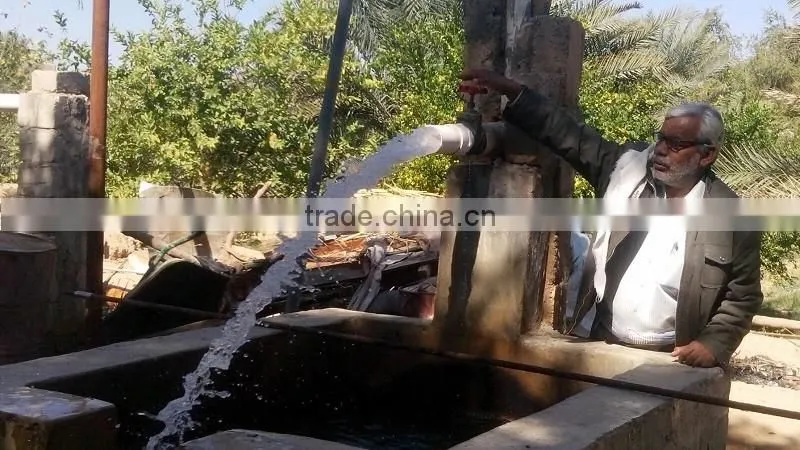

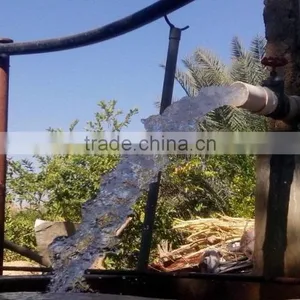

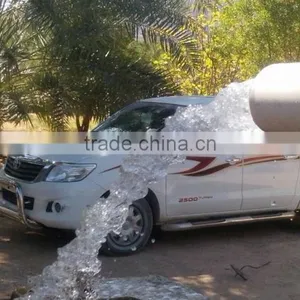

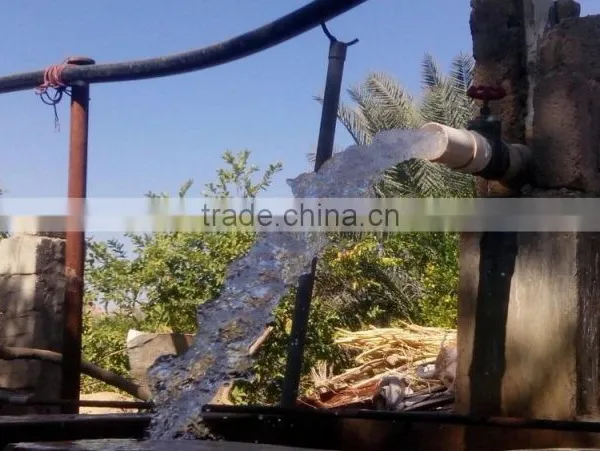

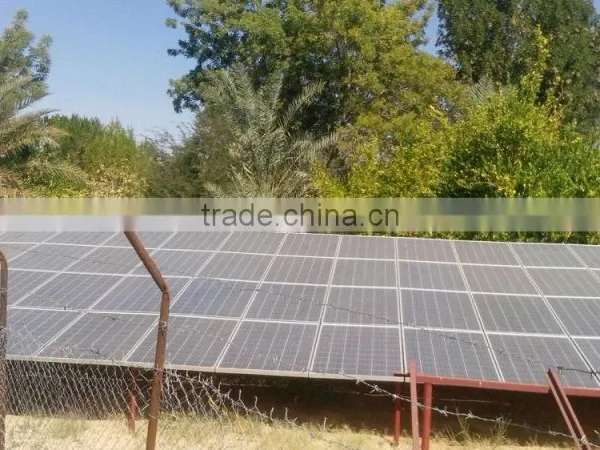

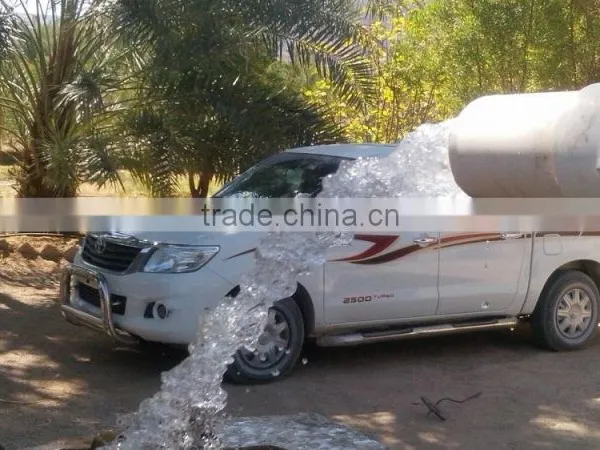

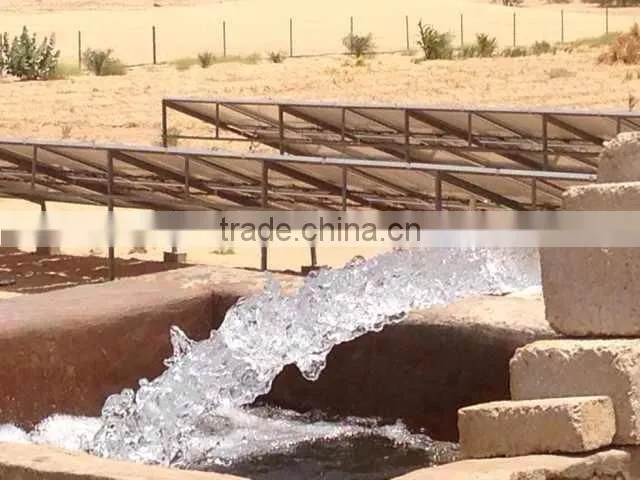

5. Projects' reference:

20HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP6520HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP6520HP (15kw) Solar Pumping Inverter/Controller, 3 years' warranty, CE, IP65
