Jntech new solar green energy system with 3.7kW solar pumping inverter for solar water pump system in USA

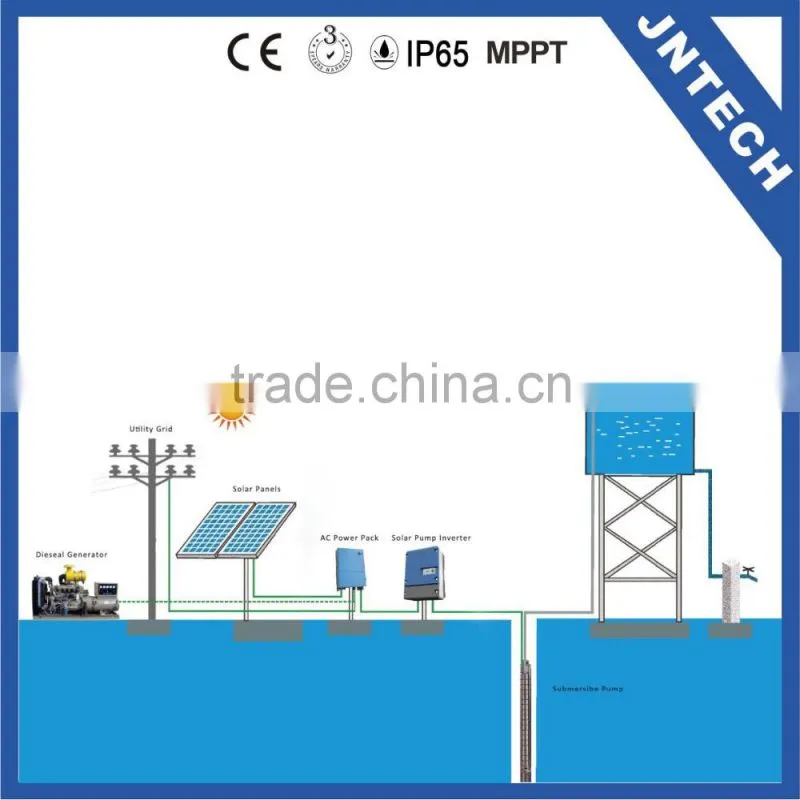

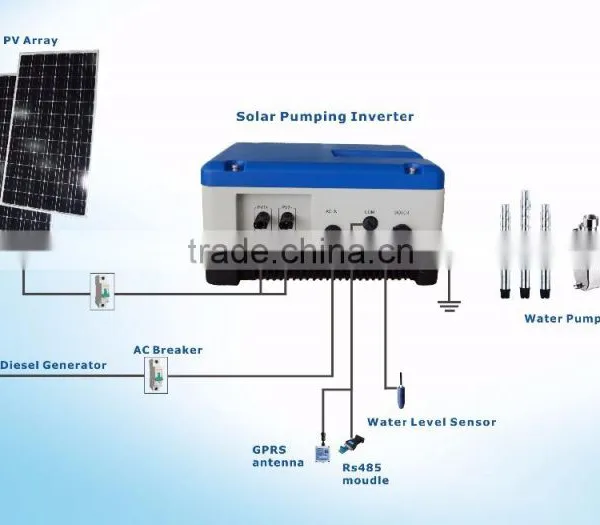

1.Simple introduction of solar pumping system:
The solar pumping system consist of four parts:solar panels,solar pumping inverter,three-phase AC pump and water storage device.
The solar pumping inverter converts DC power produced by solar panels to AC power which drive AC pump to pump water from borehole, river, lake etc. to the storage device.
Solar pumping systems can be applied in the area with sunshine and areas lack of electricity, such as: Daily water using;Agricultural irrigation;Forestry irrigation;Pasture animal husbandry;Rural town and village water supply;Desert control;Desalinization of sea water;Scenic fountain etc.
2. Technical specifications of solar pump inverter:
| Model | JNP2K2H | JNP3KH | JNP3K7H | JNP4KH | JNP5K5H | JNP7K5H |
| d.c. Input | ||||||
| d.c. Max .Input Voltage | 880Vdc | |||||
| Recommended MPPT Voltage | 460~850Vdc | |||||
| d.c. Max. Input Current | 5A | 6.9A | 9A | 9A | 12A | 16.3A |
| Max. MPPT Efficiency | 99% | |||||
| Number of String | 2 | 3 | ||||
| a.c. Output | ||||||
| Max. Motor Output Power | 2.2kW | 3.0kW | 3.7kW | 4.0kW | 5.5kW | 7.5kW |
| Rated Output Voltage | 380~460Vac, 3-phase | |||||
| Output Frequency Range | 0~50/60Hz | |||||
| Rated Output Current | 6A | 7A | 9A | 10A | 13A | 18A |
| Mechanical Data | ||||||
| Dimensions(W/H/D) | 265x430x167(mm) | |||||
| Weight | 11.1kg | |||||
| Max. Efficiency | 96% | 97% | 98% | |||
| Protection Class | I | |||||
| Protection Level | IP65 | |||||
| Operating Temperature Range | -25℃ to +60℃,above 60℃ need derate operating | |||||
| Cooling Method | Natural cooling | |||||
| Display | LCD | |||||
| Communication Interface | RS485/GPRS | |||||
| Altitude | 3000m; above 3000m need derate operating | |||||
| Noise Emission | <50dB | |||||
| Compliance | EN 50178; IEC/EN 62109-1; IEC 61800 | |||||

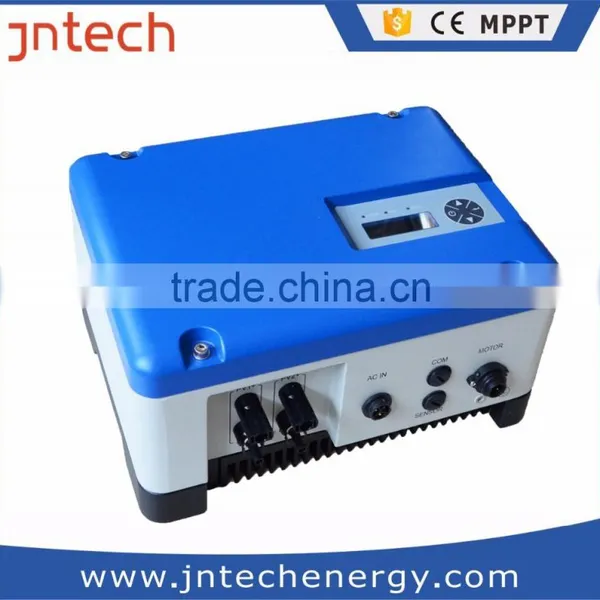

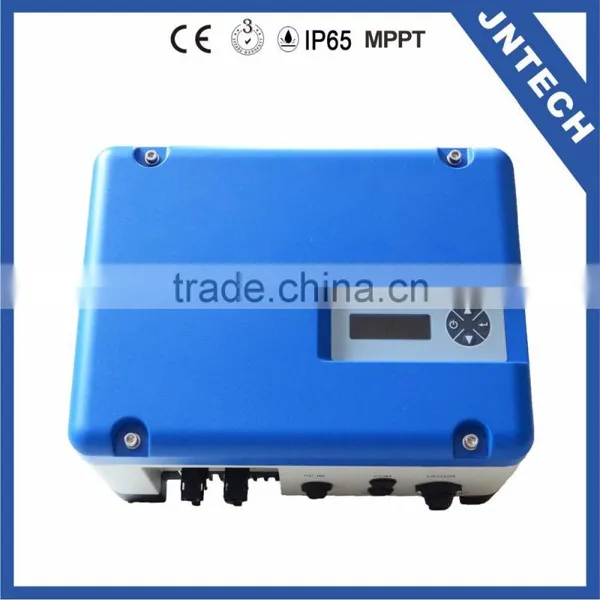

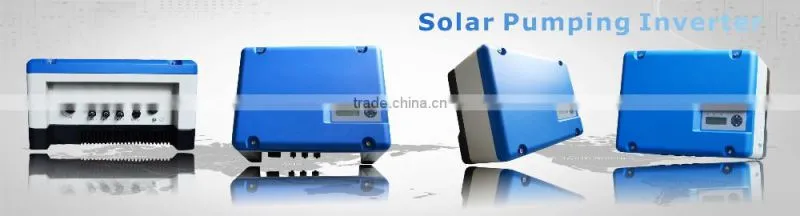

3.Solar Pump Inverter:
4.Features of Solar Pumping System:
1). Reliable solution for agricultural irrigation,daily water,desert control in non-electricity and water deficient area.
2). Wild application with all kinds of PV modules amd 3-phase AC pumps.
3). IP65 for outdoors application.
4). Max. operation temperature 60
5). GPRS remote monitoring for real time operation status and control on/off
6). Excellent performance during cloudy weather with 5% more water output compared to competitors
7). ROI is only less than 2 years compared to diesel generator
8). Full automatic unattended operation with perfect protection functions for long lifespan 25 years
9). 3 years warranty for complete system, 10 years for PV modules

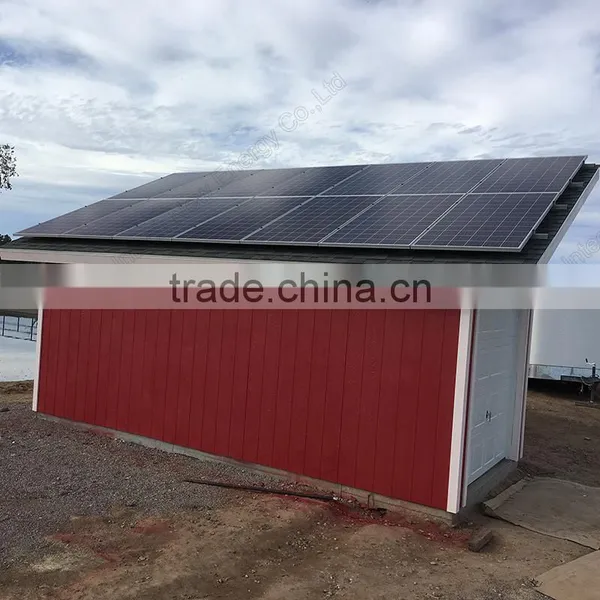

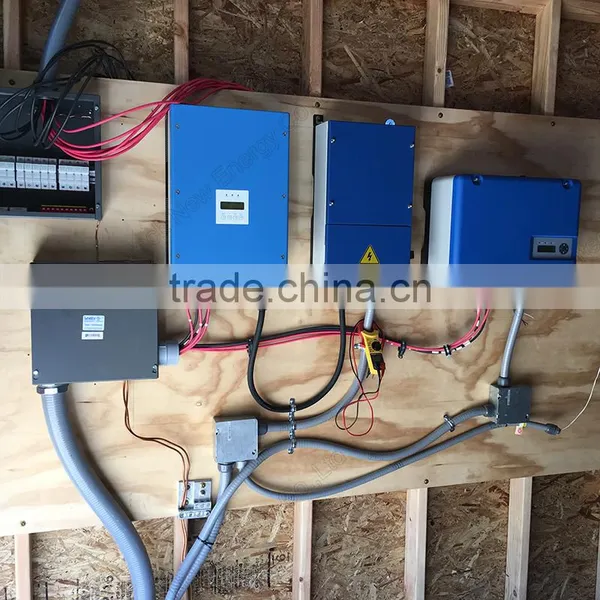

5.Application of Solar Pumping System:

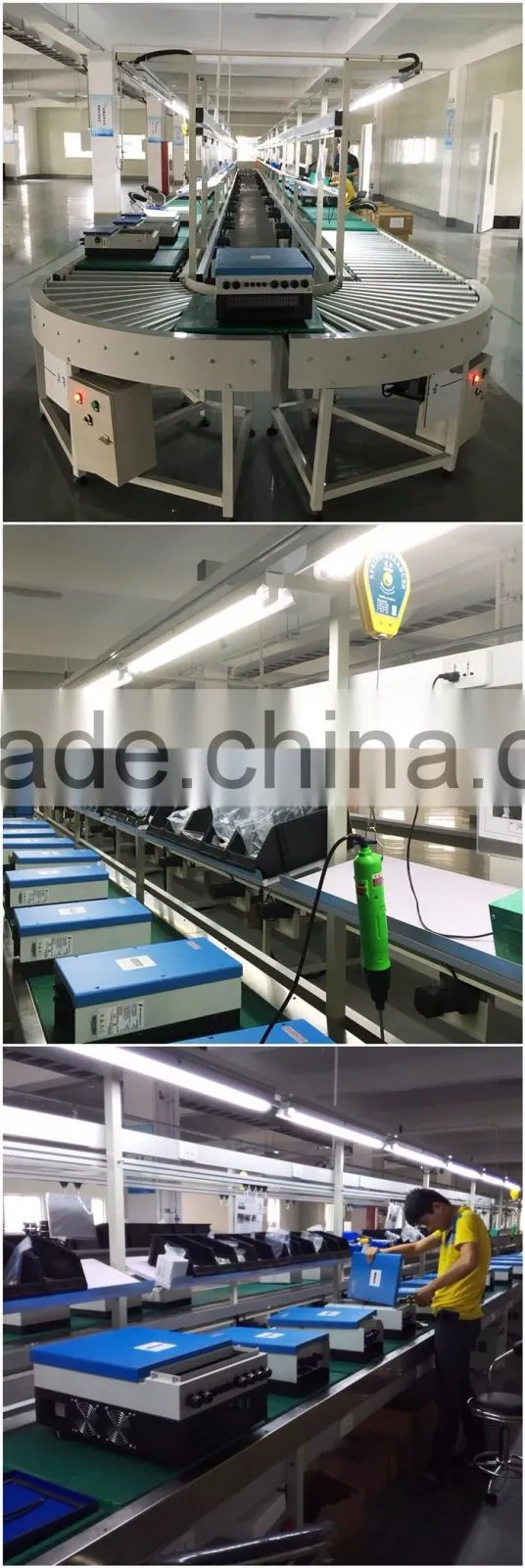

6.Production Processing:
7.Certifications:

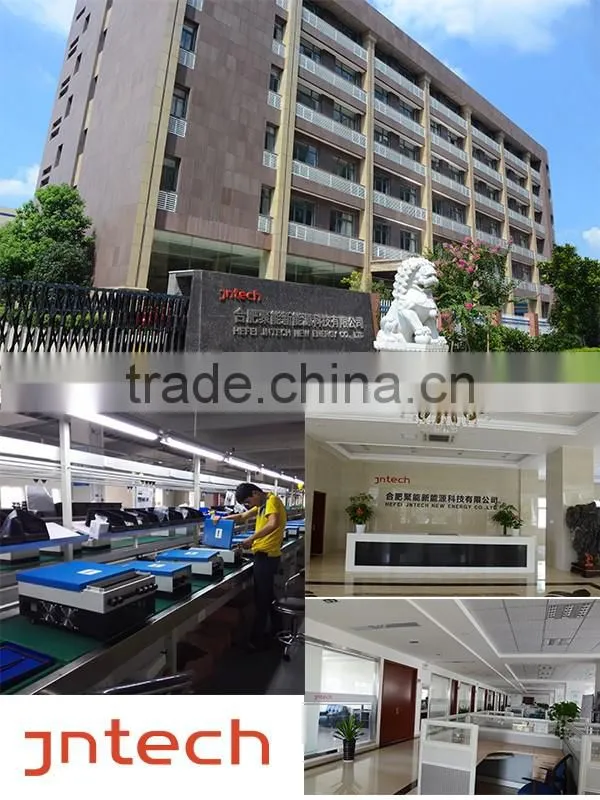

Jntech New Energy technology Co., Ltd was established in 2006. which is an engineer oriented high-tech company with a portfolio of diversified products and services.
Jntech is marketing High Technology Equipment and Solutions in different solar areas. From EPC or BOT(BT) of solar power plant to R & D, manufacturing of key equipment and stand alone system solution provider,
Jntech has come a long way in the past 10years.
Numbers of Jntech:
Registered capital: 100 million RMB
Employee: over 200(50% of R&D and technical engineers)
Total EPC projects: 1000MW(grounded/ rooftop)
Residential off-grid system: 40,000 units(over 20MW)
Solar pumping system: over 2200 projects in 30 countries
Welcome to visit our company!
