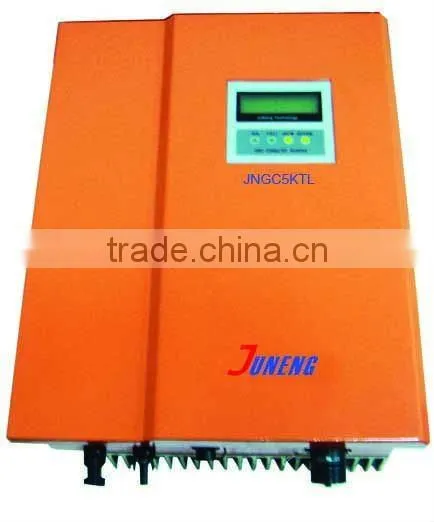

230V Solar Inverter

Name: 230V Solar Inverter
Brand: Juneng
SKU: 140309188
Availability: InStock

US$ 1,040 - 1,041 MOQ: 1 Set

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Juneng

Model Number:

JNGC5KTL

Hefei Jntech New Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Juneng

Model Number JNGC5KTL

Output Power 1 - 200KW

Output Type Single

Size 410 X 550 X 290

Weight 28kg

Input Voltage MPPT320~650V

Output Voltage 230/120V

Type Other, DC/AC Inverters, Solar Grid Connected

Output Frequency 50/60Hz

Output Current 25A

Specifications

230V solar inverter
MPPT >99.9%
System efficiency up to 95%
Transformerless
Wide DC input Voltage design

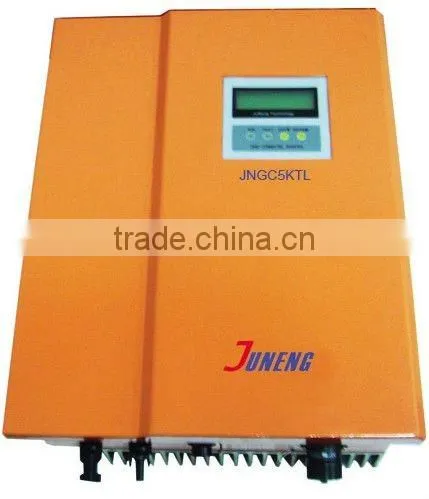

230V Solar inverter

Features

Wide DC input Voltage design

Water proof direct plug in terminals

Technical Specifications

Model	Unit		JNGC5KTL
DC input
Recommended max PV module		kWp	5.5
Max DC voltage		V	780
Start Voltage		V	170
The max array input current		A	20
Number of strings		Pcs	4
MPPT range		V	300-650
MPPT precision		%	99%
DC voltage ripple		%	Vpp<10%
AC Output
Rated Out power		kW	5
Rated grid Voltage		V	230/ 115
Grid voltage range		V	180~265 / 90~130
Rated Grid Frequency		Hz	50/60
Grid frequency range		Hz	47~51.5/57~61.5
Power Factor		%	>0.99
Output current THD (Iac)		%	Total <3% (Rated power)
System
Isolation			Transformerless
Max Efficiency		%	96.5%
Europe standard Efficiency		%	96.0%
Self standby power consumption		W	0
Operation Temperature		°C	-25°C~+55°C
Cooling method			Nature cooling
Environmental humidity		%	0~95%,Non-condensing
Altitude		M	<2000
Island protection time		S	<2
Grid Recover start time		Min	3 < t < 5
Under voltage/frequency protection		S	< 0.2
Noise level		dB	<45dB at 1 meter
Protected			Reverse polarity, shortage, anti islanding, over heat
Communication/Mechanics
Communication interface			Electrical isolation RS485/232
Optional			Ethernet/GPRS
Display			LCD display
Waterproof and Dustproof Class			IP65 (outdoor)
Reference to size		mm	410 X 550 X 290
Weight		Kg	28kg
