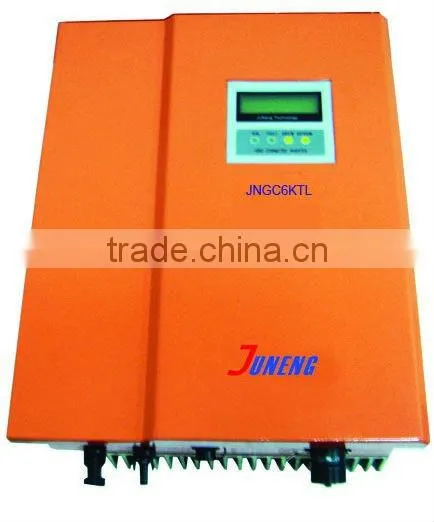

on Grid Inverter

on Grid Inverter thumbnail-1
on Grid Inverter photo-1
US$ 1,256 - 1,257 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Juneng
Model Number:
JNGC6KTL
Contact Supplier Request Quote Chat Now
Hefei Jntech New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name Juneng
Model Number JNGC6KTL
Output Power 1 - 200KW
Output Type Single
Size 461 X 580 X 290
Weight 32kg
Input Voltage MPPT320~650V
Output Voltage 230/120V
Type Other, DC/AC Inverters, Solar Grid Connected
Output Frequency 50/60Hz
Output Current 30A

Specifications

on grid inverter 6kW
MPPT >99.9%
System efficiency up to 95%
Transformerless
Wide DC input Voltage design

on grid inverter 6kW

Features

Fully Professional Protection, Safe and Efficient

DC Voltage ripple Vpp<10%

Working altitude up to 6000 meters

Wide DC input Voltage design

Earthquake Ability 0.2g

Island protection time <2s

Outdoor Design for various working environment

MPPT self-optimizing technology, MPPT efficiency >99.9%

Various types of communication interfaces including RS485 or Ethernet

Man-machine interface LCD displaying, easy setting system working parameters

on grid inverter

Technical Specifications

Model

Unit

JNGC6KTL

DC input



Recommended max PV module

kWp

6.6

Max DC voltage

V

780

Start Voltage

V

170

The max array input current

A

20

Number of strings

Pcs

4

MPPT range

V

320-650

MPPT precision

%

99%

DC voltage ripple

%

Vpp<10%

AC Output



Rated Out power

kW

6

Rated grid Voltage

V

230/ 115

Grid voltage range

V

180~265 / 90~130

Rated Grid  Frequency

Hz

50/60

Grid frequency range

Hz

47~51.5/57~61.5

Power Factor

%

>0.99

Output current  THD (Iac)

%

Total <3% (Rated power)

System



Insolation



Transformerless

Max Effciency

%

96.5%

Europe standard Efficiency

%

96.0%

Contamination Level



IV

Self standby power consumption

W

0

Ambient temperature of using

°C

-25°C~+55°C

Cooling method



Nature cooling

Environmenttal humidity

%

0~95%,Non-condensing

Altitude

M

<2000

Island protection time

S

<2

Grid Recover start time

Min

3 < t < 5

Undervoltage/frequency protection

S

< 0.2

Noise level

dB

<45dB at 1 meter

Protected



Reverse polarity, shortage,antiislanding, over heat

Communication/Mechanics



Communication interface



Electrical isolation RS485/232

Optional



Ethernet/GPRS

Display



LCD display

Waterproof and Dustproof Class



IP65 (outdoor)

Reference to size

mm

460 X 580 X 290

Weight

Kg

32kg



(solar inverter, grid connected inverter, on grid inverter, in grid inverter, grid intertied

inverter,frequency inverter, solar system inverter, LCD inverter, energy inverter, solar

panel inverter,power inverter, SAA inverter, solar cell inverter, solar panel inverter, AC

inverter, battery inverter, solar plant inverter, solar home inverter, transformerless)
