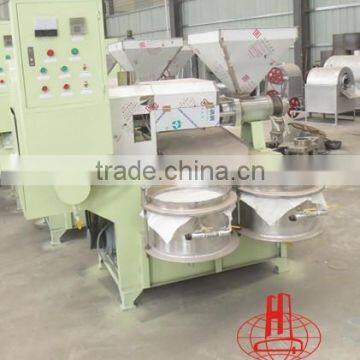

Sesame Hydraulic Oil Expeller With Filter

Sesame Hydraulic Oil Expeller With Filter thumbnail-1
Sesame Hydraulic Oil Expeller With Filter thumbnail-2
Sesame Hydraulic Oil Expeller With Filter photo-1
Sesame Hydraulic Oil Expeller With Filter photo-2
US$ 1,600 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, all kinds of oil crops
Type:
Other, Cold & Hot Pressing Machine
Contact Supplier Request Quote Chat Now
Henan Hao Zhou Import And Export Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao lianyungang shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Other, all kinds of oil crops
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 95%
Place of Origin Henan, China
Brand Name Haozhou
Model Number 6yl-80,6yl-100 etc.
Voltage 220V/380V
Power(W) 5.5kw,7.5kw etc
Dimension(L*W*H) 1500*1200*1750 etc
Weight 880kg,1100kg,1500kg etc
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

The technical application of oil mill efficient intelligent integration is popular in the main oil production areas of the world. The oil mill is widely used in the squeeze of oil crops, such as peanut, soybean, rapeseed, sunflower, flax, walnut, suzi, almond, tea seed, cottonseed, sesame, corn germ,etc.

                                           SPECIFICATIONS FOR SCREW OIL SQUEEZE MACHINE
Model
6yl-60
6yl-70
6yl-80
6yl-100
6yl-125
6yl-130
6yl-150
Voltage
220V
220V
380V
380V
380V
380V
380V
Screw diameter
55mm
65mm
80mm
100mm
125mm
130mm
150mm
Screw speed
52r/min
48r/min
47r/min
38r/min
36r/min
95r/min
95r/min
Motor power
2.2kw
3kw
5.5kw
7.5kw
15kw
15kw
18.5kw
Vacuum pump
0.55kw
0.75kw
1.1kw
1.1kw
1.5kw
1.1kw
1.5kw
Heater power
0.9kw
1.8kw
2kw
2.2kw
2.8kw
1.2kw
1.1kw
Throughput(kg/h)
30-60
50-80
65-130
140-280
300-400
250-400
500-600
Weight
220kg
280kg
780kg
1100kg
1280kg
1380kg
1420kg
Dimension(L/W/H)mm
1200*780*1100
1400*860*1260
1700*1200*1500
1800*1300*1680
2100*1400*1700
2150*1300*1550
2200*1400*1700
       SPECIFICATIONS FOR HYDRAULIC OIL SQUEEZE MACHINE
Model
6yz-150
6yz-180
6yz-230
6yz-260
6yz-320
6yz-360
Motor power
1.1kw
1.5kw
1.5kw
1.5kw
2.2kw
2.2kw
Diameter of cylinder
150mm
180mm
230mm
260mm
320mm
360mm
Throughput
15kg/h
24kg/h
48kg/h
66kg/h
90kg/h
120kg/h
Electric heating ring power
0.6kw
0.7kw
0.8kw
0.9kw
1kw
1.2kw
Max.using work pressure
55mpa
55mpa
55mpa
55mpa
50mpa
50mpa
Weight
250kg
750kg
1050kg
1400kg
1800kg
2000kg
Dimension(L*W*H)mm
390*500*850
500*700*1050
600*910*1360
650*910*1520
800*910*1620
900*950*1660

Main Features

1)Take the helical gear and straight tooth matching design principle, chose the most reasonable gear ratio to maximize energy transfer lossless, achieving efficient, stable, noise reduction transmission effect.

2) In order to further improve the quality of oil and meal, the press bore was successfully upgraded to the multistage press, then once again leading the development direction of oil mill.

3) The oil mill’s round row, worm, strip row cause abrasion under pressure.

4) Automatic temperature control, four seasons squeezing

Detailed Images

Machine Parts

Name: Screw oil press

Brand: Haozhou

Original: China


Main Features

Name: Oil press spare parts
Brand: Haozhou
Original: China

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
as different machines
Weight
as different kind of machines



Packaging Details
The normal package is wooden box.If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
