lifelong machine HZS25 batchplant
Founded in 1985, located in Gongyi, Zhengzhou, Henan, PRC, Henan Haozhou Machinery is a high-tech diversified enterprise concentrating on concrete roof tile making machine, terrazzo tile making machine, terrazzo polishing machine, spacer block machine, paving block machine, brick making machine, briquette coal machine, ball press machine, crusher, dryer, rolling mill, oil presser, carbonization stove, wood charcoal briquette machine, concrete batching plant, etc. On overseas markets, there are mainly the above-mentioned products.
We insists on the customer first, quality oriented policy. Any query you have, please feel free to contact us.

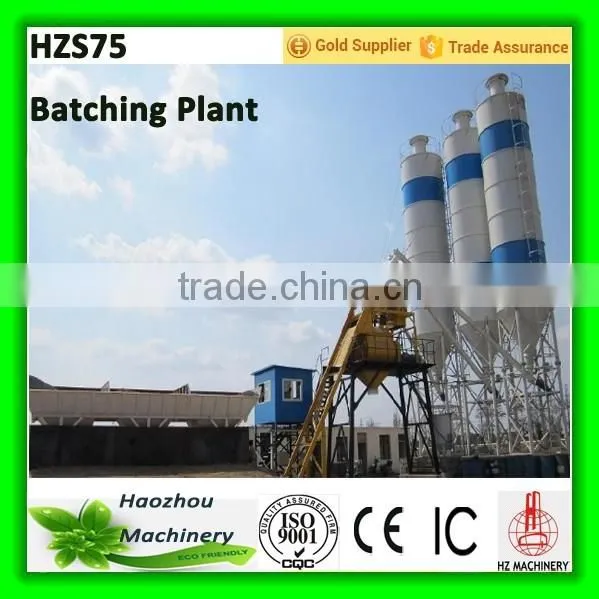

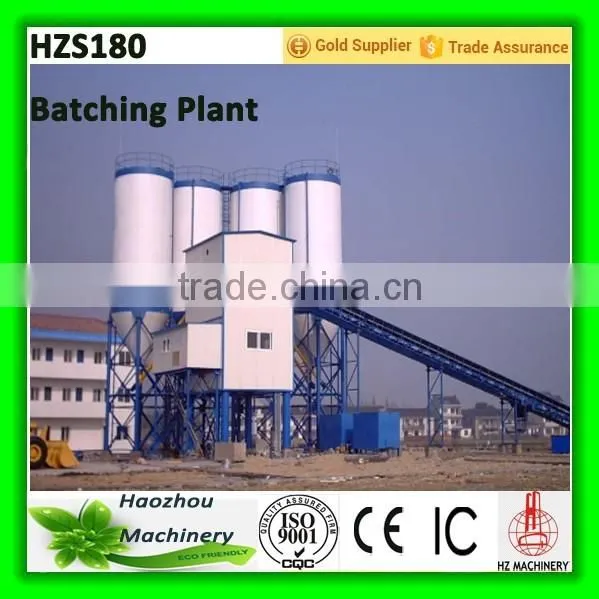

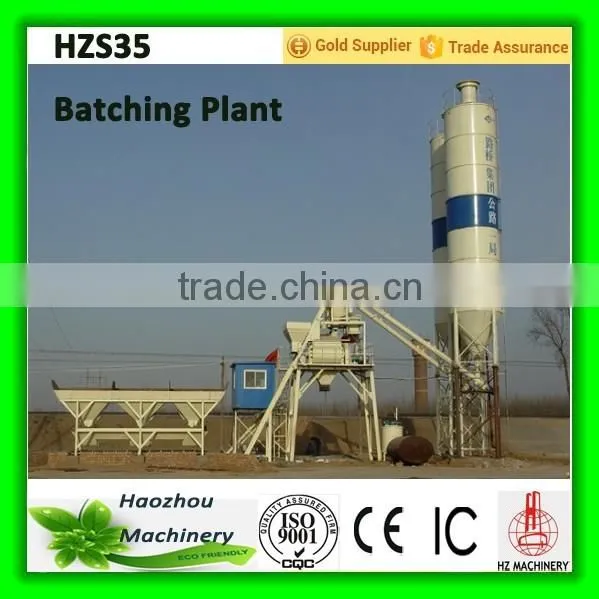

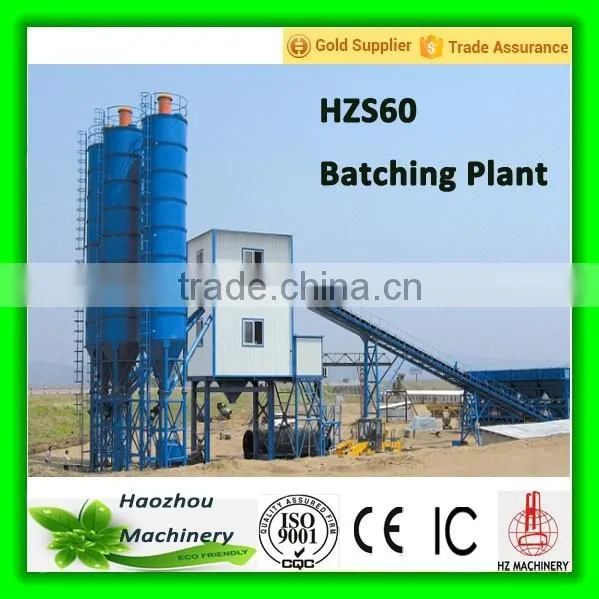

Photo of all models of the concrete batching plants/concrete batchplant:
Raw Material:
It is applicable to mix water, fly ash, cement, sand, and additive, etc.
Drafts for Structure of the cement batch equipment/concrete mixing plant is as follows:
The full-automatic cement batching plant/concrete batchplant mainly includes the following components:
| # | Item |
Quantity (set/piece) |
| 1 | JS500 mixer (3.8 meters material discharging) | 1 |
| 2 | PLD800 three-bin proportioning machine | 1 |
| 3 | screw conveyor | 2 |
| 4 | cement silo | 2 |
| 5 | water measuring system | 1 |
| 6 | powder material measuring system | 1 |
| 7 | additive measuring system | 1 |
| 8 | pneumatic control system | 1 |
| 9 | full-automatic central control system | 1 |
The HZS25 concrete batching plant is one set of automatic concrete batching equipment which consists of parts such as proportioning, mixing, and electrical control. It is applicable to small or medium scale of road, bridge or building construction site, precast element factory, and commercial concrete factory. It is the most advanced innovative, cost-effective and
eco-friendly professional concrete batching equipment by far.
Main technical parameters of the full-automatic cement batch equipment/concrete batch machine are in the following sheet:
| HZS25 Concrete Batching Plant | Unit | Parameter |
| Maximum productivity | m3/h | 25 |
| Nominal capacity of main machine | m3 | 0.5 |
| Maximum weighing value of aggregate scale | kg | 1200 |
| Maximum weighing value of cement scale | kg | 300 |
| Maximum weighing value of water scale | kg | 150 |
| Maximum weighing value of additive scale | kg | 40 |
| Capacity of cement silo | t | 100 |
| Mixing power (JS500) | kW | 18.5 |
| Lifting power | kW | 5.5 |
| Overall power | kW | 60 |
| Overall quality | t | 20 |
| Material discharging height | m | 1.5-4.2 |
| Aggregate measuring accuracy | % | ±2 |
| Water measuring accuracy | % | ±1 |
| Cement measuring accuracy | % | ±1 |
| Additive measuring accuracy | % | ±1 |
| Automatic Cycle | S | 72 |
Our concrete batching plant/concrete batch has the following characteristics:
1) It is low cost, adopts module-based structure and it is very convenient to install and move the whole machine.

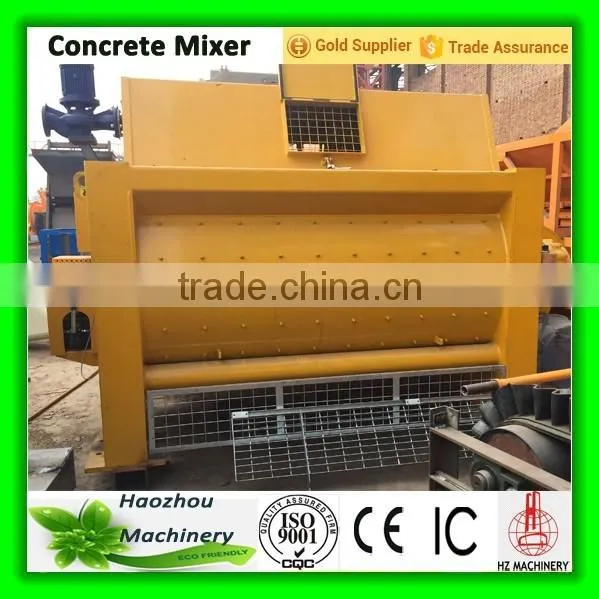

a) The main machine is one JS500 compulsory dual-axial mixer,which has good mixing quality and high efficiency.
b) The aggregate is proportioned by the proportioning machine which is very accurate and fast.
c) The proportioning of the cement, water, liquid additive is done by electronic scale which is with high accuracy.
d) The water supply system adopts the siphon pump pressure principle, which increases the water speed and sprays evenly.
e) Main components of the electrical control system are all imported, which are with reliable performance, easy to operate, and could be printed.
2) It is very convenient to install and disassemble the whole production line. The sides of each storey of external packing can be opened and is easy to maintain and replace components.
Workers and engineers at Henan Haozhou Machinery always pay much attention on details when manufacturing the concrete mixing plants while the details usually decide the smooth running:
