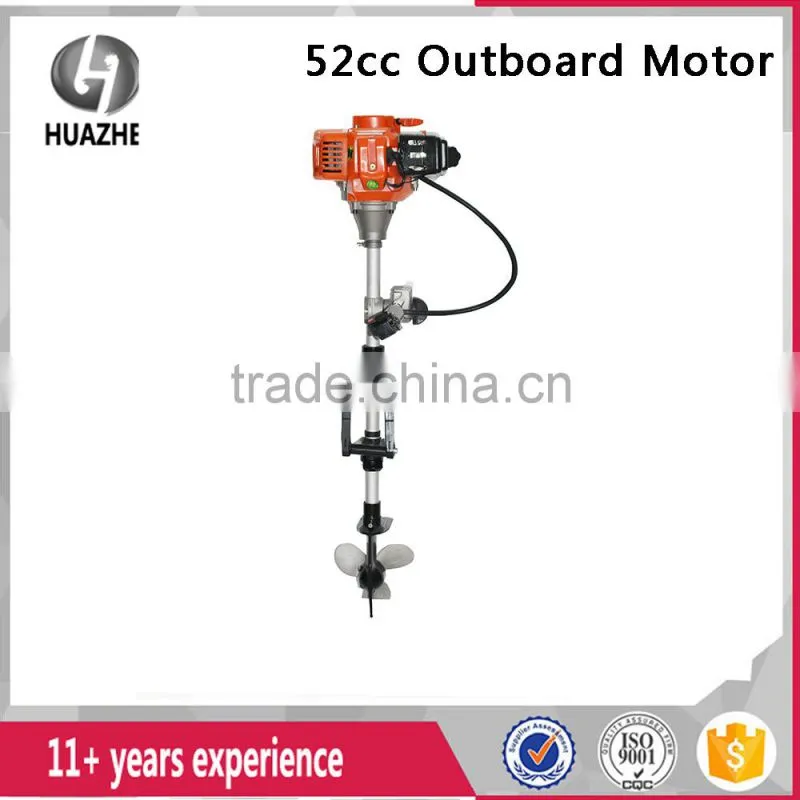

52cc Outboard Motor
Features:
There are two pull starter included in the parcel (one is the machine, another one for spare)
we don't supply wearing parts (pull starter) for free.
Technical Data:
Full throttle perating range: 4000-5000r/min
Maximum output: 2.2kw(3.0HP)
Speed: 20km/h(four people)
Type: 2-stroke
Ignition system: CDI system
Starting system: Manual start
Staring carburetion system: Choke start
Propeller mark: 7-1/45-A(inch)
The engine and the propeller ratio: 2:1
Recommended fuel: Regular unleaded gasoline
Fuel to oil ratio: 30:1
Gear ratio: 27/13
Maximum speed: 10 km / h
Built-in fuel tank: 1.2L
Fuel consumption per hour: 1.5L
When at normal cruising, the appearance of the seventh picture. Falling back the boat,
the appearance of the outboard motor likes the eighth picture . Falling back the boat, you should drive slowly otherwise the boat will not stable. The outboard motor bracket can revolve 360. Only in simple let the engine revolve 180 and the operation handle face back, the boat can fall back to drive.
Announcements:
After in the sea water or turbid water cruising
1.Use the fresh water cleaning the outboard motor
2.With the moderate velocity circulating the engine, cool off the water channel with fresh water.
3. Before completely running out cooling water, don't put the outboard motor outside. Otherwise the water cam pass the exhaust port to enter the air cylinder, from that will cause the engine breakdown.
4. The engine should deposit in the aridity and ventilated well place, avoid exposing directly in the sunshine.
5. Before the long term storing, you should run out of the gasoline in the fuel tank.
