Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs

Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs thumbnail-1
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs thumbnail-2
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs thumbnail-3
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs thumbnail-4
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs photo-1
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs photo-2
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs photo-3
Factory Directselling 2inches Mini Linear Actuator With Potentiometer Feedbacking Stroke 200lbs photo-4
US$ 32 - 100 MOQ: 10 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Huifeng
Model Number:
TGA-DW
Contact Supplier Request Quote Chat Now
Wenzhou Huifeng Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Huifeng
Model Number TGA-DW
Usage Boat, Car, Electric Bicycle, Home Appliance, Other, Boat, Car, Electric Bicycle, Home Appliance, window opener
Certification CE, ROHS
Type Gear Motor
Torque 71.625 Nm
Construction Permanent Magnet
Commutation Brush
Protect Feature Waterproof
Continuous Current(A) 1 A
Output Power 30W
Voltage(V) 12VDC, 24VDC, 36VDC
Efficiency IE 2



Feature:



Model

TGA-DW

Input Voltage

12/24/36 VDC,

Max Load Capacity

900N/ 200ibs

Stroke Length

1 to 40 inches

Speed at No Load

1/8"(3mm/s)  ---- 2”/sec (50mm/s)

Duty Cycle

25%

Temperature Range

-26ºC~65ºC (-15ºF~150ºF)

Limit Switch

Built-in (Factory Preset) Not movable

IP Grade

IP54 / IP65 (dust and splash proof)



Specification:



MODEL

GEAR

LOAD

(N)

NO LOAD SPEED/LOAD SPEED

MM/S

DUTY CYCLE

(%)

MAXIMUM CURRENT(A)

24V

12V

TGA-6







Power Metallurgy



900

6/4

25

2.5

5

TGA-10

750

10/7

25

2.4

4.8

TGA-16

600

16/9

25

2.2

4.4

TGA-20

450

20/14

25

2.0

4.0

TGA-24

350

24/16

25

2.0

4.0

TGA-29

300

29/21

25

2.0

4.0

TGA-40

200

40/23

25

2.0

4.0

TGA-S-6







Engineering Plastic

400

6/5.2

25

1.3

2.6

TGA-S-10

350

10/8.5

25

1.3

2.6

TGA-S-16

300

16/13

25

1.4

2.8

TGA-S-20

250

20/17

25

1.3

2.6

TGA-S-24

200

24/20

25

1.3

2.6

TGA-S-29

150

29/24

25

1.3

2.6

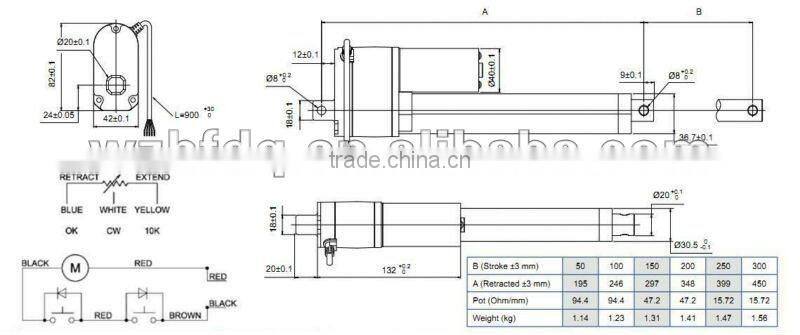

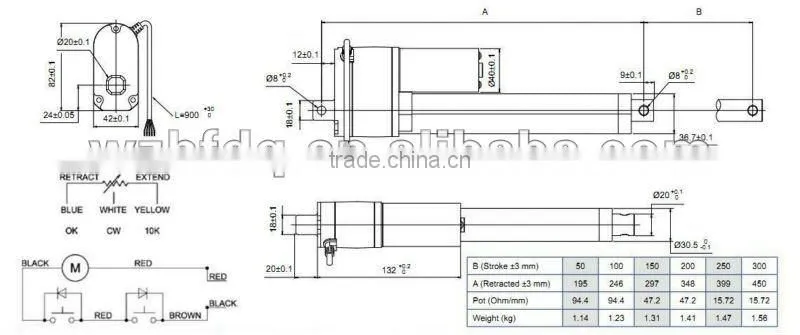

Drawing:



factory directselling 2inches Mini linear actuator with potentiometer feedbacking stroke 200lbs

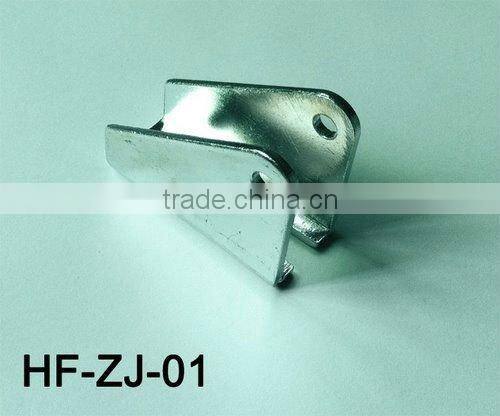

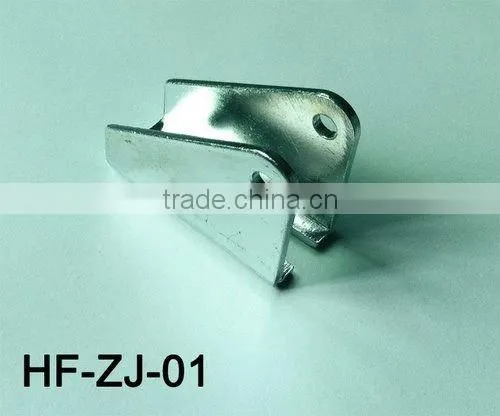

Accessories( optional)



factory directselling 2inches Mini linear actuator with potentiometer feedbacking stroke 200lbs
